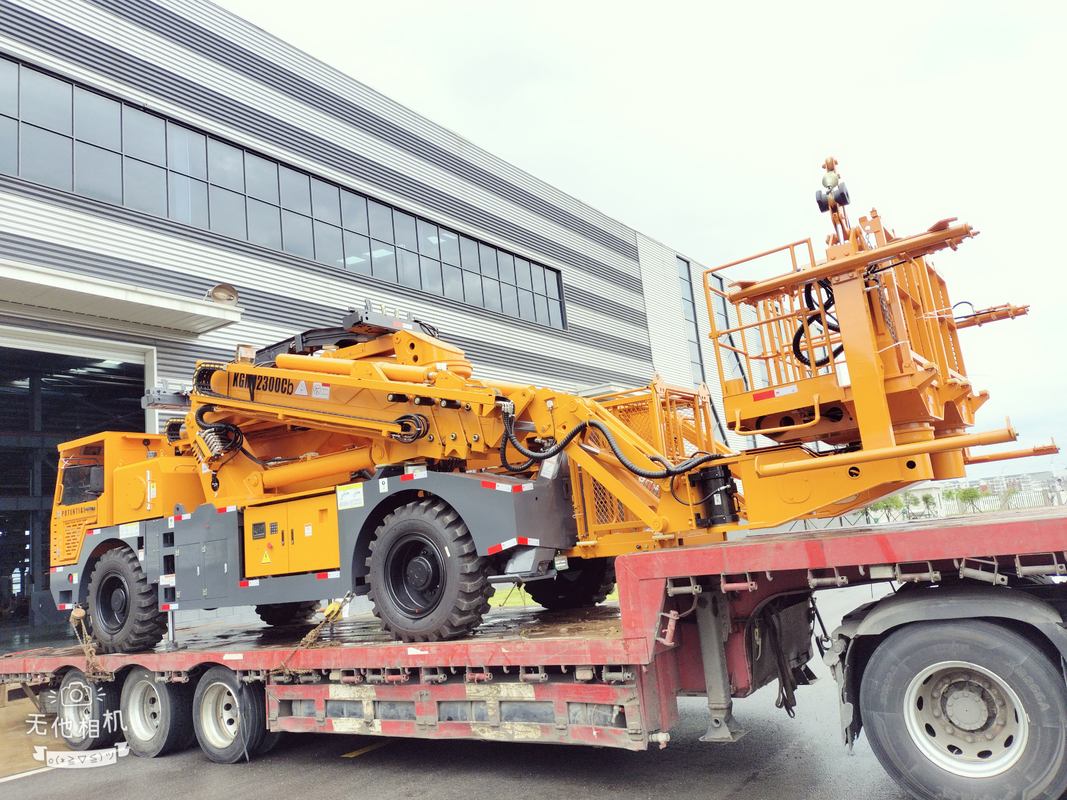

Arch Installation Trolley 3000Kg Load Capacity 9200×2600×3500mm

Breakthrough in Plateau Adaptability: By using turbocharging matching and ECU high-altitude calibration technology, the rated power output can be maintained at an altitude of 4500 meters and in extreme environments ranging from -25℃ to 50℃, with a power attenuation rate of less than 8% (industry average of 15%). The hydraulic system is equipped with a constant power control and oil temperature adaptive adjustment module to solve the problem of starting at low temperatures on high altitudes.

Core Performance Advantages: Full coverage capability of construction methods with a unique folding+telescopic three arm structure, supporting synchronous construction of full section/two step/three step, with a maximum of 6 high-speed railway double track tunnel arches installed per shift (3 traditional equipment).

The 7-degree-of-freedom robotic arm is equipped with a millimeter level laser positioning system, and the arch docking error is controlled within ±3mm. The intelligent homework system integrates CAN bus control system to achieve pre-programming of arm movement trajectory, collision warning, and automatic obstacle avoidance functions. The remote monitoring platform can view equipment operating parameters in real-time, generate 3D construction logs, and support big data analysis of over excavation and under excavation.

Safety and Humanized Design: Multi protection system with the patented folding protective shield (CN222879688U) that can be unfolded within 0.5 seconds to form a 2.5m² anti rockfall area. Mechanical arm hydraulic locking+electrical interlock dual safety prevents fixture failure caused by sudden oil pipe rupture.

Human Machine Engineering Optimization includes wireless remote control with a radius of up to 50 meters that allows operators to stay away from dangerous areas on the palm face. The centralized lubrication system reduces maintenance time by 60% and is equipped with a high-altitude oxygen cabin type cab.

High Altitude Railway Construction: Experience the operation at an elevation of 4300 meters in the Sichuan Tibet Railway project, achieving a monthly progress of arch installation that is 15% ahead of the planned schedule.

Product Application Occasions and Scenarios for the Arch Installation Trolley:

Whether you are a professional event planner, a construction company, or a venue manager, the Arch Installation Trolley by POTENTIAL (Model: KGM12300CSG) is a versatile and essential tool for your arch installation needs. Made in CHINA, this product is ISO9001:2015 certified and offers a wide range of applications for various occasions and scenarios.

• Event Planning: The Arch Installation Trolley is perfect for setting up stunning arches at weddings, corporate events, and other special occasions. Its sturdy construction and dual power capabilities (Diesel & Electric) make it ideal for creating impressive arch structures with ease.
• Construction Projects: Construction companies can benefit from using the Arch Installation Carrier to install archways in buildings, bridges, and other structures. With a maximum load-bearing capacity of 1500Kg on the auxiliary arm, this trolley can handle heavy arch components with precision.

Product Customization Services for the Arch Installation Trolley:

Product Packaging: The Arch Installation Trolley is carefully packed in a sturdy cardboard box to ensure safe transport and delivery. The packaging includes foam padding to protect the trolley from any potential damage during shipping.

Shipping: Orders for the Arch Installation Trolley are processed promptly upon receipt. The trolley is shipped out using a reliable courier service to ensure timely delivery to your specified address. Customers will receive a tracking number to monitor the status of their shipment.
