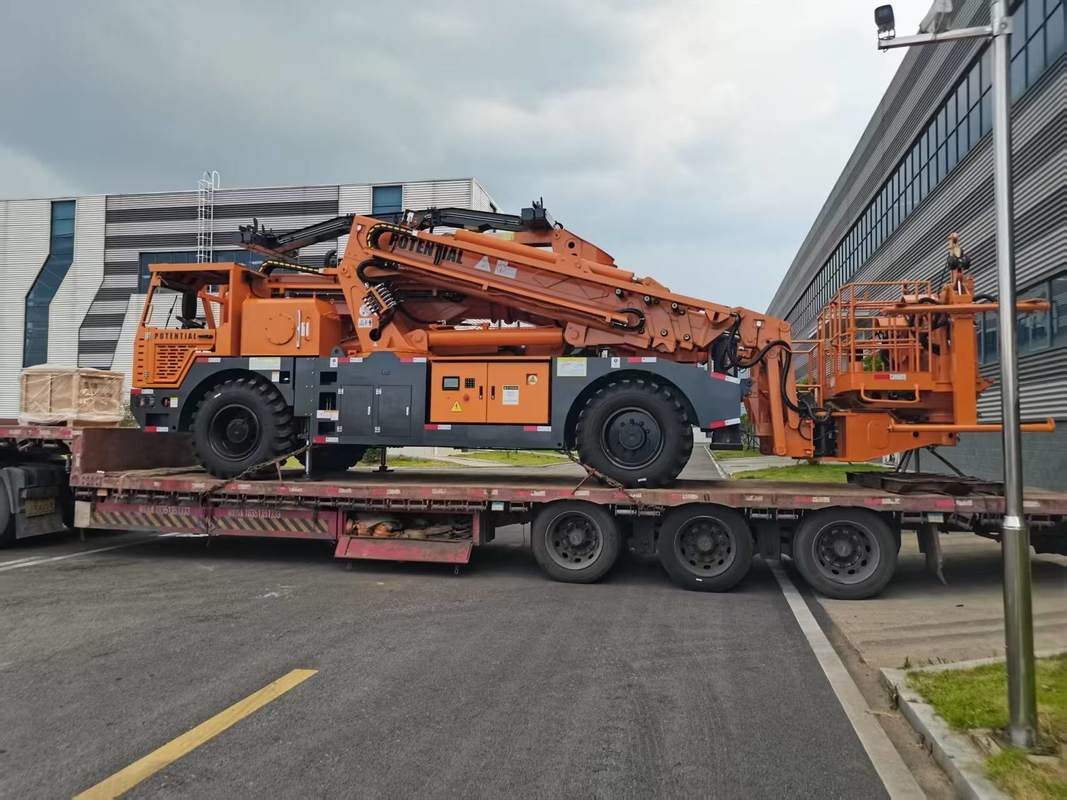

Dual Power Arch Installation Trolley 1500Kg Auxiliary Arm Load Capacity
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | POTENTIAL / POTENCY |
| Certification: | ISO9001:2015 |
| Model Number: | KGM12300CSG |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Unit |
|---|---|
| Price: | Negotiable |
| Packaging Details: | FR or Bulk Ship |
| Delivery Time: | 45 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 120 units per year |
|
Detail Information |
|||
| Min.Operating Width: | 5m | Max.Operating Width: | 25m |
|---|---|---|---|
| Maximum Load-bearing Capacity Of The Main Arm: | 3000Kg | Maximum Load-bearing Capacity Of The Auxiliary Arm: | 1500Kg |
| Transportation Dimension (L X W X H): | 9200×2600×3500mm | Model: | Arch Installation Robot KGM12300CSG |
| Ground Cleareace: | 450mm | Dual Power: | Diesel & Electric |
| Highlight: | Dual power arch installation trolley,1500kg auxiliary arm trolley,Heavy-duty arch installation trolley |
||
Product Description
| Attribute | Value |
|---|---|
| Min. Operating Width | 5m |
| Max. Operating Width | 25m |
| Maximum Load-bearing Capacity (Main Arm) | 3000Kg |
| Maximum Load-bearing Capacity (Auxiliary Arm) | 1500Kg |
| Transportation Dimensions (L × W × H) | 9200×2600×3500mm |
| Model | Arch Installation Robot KGM12300CSG |
| Ground Clearance | 450mm |
| Dual Power | Diesel & Electric |
Dual Power System Innovation: Features hybrid diesel (National III emission standard) and electric (IE3 high-efficiency three-phase asynchronous) power. Power switching response time under 30 seconds. Redundancy design maintains 50% operational capacity during system failures.
Plateau Adaptability: Maintains rated power output at 4500m altitude and extreme temperatures (-25℃ to 50℃) with less than 8% power attenuation. Hydraulic system includes constant power control and oil temperature adaptive adjustment.
Core Performance: Supports full section/two step/three step construction methods. Capable of installing up to 6 high-speed railway double track tunnel arches per shift. Features 7-degree-of-freedom robotic arm with ±3mm precision laser positioning.
Intelligent Operation: CAN bus control system enables pre-programmed arm trajectories, collision warning, and automatic obstacle avoidance. Remote monitoring provides real-time equipment parameters and 3D construction logs.
Safety Features: Patented folding protective shield (CN222879688U) creates 2.5m² anti-rockfall area in 0.5 seconds. Dual safety system with hydraulic locking and electrical interlock. Wireless remote control with 50m range.
- High Altitude Railway Construction: Demonstrated continuous operation at 4300m altitude with 15% progress improvement
- Urban Underground Space: Maintains noise below 65dB for urban environmental compliance
- Emergency Rescue: Ensured 72 hours of uninterrupted operation during tunnel collapse incidents
Customize your Arch Assembly Robot with our comprehensive services:
- Brand: POTENTIAL/POTENCY
- Model: KGM12300CSG
- Certification: ISO9001:2015
- Minimum Order: 1 Unit
- Delivery: 45 working days
- Supply Capacity: 120 units/year
Packaging: Secured in sturdy cardboard with bubble wrap protection.
Shipping: Free shipping within contiguous US. International shipping available with tracking provided.
