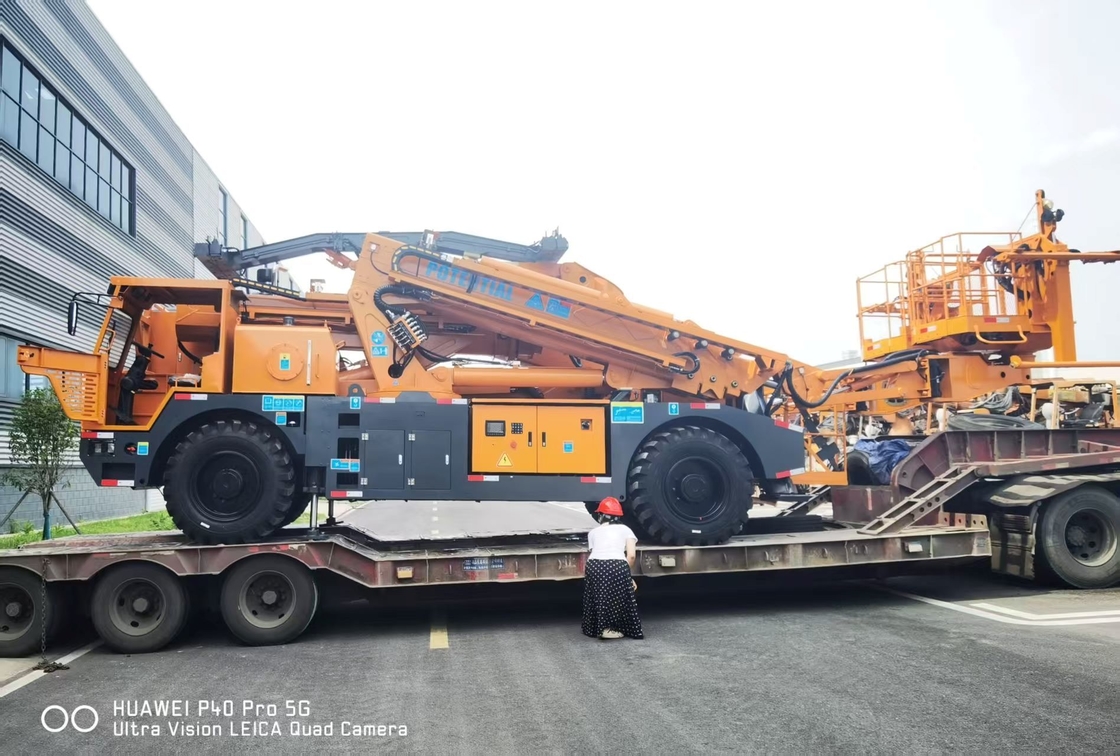

Dual Power Arch Installation Trolley KGM12300CSG 450mm Clearance
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | POTENTIAL / POTENCY |
| Certification: | ISO9001:2015 |
| Model Number: | KGM12300CSG |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Unit |
|---|---|
| Price: | Negotiable |
| Packaging Details: | FR or Bulk Ship |
| Delivery Time: | 45 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 120 units per year |
|
Detail Information |
|||
| Ground Cleareace: | 450mm | Maximum Load-bearing Capacity Of The Auxiliary Arm: | 1500Kg |
|---|---|---|---|
| Min.Operating Width: | 5m | Model: | Arch Installation Robot KGM12300CSG |
| Dual Power: | Diesel & Electric | Maximum Load-bearing Capacity Of The Main Arm: | 3000Kg |
| Transportation Dimension (L X W X H): | 9200×2600×3500mm | Max.Operating Width: | 25m |
| Highlight: | dual power arch trolley,arch installation trolley 450mm clearance,KGM12300CSG installation trolley with warranty |
||
Product Description
| Attribute | Value |
|---|---|
| Ground Clearance | 450mm |
| Maximum Load-bearing Capacity of The Auxiliary Arm | 1500Kg |
| Min.Operating Width | 5m |
| Model | Arch Installation Robot KGM12300CSG |
| Dual Power | Diesel & Electric |
| Maximum Load-bearing Capacity of The Main Arm | 3000Kg |
| Transportation Dimension (L X W X H) | 9200×2600×3500mm |
| Max.Operating Width | 25m |
Dual Power System Innovation
Adopting a hybrid design of diesel and electric power, the equipment features a diesel engine that provides high-intensity operation power in the tunnel (compliant with National III emission standards). Meanwhile, the electric motor (IE3 high-efficiency three-phase asynchronous) meets construction needs in urban areas or enclosed spaces with low noise and zero emissions. The power switching response time is less than 30 seconds.
The dual power redundancy design ensures that the equipment can maintain 50% of its basic operational capacity in case of a single system failure, significantly enhancing the continuity of tunnel construction.
Breakthrough in Plateau Adaptability
By employing turbocharging matching and ECU high-altitude calibration technology, the equipment can maintain rated power output at altitudes of up to 4500 meters and in extreme environments from -25 °C to 50 °C, with a power attenuation rate of less than 8% (compared to the industry average of 15%). The hydraulic system is equipped with a constant power control and oil temperature adaptive adjustment module to tackle starting issues at low temperatures in high altitudes.
Core Performance Advantages
Full Coverage Capability of Construction Methods
The equipment features a unique folding+telescopic three arm structure that supports synchronous construction methods including full section, two-step, and three-step. It can install up to 6 high-speed railway double track tunnel arches per shift (3 times more than traditional equipment). The 7-degree-of-freedom robotic arm comes with a millimeter-level laser positioning system to control arch docking errors within ± 3mm.
Intelligent Homework System
The integration of a CAN bus control system enables pre-programming of arm movement trajectory, collision warning, and automatic obstacle avoidance functions. A remote monitoring platform allows real-time viewing of equipment operating parameters, the creation of 3D construction logs, and supports big data analysis for excavation efficiency.
| Min. Operating Width | 5m |
| Model | Arch Installation Robot KGM12300CSG |
| Dual Power | Diesel & Electric |
| Max. Load-bearing Capacity of The Auxiliary Arm | 1500Kg |
| Transportation Dimension (L X W X H) | 9200×2600×3500mm |
| Ground Clearance | 450mm |
| Max. Load-bearing Capacity of The Main Arm | 3000Kg |
| Max. Operating Width | 25m |
Customers can place orders for this product with a Minimum Order Quantity of 1 Unit, and the price is negotiable based on specific requirements. Packaging Details include options for FR or Bulk Ship, allowing for convenient and secure transportation.
With a Supply Ability of 120 units per year, clients can rely on a steady availability of the Arch Installation Trolley to meet their project demands. The Transportation Dimension of 9200×2600×3500mm ensures compatibility with standard transport methods, facilitating seamless delivery processes within 45 working days.
Payment Terms for the Arch Installation Trolley include T/T and L/C options, providing flexibility for financial transactions. Whether it's for temporary installations or long-term projects, this versatile model offers a reliable and efficient solution for arch construction and assembly tasks.
Product Customization Services for the Arch Installation Trolley:
- Brand Name: POTENTIAL / POTENCY
- Model Number: KGM12300CSG
- Place of Origin: CHINA
- Certification: ISO9001:2015
- Minimum Order Quantity: 1 Unit
- Price: Negotiable
- Packaging Details: FR or Bulk Ship
- Delivery Time: 45 working days
- Payment Terms: T/T, L/C
- Supply Ability: 120 units per year
- Maximum Load-bearing Capacity of The Auxiliary Arm: 1500Kg
- Min.Operating Width: 5m
- Model: Arch Installation Robot KGM12300CSG
- Max.Operating Width: 25m
- Dual Power: Diesel & Electric
Keywords: Arch Assembly Machine for Tunnel, Arch Installation Carrier, Arch Assembly Robot for Tunnel
Product Packaging:
The Arch Installation Trolley is carefully packaged in a sturdy cardboard box to ensure safe delivery. The product is securely cushioned with foam inserts to prevent any damage during transit.
Shipping:
Orders for the Arch Installation Trolley are typically processed and dispatched within 1-2 business days. We offer standard shipping options as well as expedited shipping for faster delivery. Shipping costs may vary based on the destination and selected shipping method.
