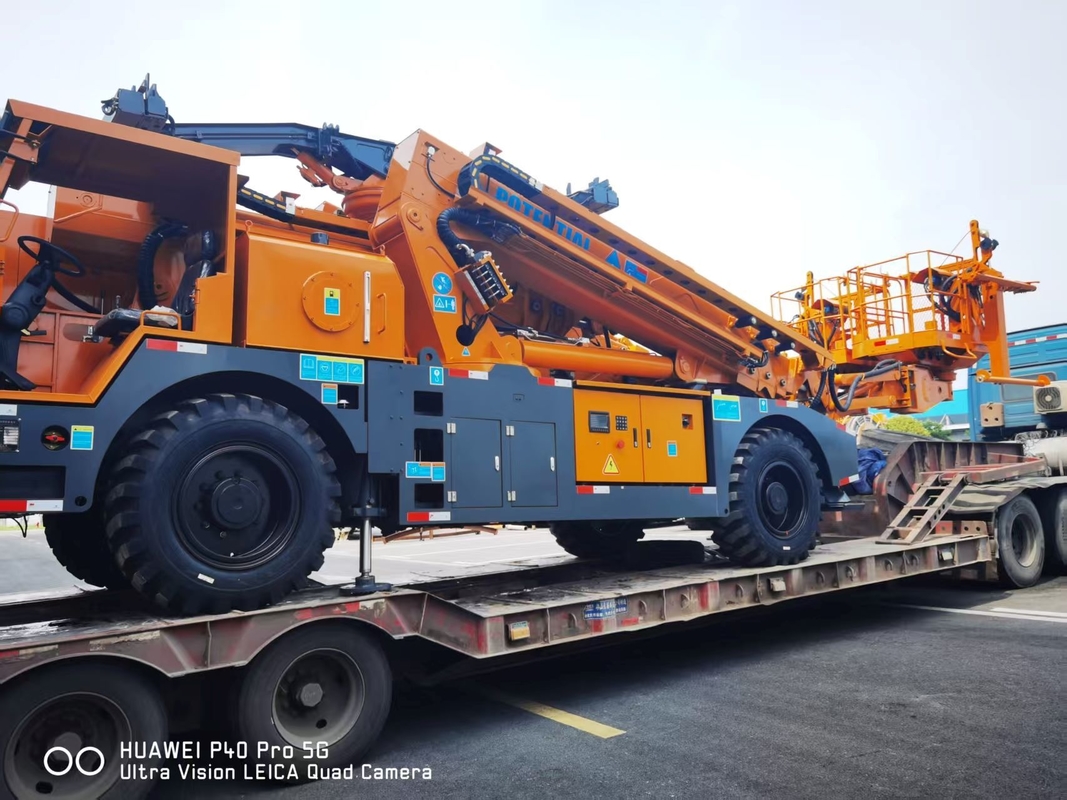

Dual Power Diesel Electric Arch Installation Robot KGM12300CSG
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | POTENTIAL / POTENCY |
| Certification: | ISO9001:2015 |
| Model Number: | KGM12300CSG |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Unit |
|---|---|
| Price: | Negotiable |
| Packaging Details: | FR or Bulk Ship |
| Delivery Time: | 45 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 120 units per year |
|
Detail Information |
|||
| Max.Operating Width: | 25m | Maximum Load-bearing Capacity Of The Auxiliary Arm: | 1500Kg |
|---|---|---|---|
| Ground Cleareace: | 450mm | Model: | Arch Installation Robot KGM12300CSG |
| Dual Power: | Diesel & Electric | Maximum Load-bearing Capacity Of The Main Arm: | 3000Kg |
| Transportation Dimension (L X W X H): | 9200×2600×3500mm | Min.Operating Width: | 5m |
| Highlight: | dual power arch installation robot,diesel electric installation trolley,KGM12300CSG arch robot |
||
Product Description
| Attribute | Value |
|---|---|
| Max. Operating Width | 25m |
| Maximum Load-bearing Capacity of The Auxiliary Arm | 1500Kg |
| Ground Clearance | 450mm |
| Model | Arch Installation Robot KGM12300CSG |
| Dual Power | Diesel & Electric |
| Maximum Load-bearing Capacity of The Main Arm | 3000Kg |
| Transportation Dimension (L × W × H) | 9200×2600×3500mm |
| Min. Operating Width | 5m |
By using turbocharging matching and ECU high-altitude calibration technology, the rated power output can be maintained at an altitude of 4500 meters and in extreme environments ranging from -25℃ to 50℃, with a power attenuation rate of less than 8% (industry average of 15%). The hydraulic system is equipped with a constant power control and oil temperature adaptive adjustment module to solve the problem of starting at low temperatures on high altitudes.
Full coverage capability of construction methods: Unique folding+telescopic three arm structure, supporting synchronous construction of full section/two step/three step, with a maximum of 6 high-speed railway double track tunnel arches installed per shift (3 traditional equipment). The 7-degree-of-freedom robotic arm is equipped with a millimeter level laser positioning system, and the arch docking error is controlled within ±3mm.
Intelligent homework system: Integrate CAN bus control system to achieve pre programming of arm movement trajectory, collision warning, and automatic obstacle avoidance functions. The remote monitoring platform can view equipment operating parameters in real time, generate 3D construction logs, and support big data analysis of over excavation and under excavation.
Multi protection system: The patented folding protective shield (CN222879688U) can be unfolded within 0.5 seconds to form a 2.5m² anti rockfall area. Mechanical arm hydraulic locking+electrical interlock dual safety, preventing fixture failure caused by sudden oil pipe rupture.
Human Machine Engineering Optimization: Wireless remote control with a radius of up to 50 meters allows operators to stay away from dangerous areas on the palm face. The centralized lubrication system reduces maintenance time by 60% and is equipped with a high-altitude oxygen cabin type cab.
- High Altitude Railway Construction: Realizing continuous operation at an altitude of 4300 meters in the Sichuan Tibet Railway project is a remarkable feat. The monthly arch installation progress is currently 15% ahead of schedule, showcasing exceptional efficiency and dedication in the construction process.
- Urban Underground Space: The power mode's implementation in the construction of Shenzhen Metro Line 14 is a significant advancement. Achieving noise control below 65dB is crucial for meeting the environmental protection requirements, especially during nighttime construction activities.
- Emergency Rescue Scenario: The 2024 Gansu tunnel collapse accident highlighted the importance of preparedness and quick response. The dual power system utilized during the incident ensured 72 hours of uninterrupted support operation.
The POTENTIAL / POTENCY Arch Installation Trolley (Model: KGM12300CSG) is a versatile and reliable tool designed for various applications in the construction industry. With its sturdy construction and high load-bearing capacity, this trolley is ideal for a wide range of installation projects related to arches and other structures.
Product Packaging: The Arch Installation Trolley is carefully packed in a sturdy cardboard box to ensure safe transportation. The product is securely wrapped in protective packaging material to prevent any damage during shipping.
Shipping Information: Once your order is confirmed, the Arch Installation Trolley will be dispatched within 1-2 business days. We offer standard shipping options, and delivery times may vary depending on your location. You will receive a tracking number to monitor the status of your shipment.
