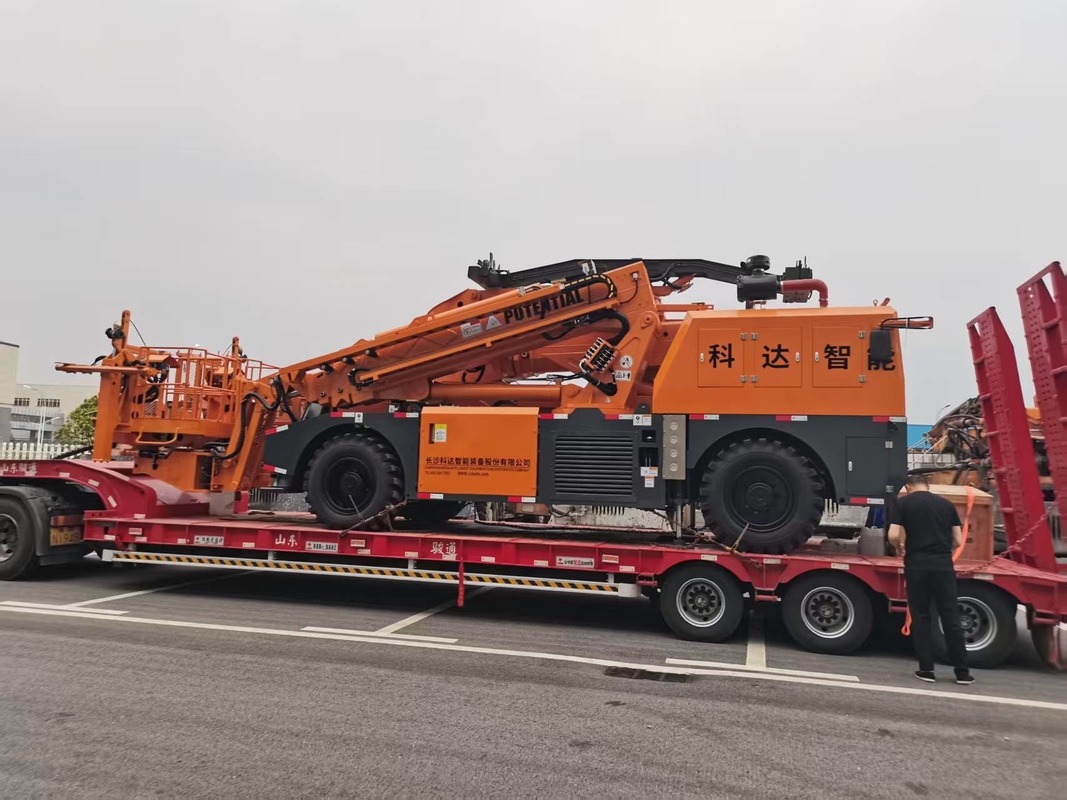

Dual Power Tunnel Arch Installation Robot KGM12300CSG 5-25m
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | POTENTIAL / POTENCY |
| Certification: | ISO9001:2015 |
| Model Number: | KGM12300CSG |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Unit |
|---|---|
| Price: | Negotiable |
| Packaging Details: | FR or Bulk Ship |
| Delivery Time: | 45 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 120 units per year |
|
Detail Information |
|||
| Max.Operating Width: | 25m | Maximum Load-bearing Capacity Of The Main Arm: | 3000Kg |
|---|---|---|---|
| Model: | Arch Installation Robot KGM12300CSG | Min.Operating Width: | 5m |
| Transportation Dimension (L X W X H): | 9200×2600×3500mm | Ground Cleareace: | 450mm |
| Maximum Load-bearing Capacity Of The Auxiliary Arm: | 1500Kg | Dual Power: | Diesel & Electric |
| Highlight: | dual power arch installation robot,tunnel arch installation trolley 5-25m,KGM12300CSG arch robot with warranty |
||
Product Description
Top-Arch Assembly Machine for Tunnel Max.Operating Width 25m Min.Operating Width 5m
Product Specifications
| Attribute | Value |
|---|---|
| Max.Operating Width | 25m |
| Maximum Load-bearing Capacity of The Main Arm | 3000Kg |
| Model | Arch Installation Robot KGM12300CSG |
| Min.Operating Width | 5m |
| Transportation Dimension (L X W X H) | 9200×2600×3500mm |
| Ground Clearance | 450mm |
| Maximum Load-bearing Capacity of The Auxiliary Arm | 1500Kg |
| Dual Power | Diesel & Electric |
Product Description
This advanced Top-Arch Assembly Machine is engineered for tunnel construction with a versatile operating width range from 5m to 25m.
Dual Power System Innovation
Adopting a hybrid design of diesel and electric power, the diesel engine provides high-intensity operation power in the tunnel (according to the National III emission standard), while the electric motor (IE3 high-efficiency three-phase asynchronous) meets the construction needs of urban areas or enclosed spaces with low noise and zero emissions.
- Power switching response time is less than 30 seconds
- Dual power redundancy design ensures 50% of basic operational capacity during single system failure
- Significantly improves continuity of tunnel construction
Breakthrough in Plateau Adaptability
Engineered for extreme environments with advanced technology:
- Maintains rated power output at 4500 meters altitude
- Operates in temperatures from -25℃ to 50℃
- Power attenuation rate less than 8% (industry average 15%)
- Hydraulic system with constant power control and oil temperature adaptive adjustment
Intelligent Homework System
- CAN bus control system for pre-programmed arm movement trajectory
- Collision warning and automatic obstacle avoidance functions
- Remote monitoring platform for real-time equipment parameters
- 3D construction logs and big data analysis capabilities
Safety and Humanized Design
- Patented folding protective shield (CN222879688U) creates 2.5m² anti-rockfall area in 0.5 seconds
- Mechanical arm hydraulic locking + electrical interlock dual safety system
- Wireless remote control with 50 meter radius
- Centralized lubrication system reduces maintenance time by 60%
- High-altitude oxygen cabin type cab
Key Features
Urban Underground Space: Successfully utilized for Shenzhen Metro Line 14 construction with noise levels below 65dB
Emergency Rescue Scenario: Provided 72 hours of uninterrupted support during 2024 Gansu tunnel collapse accident
Technical Parameters
Model: Arch Installation Robot KGM12300CSG
Operating Width Range: 5m (Min) - 25m (Max)
Load Capacity: Main Arm 3000Kg / Auxiliary Arm 1500Kg
Transport Dimensions: 9200×2600×3500mm
Ground Clearance: 450mm
Power System: Diesel & Electric Dual Power
Applications
This versatile Arch Installation Trolley is ideal for:
- Tunnel construction projects
- Urban underground space development
- Emergency rescue operations
- High-altitude construction environments
- Extreme temperature conditions
Customization & Ordering
Packaging: FR or Bulk Ship
Delivery Time: 45 working days
Payment Terms: T/T, L/C
Annual Supply Capacity: 120 units
