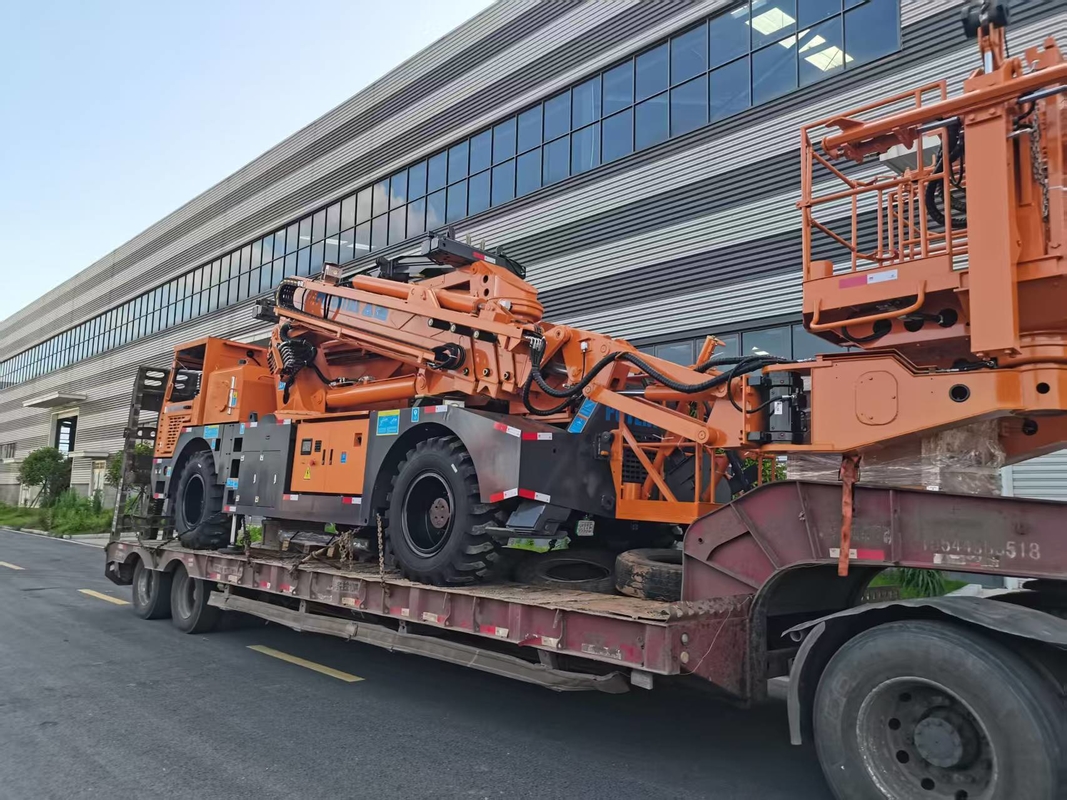

KGM12300CSG Arch Installation Trolley 3000Kg Load 450mm Clearance

Dual Power System Innovation: Adopting a hybrid design of diesel and electric power, the diesel engine provides high-intensity operation power in the tunnel (according to the National III emission standard), while the electric motor (IE3 high-efficiency three-phase asynchronous) meets the construction needs of urban areas or enclosed spaces with low noise and zero emissions. The power switching response time is less than 30 seconds.

The dual power redundancy design ensures that the equipment can maintain 50% of its basic operational capacity in the event of a single system failure, significantly improving the continuity of tunnel construction.

By using turbocharging matching and ECU high-altitude calibration technology, the rated power output can be maintained at an altitude of 4500 meters and in extreme environments ranging from -25 ℃ to 50 ℃, with a power attenuation rate of less than 8% (industry average of 15%). The hydraulic system is equipped with a constant power control and oil temperature adaptive adjustment module to solve the problem of starting at low temperatures on high altitudes.

• The intelligent homework system integrates CAN bus control system to achieve pre-programming of arm movement trajectory, collision warning, and automatic obstacle avoidance functions.
• The remote monitoring platform can view equipment operating parameters in real time, generate 3D construction logs, and support big data analysis of over excavation and under excavation.

• Multi-protection system including the patented folding protective shield (CN222879688U) that can be unfolded within 0.5 seconds to form a 2.5m² anti-rockfall area.
• Mechanical arm hydraulic locking + electrical interlock dual safety prevents fixture failure caused by sudden oil pipe rupture.
• Human Machine Engineering Optimization includes wireless remote control with a radius of up to 50 meters allowing operators to stay away from dangerous areas on the palm face.
• The centralized lubrication system reduces maintenance time by 60% and is equipped with a high-altitude oxygen cabin type cab.

The POTENTIAL / POTENCY Arch Installation Trolley (Model: KGM12300CSG) is a versatile and efficient tool designed for the installation of arches in various construction projects.

• Arch Assembly Robot for Tunnel: Ideal for tunnel construction projects where arches need to be precisely installed.
• Arch Installation Trolley: Suitable for road tunnels, railway tunnels, and other underground structures.
• Arch Installation Carrier: Smooth movement on uneven surfaces with 450mm ground clearance.

• Brand Name: POTENTIAL / POTENCY
• Model Number: KGM12300CSG
• Place of Origin: CHINA
• Certification: ISO9001:2015
• Minimum Order Quantity: 1 Unit
• Price: Negotiable
• Packaging Details: FR or Bulk Ship
• Delivery Time: 45 working days

The Arch Installation Trolley will be carefully packaged in a sturdy cardboard box to ensure its safe delivery. The trolley will be securely wrapped in bubble wrap to prevent any damage during transit.

Once your order is confirmed, the Arch Installation Trolley will be shipped out within 1-2 business days. We offer standard shipping options as well as expedited shipping for faster delivery. You will receive a tracking number once the trolley has been dispatched.
