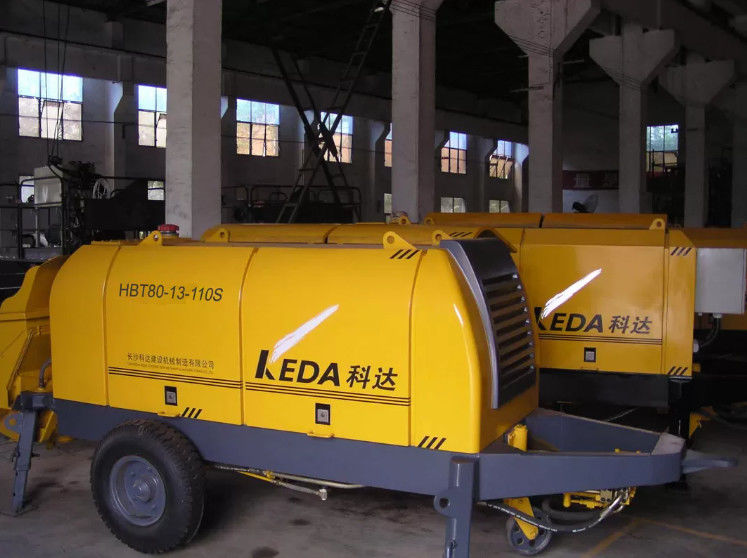

Electric Motor Powered Trailer Concrete Pump HBT80.13.110S 130 Bar

Electric Motor Powered Trailer Concrete Pump HBT80.13.110S 130 Bar

Product Details:

Place of Origin: CHINA
Brand Name: POTENTIAL / POTENCY
Certification: ISO9001:2015
Model Number: HBT80.13.110S

Payment & Shipping Terms:

Minimum Order Quantity: 1 Unit
Price: Negotiable
Packaging Details: 1 unit in 1*40'HQ
Delivery Time: 20 working days
Payment Terms: T/T, L/C
Supply Ability: 180 units per year
Get Best Price Contact Now

Detail Information
Main Hydraulic Pumps: Rexroth / Kawasaki Products Application: Concrete Pump
Usage: Construction Hydraulic System Pressure: 13MPa
Power Type: Electric Motor Main Electric Elements: Omron / Schneider
High And Low Pressure Conversion: Large Discharge At Low Pressure And Small Discharge At High Pressure Distribution Valve Type: S Valve
Highlight:

Electric Concrete Pump

,

Concrete Pump 130 Bar

Product Description

Electric-hydraulic Type HBT80.13.110S With Motor Power



HBT80.13.110S Stationary Concrete Pump, static concrete pump with motor power

Features

■ Main Hydraulic Pumps are Rexroth products.

■ The high and low pressure conversion of the outlet pressure can achieve large discharge at low pressure and small discharge at high pressure.

■The open loop of the hydraulic system is air cooled to keep the oil temperature under general conditions so as to ensure the stability of the system.

■ The reversing control is electric-hydraulic type.

■ Main electric elements are Omron and Schneider

■ The counterforce on specially designed “S” valve is received by hopper wall to assure the service life of goggle plate and cutting ring.



Specifications



Models HBT60.13.90S
motor		 HBT60.16.110S
motor		 HBT80.13.110S
motor
Max theory concrete output (m3/h) 66/40 67/44 80/40
concrete pumping pressure(High/Low) MPa 13/7 16/11 13/6
concrete cylinder diameter * stroke(mm) Φ200*1600 Φ200*1600 Φ200*1600
Power (KW) 90 110 110
Rated speed (rpm) 1400 1400 1400
Hopper capacity (L) 800 800 800
Filling height on supports (mm) 1400 1400 1400
Max. theory delivery distance
(horizontal height) (m)		 1200 1500 1200
Max theory delivery distance
(vertical height) (m)		 270 350 270
Oil Tank (L) 500 500 500
Overall dim. (mm) 6000*2160*2300 6000*2160*2300 6000*2160*2300
Total weight (Kg) 6000 6150 6150
