Electric / Diesel Concrete Shotcrete Robot Wireless Remote Control For Tunnel
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | KEDA / POTENCY |
| Certification: | ISO9001:2015 |
| Model Number: | KS80+KP25 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Unit |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 1 Unit in 1*40'HQ |
| Delivery Time: | 45 Working Days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 180 Units Per Year |
|
Detail Information |
|||
| Power Type: | Electric/Diesel | Max. Horizontal Conveying Distance: | 150m |
|---|---|---|---|
| Travelling Speed(km/h): | 2.2/4.4 | Application: | Concrete Spraying, Slope Protection, Tunnel Construction, Mining Support, Etc. |
| Model: | KS80+KP25 | Traveling Mode: | Crawler |
| Max.spary Area: | Upward 8.5m | ||
| Highlight: | Diesel Concrete Shotcrete Robot,Electric Concrete Shotcrete Robot |
||
Product Description

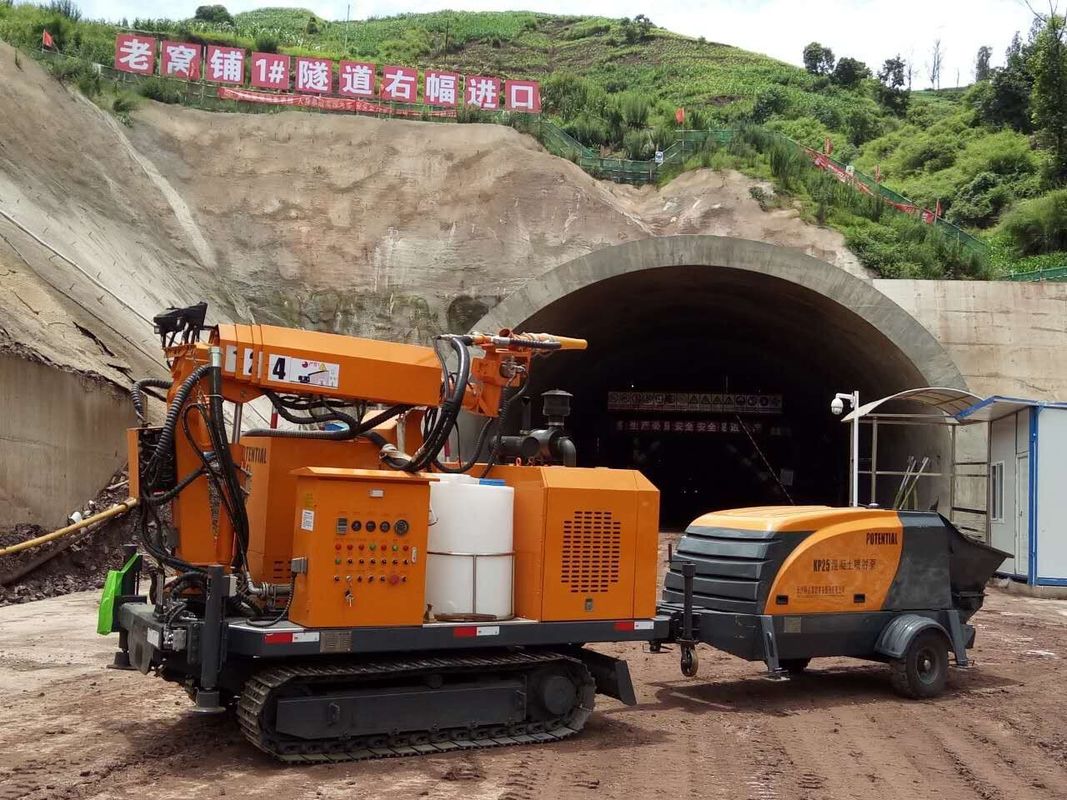

KS80+KP25 Robotic Shotcrete Machine, Concrete Spraying System, Wireless Remote Control
Applications

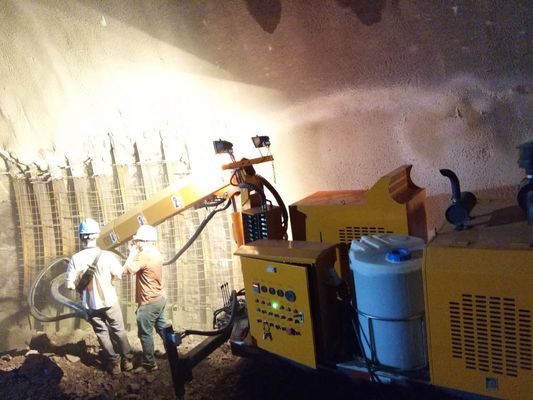

Widely used in concrete spraying projects of small working sections and staged excavation tunnel, such as railway tunnel, road tunnel, culvert, diversion tunnel of hydropower station, subway and other underground projects.
Features
1, 4 telescopic boom, that makes it more suitable for multi-layer excavation in tunnel condition.
2, Electro-hydraulic power group provides shotcrete operation, max. output reach to 25 cubic meter per hour.
3, Diesel drive system provides force to traveling or arm's activity.
4, Crawer chassis, equipped with two unfording hydraulic outrigger leg to maintain the level of machine when it climbs slope.
5, Wireless remote control.
Specifications
| No. | Item | KS80+KP25 | ||
| 1 | Complete machine |
Weight(T) | 4.6+2.15 | |
| Travelling speed(km/h) | 2.2/4.4 | |||
| Grade ability(°) | 30 | |||
| Approach/departure angle(°) | 25/25 | |||
| Ground clearance(mm) | 205 | |||
| Steering | motor driving/pivot steering | |||
| Traveling mode | crawler | |||
| Outside dimension(L×W×H)(mm) | 3400×1600×2500+ 3800×1500×1600 |
|||
| 2 | Motor | Rated Power(kW/rpm) | 7.5 | |
| Rated voltage(V) | three-phase/380(optional) | |||
| 3 | Engine | Mode | 4 cylinder liquid-cooled diesel engine | |
| Rated power(kW/rpm) | 33/2200 | |||
| Diesel tank volumn (L) | 80 | |||
| 4 | Air compressor | Mode | / | |
| Rated Power((kW) | /(outsourcing) | |||
| Max.wind flow(m³/min ) | ＞10 (required inlet flow) | |||
| Exhaust pressure(MPa) | ＞0.5(required inlet pressure) | |||
| 5 | Shotcrete Boom | Boom mode | rotate + telescopic | |
| Max.spary area | Upward(m) | 8.5 | ||
| Forward(m) | 7 | |||
| Downward(m) | 3.3 | |||
| Width(m) | 14 | |||
| Min.spary area | Upward(m) | 3 | ||
| Forward(m) | 2 | |||
| Downward(m) | 0 | |||
| Width(m) | 2 | |||
| Main boom rotate angle(°) | 270 | |||
| Main boom tilt angle(up/down)(°) | / | |||
| Main boom telescopic length(mm) | / | |||
| Telescopic boom rotate angle(°) | / | |||
| Telescopic boom tilt angle(up/down)(°) | 60/43 | |||
| Telescopic boom stretch length(mm) | 1950 | |||
| Nozzle rotate(°) | 360 | |||
| Nozzle swing (°) | 240 | |||
| Nozzle brush(°) | 360continuous | |||
| Nozzle diameter(°) | 80 | |||
| 6 | Additive system |
Flow rate(L/h) | 60～600 | |
| Working pressure(MPa) | 1.2 | |||
| Tank volumn(L) | 200 | |||
| Suction length(m) | 3m | |||
| Motor rated power(kW) | 1.5 | |||
| 7 | Cleaning System | Flow rate(L/min) | 14 | |
| Working pressure(MPa) | 14 | |||
| Motor rated power(kW) | 4 | |||
| 8 | Electric System | Operate mode | wireless romote control | |
| Control mode | PLC + touchscreen display | |||
| 9 | Cable Reel | Cable length(m) | 80 | |
| Power Source(V/Hz) | 380/50(optional) | |||
| Electric current(A) | 400 | |||
