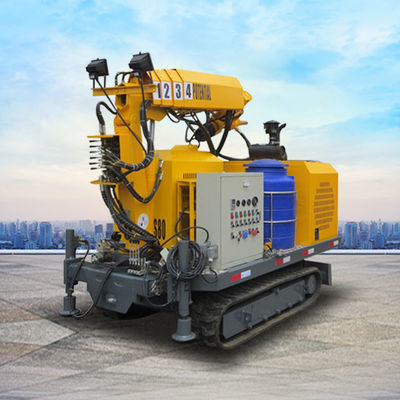

14 MPa Working Pressure Robotic Shotcrete Machine 2.2km/h / 4.4km/h Travelling Speed

Product Description:

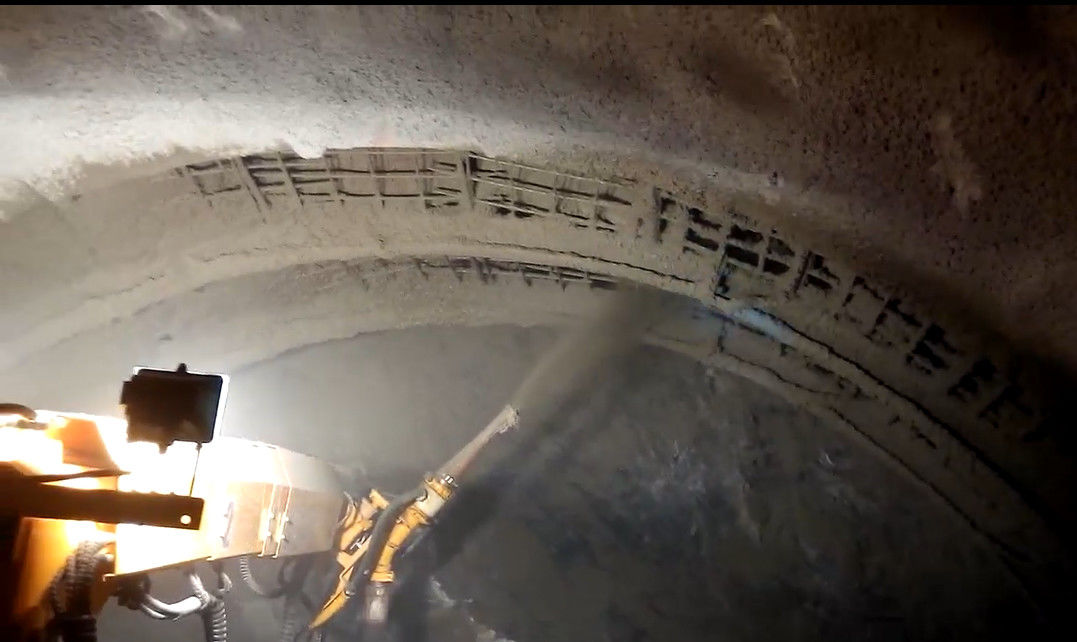

The application of concrete spraying technology has been widely adopted in various construction projects, particularly those involving small working sections and staged excavation tunnels. This technology finds its extensive use in railway tunnels, road tunnels, culverts, diversion tunnels of hydropower stations, subways, and other underground projects.

For the construction of such projects, concrete spraying plays an important role in ensuring the stability and safety of the structures involved. The technology is applied to avoid the dangers of accidental collapse of the tunnel structures and to provide an efficient method of constructing the tunnels.

The use of concrete spraying technology also allows for a faster construction process and reduces the amount of equipment and labor required. With its benefits, this technology is rapidly becoming a popular choice for constructors and engineers in the construction industry worldwide.

Features:

The machine is equipped with four telescopic booms, which makes it ideal for multi-layer excavation in tunnel conditions. The telescopic booms allow for greater reach and flexibility, making it easier to work in tight spaces and navigate around obstacles.

An electro-hydraulic power group is used to provide shotcrete operation, allowing the machine to output up to 25 cubic meters per hour. This powerful system helps to ensure that the excavation work is completed quickly and efficiently.

The machine is powered by a diesel drive system, which provides the necessary force for traveling or arm's activity. This reliable system ensures that the machine can operate consistently, even in challenging environments.

The machine features a crawler chassis, equipped with two unfolding hydraulic outrigger legs to maintain the level of the machine when climbing slopes. This feature ensures that the machine can maintain its stability and maneuverability even on steep inclines.

The machine can be operated wirelessly using a remote control. This allows for greater flexibility and ease of use, as the operator can control the machine from a distance and avoid having to navigate complex terrain on foot.

Technical Parameters:

• Weight(T): 4.6+2.15
• Travelling speed(km/h): 2.2/4.4
• Grade ability(°): 30
• Approach/departure angle(°): 25/25
• Ground clearance(mm): 205
• Steering: motor driving/pivot steering
• Traveling mode: crawler
• Outside dimension(L×W×H)(mm): 3400×1600×2500+3800×1500×1600

• Rated Power(kW/rpm): 7.5
• Rated voltage(V): three-phase/380(optional)

• Mode: 4 cylinder liquid-cooled diesel engine
• Rated power(kW/rpm): 33/2200
• Diesel tank volumn (L): 80

• Mode: /
• Rated Power((kW): /(outsourcing)
• Max.wind flow(m³/min): >10 (required inlet flow)
• Exhaust pressure(MPa): >0.5(required inlet pressure)

• Boom mode: rotate + telescopic
• Max.spary area Upward(m): 8.5
• Forward(m): 7
• Downward(m): 3.3
• Width(m): 14
• Min.spary area Upward(m): 3
• Forward(m): 2
• Downward(m): 0
• Width(m): 2
• Main boom rotate angle(°): 270
• Telescopic boom tilt angle(up/down)(°): 60/43
• Telescopic boom stretch length(mm): 1950
• Nozzle rotate(°): 360
• Nozzle swing (°): 240
• Nozzle brush(°): 360continuous
• Nozzle diameter(°): 80

• Flow rate(L/h): 60～600
• Working pressure(MPa): 1.2
• Tank volumn(L): 200
• Suction length(m): 3m
• Motor rated power(kW): 1.5

• Flow rate(L/min): 14
• Working pressure(MPa): 14
• Motor rated power(kW): 4

• Operate mode: wireless romote control
• Control mode: PLC + touchscreen display

• Cable length(m): 80
• Power Source(V/Hz): 380/50(optional)
• Electric current(A): 400

Applications:

As a result of its high-quality construction and superior design, the KS80+KP25 is an excellent choice for both indoor and outdoor applications. It is an ideal option for use in construction projects, mining operations, and tunneling applications. With its powerful electric motor and diesel engine, this machine is capable of producing high-quality concrete quickly and efficiently.

The KS80+KP25 is designed to work at a working pressure of 14 MPa. This means that it is capable of producing concrete that is of the highest quality. It is also capable of traveling at speeds of up to 2.2/4.4km/h, making it an ideal choice for applications where time is of the essence. Additionally, the machine is equipped with a powerful diesel engine that provides the power needed for traveling.

As a result of its high-quality construction and superior design, the KS80+KP25 is an excellent choice for a wide range of applications. Whether you need to apply concrete to a large surface area or you need to complete a smaller job, this machine is an excellent choice. It is also certified to ISO9001:2015, ensuring that it meets the highest standards of quality and reliability.

The minimum order quantity for this machine is 1 unit, and the price is negotiable. Packaging details include 1 unit in 1*40'HQ, and delivery time is 45 working days. Payment terms include T/T and L/C, and the supply ability is 180 units per year.

In conclusion, if you are looking for a high-quality, efficient, and reliable robotic shotcrete machine, the POTENTIAL / POTENCY KS80+KP25 is an excellent choice. With its automatic wet shotcrete machine, powerful electric motor and diesel engine, and superior design, this machine is an ideal option for a wide range of applications. Whether you need to apply concrete to a large surface area or you need to complete a smaller job, this machine is an excellent choice.

Customization:

Our Potency KS80+KP25 Robotic Cement Spraying Equipment is the perfect solution for your construction needs. With its advanced features and cutting-edge technology, this Robotic Sprayed Concrete Machine is designed to simplify the process of concrete spraying, making it faster and more efficient than ever before.

Our Robotic Concrete Sprayer is made in China and comes with ISO9001:2015 certification, ensuring that you receive a high-quality product that meets international standards. We have a minimum order quantity of 1 Unit and our prices are negotiable, making it easy for you to get the best deal possible.

The Potency KS80+KP25 Robotic Cement Spraying Equipment comes packaged in 1*40'HQ and has a delivery time of 45 working days. We accept payment through T/T or L/C and have a supply ability of 180 units per year.

Our Robotic Sprayed Concrete Machine has a Model Number of KS80+KP25 and is powered by both an electric motor and diesel engine. The power for traveling comes from the diesel engine, which gives it a traveling speed of 2.2/4.4km/h. It operates on a crawler traveling mode, making it easy to move around construction sites.
