Travelling Speed 2.2 / 4.4km/h Robotic Shotcrete Machine Electric Motor Diesel Engine
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | POTENTIAL / POTENCY |
| Certification: | ISO9001:2015 |
| Model Number: | KS80+KP25 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Unit |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 1 Unit in 1*40'HQ |
| Delivery Time: | 45 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 180 units per year |
|
Detail Information |
|||
| Power: | Elelctric Motor And Diesel Engine | Item: | KS80+KP25 |
|---|---|---|---|
| Working Pressure: | 14 MPa | Power Of Working: | Motor |
| Travelling Speed: | 2.2/4.4km/h | Max Output: | 25 Cubic Meters Per Hour |
| Powr For Traveling: | Diesel | Traveling Mode: | Crawler |
| Highlight: | 4.4km/h Robotic Shotcrete Machine,2.2km/h Robotic Shotcrete Machine |
||
Product Description

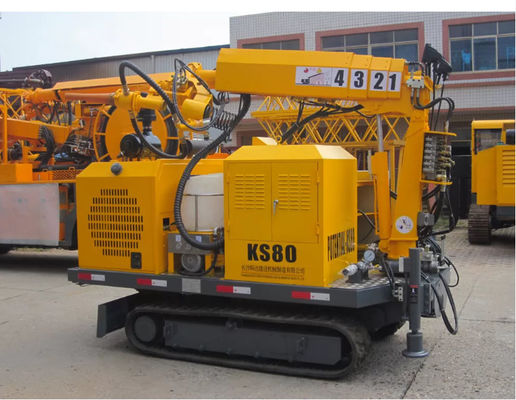

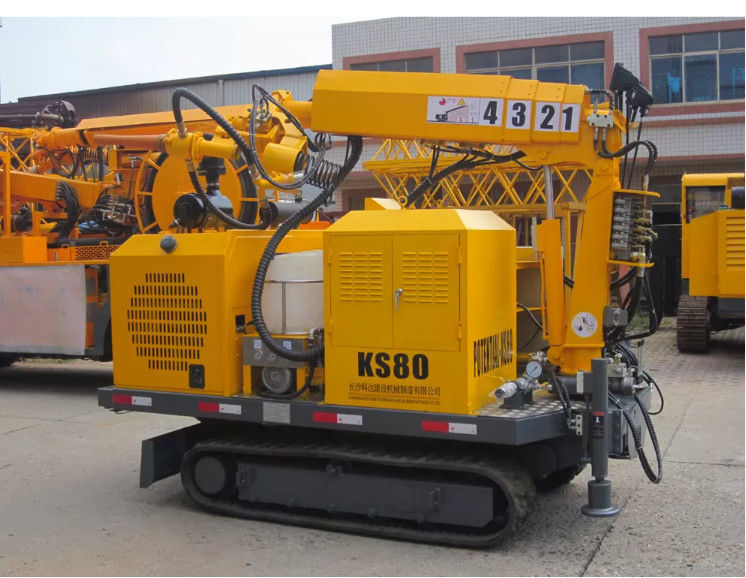

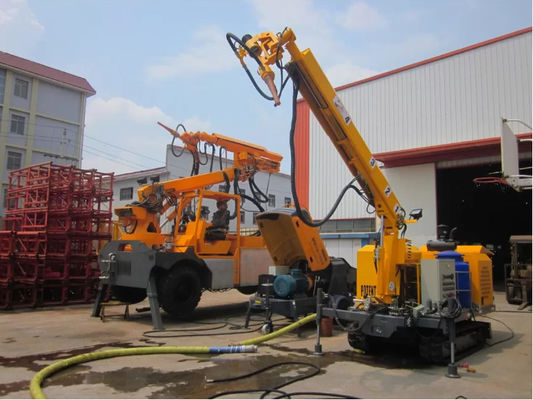

Travelling Speed 2.2/4.4km/h Robotic Shotcrete Machine Electric Motor And Diesel Engine Crawler Traveling Mode KS80+KP25
Product Description:
The application of concrete spraying is widespread in construction projects for small working sections and staged excavation tunnel. It can be seen in railway tunnels, road tunnels, culverts, diversion tunnels of hydropower stations, subways, and other underground projects.
The concrete spraying method is commonly used to protect the tunnel surface by forming a solid coating. This helps to prevent damage or collapse of the tunnel system during excavation, and it improves the safety of the workers.
Moreover, the concrete spraying technique is a time-efficient process that ensures rapid cementation of tunnel surfaces. This method offers high bonding strength and a long-lasting protective layer, which minimizes the need for costly and time-consuming repairs.
In summary, concrete spraying is a highly efficient, reliable, and cost-effective approach to ensure the structural integrity of tunnels during construction and maintenance work. It is a versatile method that caters to the needs of different types of underground projects.
Features:
The machine is equipped with 4 telescopic booms, making it ideal for multi-layer excavation in tunnel conditions.
The Electro-hydraulic power group allows for shotcrete operation with a maximum output of 25 cubic meters per hour.
The diesel drive system provides force for machine travel and arm movement.
The crawler chassis comes equipped with two unfolding hydraulic outrigger legs that maintain the machine's level when it climbs a slope.
In addition, the machine also features wireless remote control for added convenience and safety.
Technical Parameters:
| No. | Item | KS80+KP25 |
|---|---|---|
| 1 | Weight (T) | 4.6 + 2.15 |
| 2 | Travelling Speed (km/h) | 2.2/4.4 |
| 3 | Grade Ability (°) | 30 |
| 4 | Approach/Departure Angle (°) | 25/25 |
| 5 | Ground Clearance (mm) | 205 |
| 6 | Steering | motor driving/pivot steering |
| 7 | Travelling Mode | crawler |
| 8 | Outside Dimension (L x W x H) (mm) | 3400 x 1600 x 2500 + 3800 x 1500 x 1600 |
| No. | Item | KS80+KP25 |
|---|---|---|
| 1 | Rated Power (kW/rpm) | 7.5 |
| 2 | Rated Voltage (V) | three-phase/380 (optional) |
| No. | Item | KS80+KP25 |
|---|---|---|
| 1 | Mode | 4 cylinder liquid-cooled diesel engine |
| 2 | Rated Power (kW/rpm) | 33/2200 |
| 3 | Diesel Tank Volume (L) | 80 |
| No. | Item | KS80+KP25 |
|---|---|---|
| 1 | Mode | / |
| 2 | Rated Power (kW) | /(outsourcing) |
| 3 | Max. Wind Flow (m³/min) | >10 (required inlet flow) |
| 4 | Exhaust Pressure (MPa) | >0.5 (required inlet pressure) |
| No. | Item | KS80+KP25 |
|---|---|---|
| 1 | Boom Mode | rotate + telescopic |
| 2 | Max. Spray Area Upward (m) | 8.5 |
| 3 | Max. Spray Area Forward (m) | 7 |
| 4 | Max. Spray Area Downward (m) | 3.3 |
| 5 | Max. Spray Area Width (m) | 14 |
| 6 | Min. Spray Area Upward (m) | 3 |
| 7 | Min. Spray Area Forward (m) | 2 |
| 8 | Min. Spray Area Downward (m) | 0 |
| 9 | Min. Spray Area Width (m) | 2 |
| 10 | Main Boom Rotate Angle (°) | 270 |
| 11 | Main Boom Tilt Angle (up/down)(°) | / |
| 12 | Main Boom Telescopic Length (mm) | / |
| 13 | Telescopic Boom Rotate Angle (°) | / |
| 14 | Telescopic Boom Tilt Angle (up/down)(°) | 60/43 |
| 15 | Telescopic Boom Stretch Length (mm) | 1950 |
| 16 | Nozzle Rotate (°) | 360 |
| 17 | Nozzle Swing (°) | 240 |
| 18 | Nozzle Brush (°) | 360 continuous |
| 19 | Nozzle Diameter (°) | 80 |
| No. | Item | KS80+KP25 |
|---|---|---|
| 1 | Flow Rate (L/h) | 60-600 |
| 2 | Working Pressure (MPa) | 1.2 |
| 3 | Tank Volume (L) | 200 |
| 4 | Suction Length (m) | 3 |
| 5 | Motor Rated Power (kW) | 1.5 |
| No. | Item | KS80+KP25 |
|---|---|---|
| 1 | Flow Rate (L/min) | 14 |
| 2 | Working Pressure (MPa) | 14 |
| 3 | Motor Rated Power (kW) | 4 |
| No. | Item | KS80+KP25 |
|---|---|---|
| 1 | Operate Mode | wireless remote control |
| 2 | Control Mode | PLC + touchscreen display |
| No. | Item | KS80+KP25 |
|---|---|---|
| 1 | Cable Length (m) | 80 |
| 2 | Power Source (V/Hz) | 380/50 (optional) |
| 3 | Electric Current (A) | 400 |
Applications:
The Robotic Sprayed Concrete Machine is manufactured in China, where it undergoes a rigorous ISO9001:2015 certification process to ensure its quality and reliability. It has a minimum order quantity of 1 unit and a negotiable price. Each unit is packaged in a 1*40'HQ container and has a delivery time of 45 working days. Payment terms include T/T and L/C, while the supply ability is 180 units per year.
The machine is powered by a motor for working and a diesel engine for traveling. It has a working pressure of 14 MPa, a maximum output of 25 cubic meters per hour, and a traveling speed of 2.2/4.4km/h. These specifications make it suitable for a wide range of construction projects.
The Robotic Sprayed Concrete Machine can be used in several occasions and scenarios, such as:
- Construction of underground tunnels
- Mining operations
- Slope stabilization
- Building construction
- Repair and maintenance of existing structures
This machine is particularly useful in situations where access to the area is limited, and it is difficult to use traditional concrete pouring methods. It can also be used on irregular surfaces, such as vertical or overhead surfaces, due to its robotic capabilities.
In summary, the POTENTIAL / POTENCY KS80+KP25 Robotic Shotcrete Machine is a reliable and efficient option for construction applications that require spraying concrete. Its advanced features, including its robotic capabilities, make it easy to use and operate, while its high-quality construction ensures its durability and longevity.
Customization:
Our Robotic Shotcrete Pumping System is powered by a diesel engine and travels on a crawler. The power for working comes from an electric motor, while the power for traveling comes from diesel. It has a traveling speed of 2.2/4.4km/h.
With our Automated Concrete Spraying System, you can customize the product to meet your specific needs. Contact us today to learn more about our product customization services.
FAQ:
Q1: What is the brand name of this product?
A1: The brand name of this product is POTENTIAL / POTENCY.
Q2: What is the model number of this product?
A2: The model number of this product is KS80+KP25.
Q3: Where is this product made?
A3: This product is made in China.
Q4: Does this product have any certification?
A4: Yes, this product is certified with ISO9001:2015.
Q5: What is the minimum order quantity for this product?
A5: The minimum order quantity for this product is 1 unit.
