82KW / 2200rpm Concrete Spraying Machine Ungerground Mining Shotcrete Equipment
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | KEDA / POTENCY |
| Certification: | ISO9001:2015 |
| Model Number: | KC2008J |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Unit |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 1 Unit in 1*40'HQ |
| Delivery Time: | 45 Working Days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 180 Units Per Year |
|
Detail Information |
|||
| Application: | Concrete Spraying | Item: | KC2008J |
|---|---|---|---|
| Powr For Traveling: | Diesel | Engine Rated Power: | 82KW / 2200rpm |
| Power For Spraying: | Motor | Output: | 0-20m3 Per Hour |
| Engine Mode: | 4 Cylinder Liquid-cooled Diesel Engine | Traveling Mode: | Wheels |
| Highlight: | 82KW Concrete Spraying Machine,Ungerground Shotcrete Equipment,Mining Shotcrete Equipment |
||
Product Description

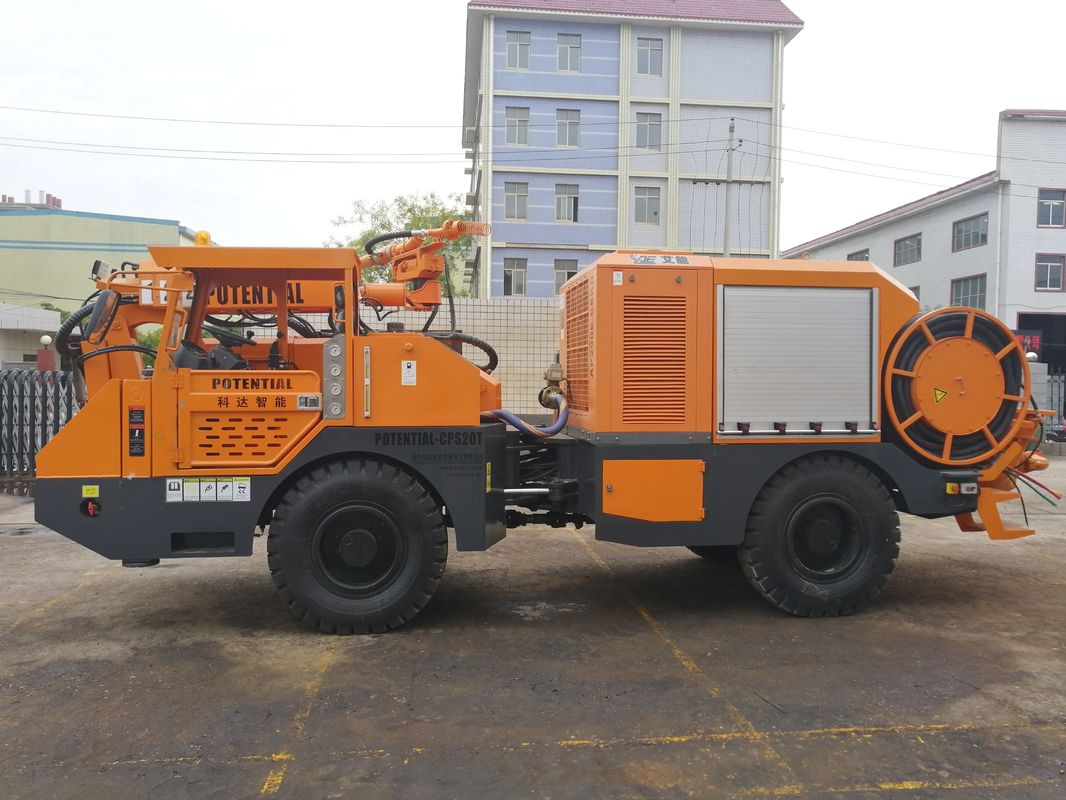

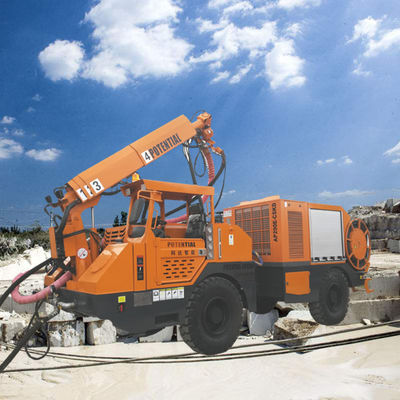

KC2008J Concrete Spraying Machine Ungerground Mining Shotcrete With Floating Axle
Widely used in concrete spraying projects of small working sections for underground and mining.
Applications
The application of wet sprayers in mining, tunnel and other engineering projects is very extensive and has significant advantages.
Mining wet spraying machine is mainly used for wet spraying operations, suitable for mining, tunnels, culverts, building foundation pit support, river slope protection and other engineering projects. Its core advantages include:
Efficient construction: The mining wet spraying machine can quickly and evenly spray concrete to the designated location, and can spray at least 9 cubic meters of material in 1 hour, greatly reducing construction time and ensuring a project cycle of 12.
Reducing dust pollution: Wet spraying significantly reduces the dust concentration at the work site, improves the working environment, and reduces the impact of dust on workers' health34.
Material saving: The rebound rate of the mining wet spraying machine is relatively low (≤ 10%), which can effectively control the amount of concrete spraying, reduce material waste, and thus save costs.
Intelligent operation: Some mining wet sprayers are equipped with intelligent control systems, which can achieve reliable control of parameters such as spraying speed, spraying pressure, and material ratio, improving operational accuracy and construction efficiency.
Features
1, POTENTIAL made rigid chassis with floating axle, wheels type.
2, Articulated steering, 4-wheels drive.
3, Full hydraulic control, 4 section telescopic boom, advanced nozzle structure.
4, Piston concrete pump, ensure the injection intensity and reduce the plugging probability, maintain cost low.
5, Diesel engine and motor dual power, and diesel engine power can be used for boom working in emergency state.
6, Onboard air compressor, equiped with high pressure cleaning machine.
Specifications
| No | Itmes | Parameters | ||
| 1 | Whole unit | Weight | Approx.11000kg | |
| Travelling Speed | 0～20km/h | |||
| Grade Ability | 20° | |||
| Gournd Clearance | 385mm | |||
| Traction/Steering | 4-wheels driving/Articulated steering | |||
| Waling mode | Wheels | |||
| Transportation dimension | 7500x2000x2400(mm) | |||
| Turning Radius | Inner 3665mm / Ourter 6180mm | |||
| Height of feed | 1250mm | |||
| 2 | Concrete Pump | Theo. Puming Capacity | 20m³/h | |
| Max. output Pressure | 75bar | |||
| 3 | Engine | Type | 4-cylinder liguid-cooled Diesel engine | |
| Rated Power | 82KW/2200rpm | |||
| 4 | Motor | Rated Power | 37KW/1480rpm | |
| 5 | Spray boom | Boom type | Telescopic | |
| Shotcrete Distance | Upward | 8.5m | ||
| Width | 14m | |||
| Forward | 7m | |||
| Nozzle Rotate | 360° | |||
| Nozzle Inclination | 240° | |||
| Nozzle Swing | 8°x360°Continuous | |||
| Pipe Diameter | Φ80 | |||
| 6 | Dosing Accelerator system | Flow Rate | 40～1000L/h | |
| Working Pressure | 1.2 MPa | |||
| Tank Volume | 300L | |||
| 7 | Air Compressor | Rated Power | 45KW | |
| Flow Rate | 8m3/min | |||
| Pressure | 7bar | |||
| 8 | Cleaner | Working Pressure | 14MPa | |
| 9 | Electrical System | Operating Mode | Wireless Remote Control | |
| Control Mode | Controller + touch screen display | |||
| 10 | Cable Reel | Length | 80m | |
| Power Supply | 380V/50HZ (optional) | |||
| Current |
200A |
|||
