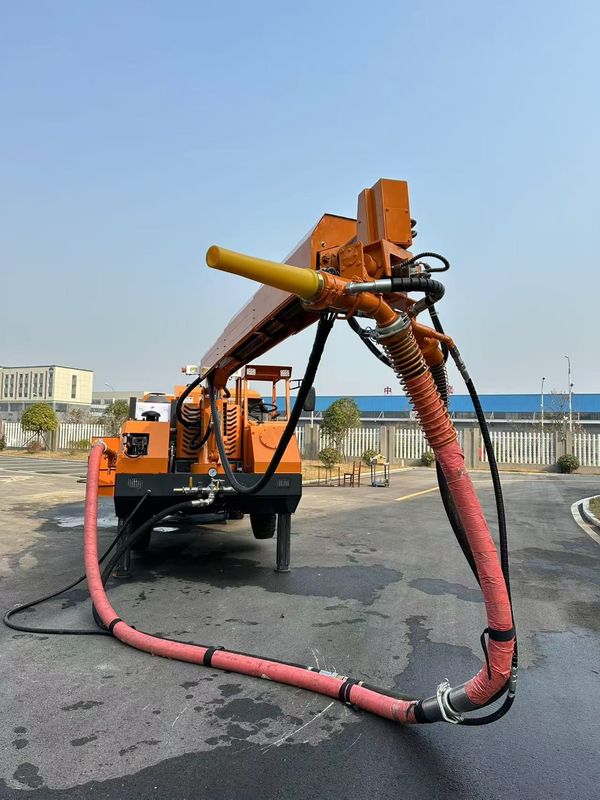

4 Wheels Driving Articulated Steering Robotic Shotcrete Machine 20m3/h Max Output
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | POTENTIAL / POTENCY |
| Certification: | ISO9001:2015 |
| Model Number: | KC2008J |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Unit |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 1 Unit in 1*40'HQ |
| Delivery Time: | 45 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 180 units per year |
|
Detail Information |
|||
| Max Output: | 20 Cubic Meters Per Hour | Motor Rated Power: | 37KW/1480rpm |
|---|---|---|---|
| Travelling Speed: | 0～20km/h | Traction/Steering: | 4-wheels Driving/Articulated Steering |
| Shotcrete Distance Upward: | 8.5m | Engine Rated Power: | 82KW/2200rpm |
| Power: | Elelctric Motor And Diesel Engine | Item: | KC2008J |
| Highlight: | 4 Wheels Driving Robotic Shotcrete Machine,Articulated Steering Robotic Shotcrete Machine |
||
Product Description
Robotic Shotcrete Machine KC2008J at 20 Cubic Meters Per Hour Output 8.5m Shotcrete Distance Upward 4-wheels Driving/Articulated Steering
Product Description:
The application of concrete spraying is widespread in underground and mining operations, particularly for small working sections.
This technique involves using a high-pressure spraying system to apply a layer of concrete to a targeted surface. Due to its ability to cover larger areas quickly, concrete spraying is highly efficient and cost-effective for these types of projects.
Additionally, this method of concrete placement is ideal for projects in confined spaces, where traditional methods may not be practical. It allows for precise application of concrete, reducing the risk of material waste and improving overall quality.
Features:
- POTENTIAL made rigid chassis with floating axle, wheels type.
- Articulated steering, 4-wheels drive.
- Full hydraulic control, 4 section telescopic boom, advanced nozzle structure.
- Piston concrete pump, ensures the injection intensity and reduces the plugging probability, maintain cost low.
- Diesel engine and motor dual power, and diesel engine power can be used for boom working in emergency state.
- Onboard air compressor, equipped with high pressure cleaning machine.
Technical Parameters:
| No | Itmes | Parameters | ||
| 1 | Whole unit | Weight | Approx.11000kg | |
| Travelling Speed | 0～20km/h | |||
| Grade Ability | 20° | |||
| Gournd Clearance | 385mm | |||
| Traction/Steering | 4-wheels driving/Articulated steering | |||
| Waling mode | Wheels | |||
| Transportation dimension | 7500x2000x2400(mm) | |||
| Turning Radius | Inner 3665mm / Ourter 6180mm | |||
| Height of feed | 1250mm | |||
| 2 | Concrete Pump | Theo. Puming Capacity | 20m³/h | |
| Max. output Pressure | 75bar | |||
| 3 | Engine | Type | 4-cylinder liguid-cooled Diesel engine | |
| Rated Power | 82KW/2200rpm | |||
| 4 | Motor | Rated Power | 37KW/1480rpm | |
| 5 | Spray boom | Boom type | Telescopic | |
| Shotcrete Distance | Upward | 8.5m | ||
| Width | 14m | |||
| Forward | 7m | |||
| Nozzle Rotate | 360° | |||
| Nozzle Inclination | 240° | |||
| Nozzle Swing | 8°x360°Continuous | |||
| Pipe Diameter | Φ80 | |||
| 6 | Dosing Accelerator system | Flow Rate | 40～1000L/h | |
| Working Pressure | 1.2 MPa | |||
| Tank Volume | 300L | |||
| 7 | Air Compressor | Rated Power | 45KW | |
| Flow Rate | 8m3/min | |||
| Pressure | 7bar | |||
| 8 | Cleaner | Working Pressure | 14MPa | |
| 9 | Electrical System | Operating Mode | Wireless Remote Control | |
| Control Mode | Controller + touch screen display | |||
| 10 | Cable Reel | Length | 80m | |
| Power Supply | 380V/50HZ (optional) | |||
| Current | 200A | |||
Applications:
The use of wet sprayers in mining, tunnel, and other engineering projects has extensive application and remarkable advantages. The mining wet spraying machine is specifically designed for wet spraying operations and is perfect for projects such as mining, tunneling, culverts, building foundation pit support, and river slope protection.
The core advantages of the mining wet spraying machine are aplenty. Firstly, it offers efficient construction, as it can evenly spray concrete onto targeted locations swiftly. In just an hour, it can spray at least 9 cubic meters of material, reducing construction time and ensuring a project cycle of 12.
Secondly, it helps reduce dust pollution, thereby improving the working environment and reducing the impact of dust on workers' health. Wet spraying significantly reduces the dust concentration present at the work site, which is a significant advantage.
Thirdly, it aids in material saving. With a low rebound rate (≤ 10%), the mining wet spraying machine can effectively control the quantity of concrete spraying, leading to less material waste and ultimately reducing costs.
Finally, some mining wet sprayers come equipped with intelligent control systems, which can achieve reliable control of essential parameters such as spraying speed, pressure, and material ratio. This feature improves operational accuracy and construction efficiency.
Support and Services:
The Robotic Shotcrete Machine is a complex piece of equipment that requires technical support and services to ensure proper operation and maintenance. Our team of highly skilled technicians is available to provide assistance with installation, training, troubleshooting, and repairs. We offer the following technical support and services:
- On-site installation and commissioning
- Operator training and certification
- Remote technical support
- Troubleshooting and repair services
- Preventative maintenance programs
- Spare parts and consumables
Our goal is to provide our customers with the highest level of support and service to ensure maximum productivity and uptime of their Robotic Shotcrete Machine. Contact us to learn more about our technical support and service offerings.
Packing and Shipping:
Product Packaging:
- The robotic shotcrete machine will be securely packed in a wooden crate to prevent any damage during transportation.
- All the necessary accessories, including the spray nozzle, hoses, and control panel, will be included in the package.
- The package will be labeled with the product name, model number, and shipping address.
Shipping:
- The robotic shotcrete machine will be shipped using a reliable and efficient freight service.
- The shipping cost will be calculated based on the destination and weight of the package.
- The estimated delivery time will be communicated to the customer once the order is processed.
- The customer will be provided with a tracking number to monitor the shipment status.
- Any custom duties and taxes will be the responsibility of the customer.
