8.5m Distance Upward Robotic Shotcrete Machine With Motor Rated Power 37KW / 1480rpm
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | POTENTIAL / POTENCY |
| Certification: | ISO9001:2015 |
| Model Number: | KC2008J |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Unit |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 1 Unit in 1*40'HQ |
| Delivery Time: | 45 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 180 units per year |
|
Detail Information |
|||
| Item: | KC2008J | Shotcrete Distance Upward: | 8.5m |
|---|---|---|---|
| Motor Rated Power: | 37KW/1480rpm | Travelling Speed: | 0～20km/h |
| Power: | Elelctric Motor And Diesel Engine | Max Output: | 20 Cubic Meters Per Hour |
| Engine Rated Power: | 82KW/2200rpm | Traction/Steering: | 4-wheels Driving/Articulated Steering |
| Highlight: | Robotic Shotcrete Machine 37KW,Robotic Shotcrete Machine 1480rpm |
||
Product Description

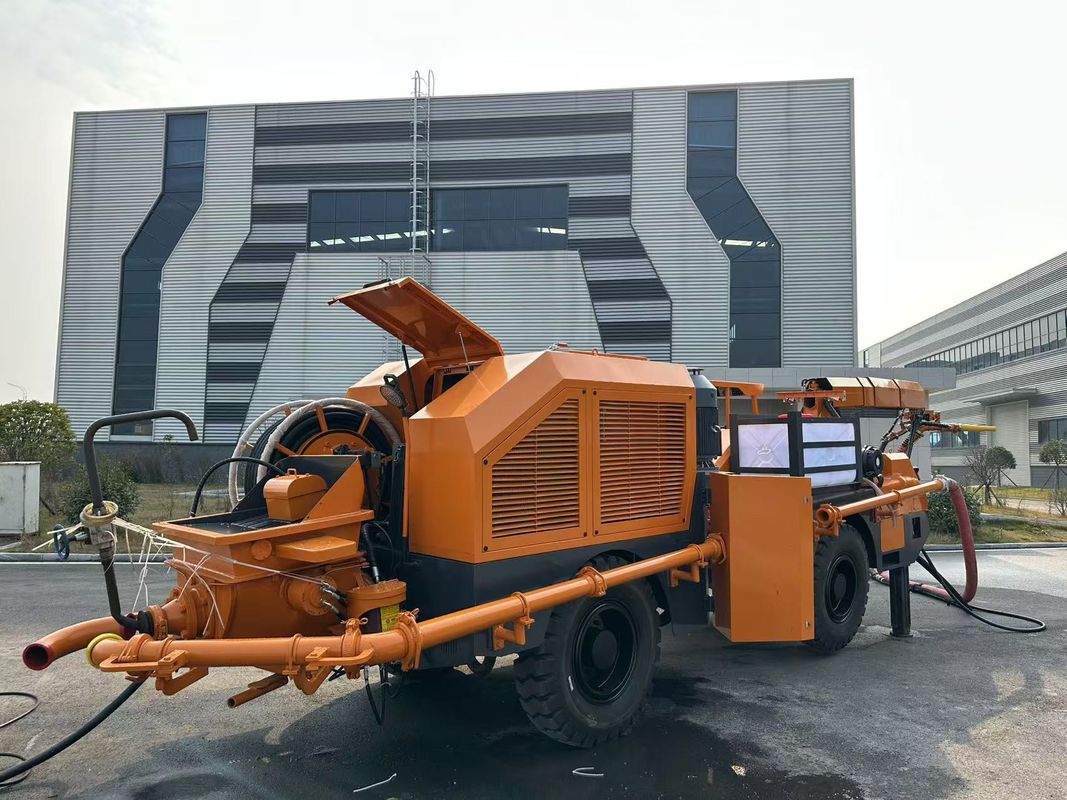

Robotic Shotcrete Machine KC2008J with Motor Rated Power 37KW/1480rpm and Travelling Speed 0～20km/h
Product Description:

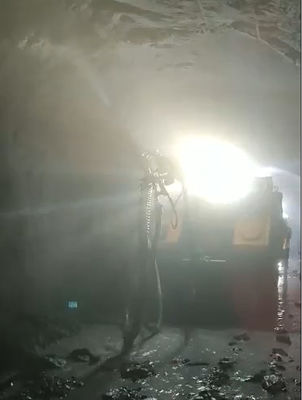

In underground and mining projects with small working sections, the process of concrete spraying is widely utilized. This technique involves using a specialized machine to spray a mixture of cement, water, and aggregates onto walls and ceilings in order to create a durable, reinforced surface.
Concrete spraying has proved to be an efficient and cost-effective method for a wide range of applications, including in tunnel construction, mines, and hydropower projects. It can be especially useful in hard-to-reach areas where traditional methods of pouring concrete are not feasible.
The use of concrete spraying can also result in a reduced environmental impact, as it minimizes the need for formwork and reduces waste. Additionally, the technique can be customized to meet the specific needs of each project, allowing for a greater degree of flexibility and creativity in design.
Features:
There is a product with an incredible potential that has been manufactured using a rigid chassis and floating axle, with wheels designed to provide the best performance possible.
As if that weren't enough, the product also includes articulated steering and 4-wheel drive to ensure maximum maneuverability and control.
The hydraulic control system is state-of-the-art and offers full control of the 4-section telescopic boom and advanced nozzle structure.
With its piston concrete pump, this product can inject material with high intensity and greatly reduce the probability of plugging, helping to keep costs low.
In the event of an emergency, the product includes a dual power system, with both diesel engine and motor power available to use for the boom working.
To make things even better, this product also includes an onboard air compressor and high pressure cleaning machine, ensuring that you have everything you need to get the job done right.
Technical Parameters:
- Weight: Approx. 11000kg
- Travelling Speed: 0-20km/h
- Grade Ability: 20°
- Gournd Clearance: 385mm
- Traction/Steering: 4-wheels driving/Articulated steering
- Waling mode: Wheels
- Transportation dimension: 7500x2000x2400(mm)
- Turning Radius: Inner 3665mm/Ourter 6180mm
- Height of feed: 1250mm
- Theo. Puming Capacity: 20m³/h
- Max. output Pressure: 75bar
- Type: 4-cylinder liguid-cooled Diesel engine
- Rated Power: 82KW/2200rpm
- Rated Power: 37KW/1480rpm
- Boom type: Telescopic
- Shotcrete Distance:
- Upward: 8.5m
- Width: 14m
- Forward: 7m
- Nozzle Rotate: 360°
- Nozzle Inclination: 240°
- Nozzle Swing: 8°x360°Continuous
- Pipe Diameter: Φ80
- Flow Rate: 40-1000L/h
- Working Pressure: 1.2 MPa
- Tank Volume: 300L
- Rated Power: 45KW
- Flow Rate: 8m 3 /min
- Pressure: 7bar
- Working Pressure: 14MPa
- Operating Mode: Wireless Remote Control
- Control Mode: Controller+Touch Screen Display
- Length: 80m
- Power Supply: 380V/50HZ (optional)
- Current: 200A
Applications:
The usage of wet sprayers in mining, tunnel, and other engineering projects is vast and provides considerable advantages. These applications are indispensable when it comes to construction projects. For example, mining wet spraying machine is widely used for wet spraying operations in various engineering projects, such as mining, tunnels, culverts, building foundation pit support, river slope protection, and so on.
The core advantages of mining wet spraying machines include:
- Efficient construction: The mining wet spraying machine enables the quick and even spray of concrete to the designated location. At least 9 cubic meters of material can be sprayed in 1 hour, which significantly reduces construction time, and ensures the end of the project cycle within 12 hours.
- Reducing dust pollution: Wet spraying remarkably reduces the dust concentration at the work site, which improves the working environment and reduces the harmful impact of dust on workers' health.
- Material saving: The rebound rate of the mining wet spraying machine is relatively low (≤ 10%). It effectively controls the amount of concrete spraying, reduces material waste, and saves costs.
- Intelligent operation: Some mining wet sprayers are equipped with intelligent control systems that provide reliable control of parameters such as spraying speed, spraying pressure, and material ratio. The intelligent operation enhances the accuracy and construction efficiency.
Support and Services:
Our Robotic Shotcrete Machine product comes with comprehensive technical support and services to ensure optimal performance and longevity. Our team of experienced technicians is available 24/7 to provide remote and on-site assistance with installation, maintenance, and troubleshooting. Additionally, we offer training programs to ensure that your team is well-equipped to operate and maintain the equipment. Our services also include regular maintenance checks and equipment upgrades to keep your Robotic Shotcrete Machine up-to-date with the latest technology and safety standards.
Packing and Shipping:
Product Packaging:
- Robotic Shotcrete Machine
- Instruction Manual
- Spare Parts
Shipping Information:
- Shipping Method: Ground
- Estimated Delivery Time: 5-7 Business Days
- Shipping Cost: Calculated at Checkout
- Shipping Restrictions: Only available for domestic shipping within the United States
