Robotic Wet Concrete Spraying Machine For Construction Solutions And Projects
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | POTENTIAL / POTENCY |
| Certification: | ISO9001:2015 |
| Model Number: | KC2012W/2513WJ |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Unit |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 1 Unit in 1*40'HQ |
| Delivery Time: | 45 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 180 units per year |
|
Detail Information |
|||
| Motor Rated Power: | 45KW/1480rpm | Power: | Elelctric Motor And Diesel Engine |
|---|---|---|---|
| Max Output: | 20~25 Cubic Meters Per Hour | Item: | KC2012W/2513WJ |
| Engine Rated Power: | 60KW/2200rpm | Traction/Steering: | 4-wheels Driving/Articulated Steering |
| Travelling Speed: | 0～15km/h | Shotcrete Distance Upward: | 11m |
| Highlight: | Wet Concrete Spraying Machine,Robotic Concrete Spraying Machine |
||
Product Description
Max Output 20-25 Cubic Meters Per Hour Robotic KC2012W/2513WJ Wet Concrete Sprayer for Construction Solutions and Projects
Product Description:

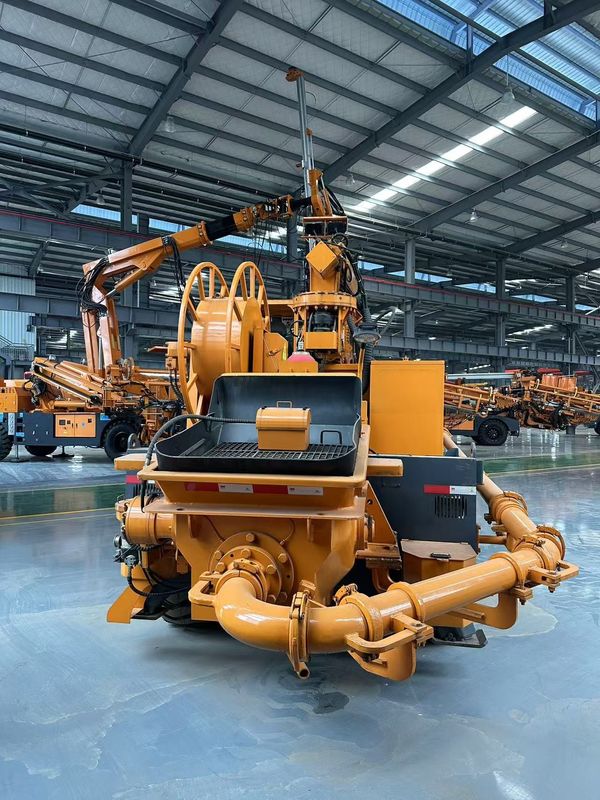

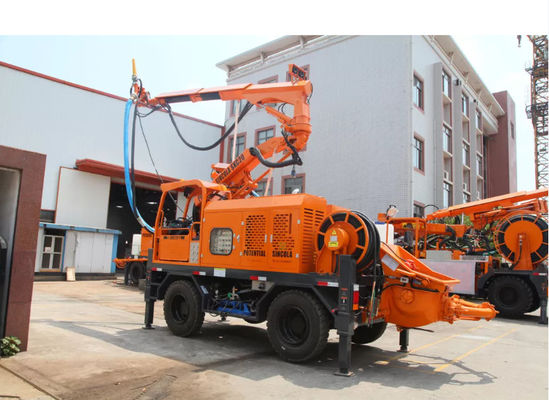

The KC2012W/2513WJ Wet Shotcrete Machine is a reliable tool for concrete spraying projects in underground tunnels, culverts, and subways. With its wireless remote control, it is easy to operate and control the spraying process with accuracy. This machine is suitable for medium and small working sections of concrete spraying projects.
If you are looking for a highly efficient and safe shotcrete machine, the KC2012W/2513WJ is an ideal option. It comes with an external air compressor that helps to maintain a steady pressure during the spraying process. This ensures that the concrete mixture is evenly sprayed, and the end result is a smooth and polished surface.
The wireless remote control feature of this machine makes it easy to adjust the spraying density and rate, which significantly reduces the labor required. Overall, with the KC2012W/2513WJ Wet Shotcrete Machine, you can achieve high-quality finishes while saving time and money.
- External air compressor
- Wireless remote control
- Suitable for medium and small working sections
- Efficient and safe
Features:
Advanced and reliable technology has been applied in the design of our electro-hydraulic proportional system. Our technology includes PLC control and auto-achievement of the speed change of setting pump. This ensures that the output of the pump is adjusted to match that of the concrete in a precise and efficient manner.
Our long reach spray boom technology allows our equipment to work at great heights over long distances. This technology is ideal for working in areas that are hard to access such as bridges, tunnels, and high-rise buildings.
The 3-PRES spray head technology is designed with a full spherical spray area without any blind spots. This is achieved by providing consistent and uniform coverage to all areas of the surface being sprayed.
The fully hydraulic foldable and telescopic intelligent spray boom ensures that there is no interference when all boom sections are working simultaneously. Our technology minimizes the margin of error, increasing the efficiency of your concrete spraying project.
Our equipment is designed with a minimal height and rotation radius, and 4-wheels crab swing, making it ideal for working in limited and complex conditions on construction sites. Our technology adapts to even the most challenging of work environments.
Technical Parameters:
| No. | Item | KC2012W |
|---|---|---|
| 1 | Complete machine | |
| Weight(T) | 10 | |
| Travelling speed(km/h) | 0～15 | |
| Grade ability(°) | 25 | |
| Approach/departure angle(°) | 21/21 | |
| Ground clearance(mm) | 245 | |
| Steering | 4 wheel driving/steering/crab | |
| Traveling mode | wheels | |
| Outside dimension(L×W×H)(mm) | 5900×2000×2650 |
| No. | Item | KC2012W |
|---|---|---|
| 2 | Pumping system | |
| Theoretical pump capacity (m³/h) | 4～20 | |
| Filling height(mm) | <1200 | |
| Max.aggregate size(mm) | ≤16 | |
| Max. theory outlet pressure (MPa) | 7 | |
| Pipe diameter(mm) | 100 | |
| Concrete cylinder diameter(mm) | 160 | |
| Concrete cylinder moving distance(mm) | 800 | |
| Hydraulic cylinder(cylinder diameter/pole diameter)(mm) | 80/55 | |
| Hydraulic cylinder moving distance(mm) | 800 | |
| Hopper capacity(L) | 300 | |
| Max.theoretical horizontal deliver distance(m) | / | |
| Max.theoretical vertical deliver distance(m) | / |
| No. | Item | KC2012W |
|---|---|---|
| 3 | Motor | |
| Rated Power(kW/rpm) | 45/1480 | |
| Rated voltage(V) | three-phase/380(optional) |
| No. | Item | KC2012W |
|---|---|---|
| 4 | Engine | |
| Mode | 4 cylinder liquid-cooled diesel engine | |
| Rated power(kW/rpm) | 60/2200 | |
| Diesel tank volumn (L) | 80 |
| No. | Item | KC2012W |
|---|---|---|
| 5 | Air compressor | |
| Mode | / | |
| Rated Power((kW) | /(outsourcing) | |
| Max.wind flow(m³/min ) | >10 (required inlet flow) | |
| Exhaust pressure(MPa) | >0.5(required inlet pressure) |
| No. | Item | KC2012W |
|---|---|---|
| 6 | Shotcrete Boom | |
| Boom mode | foldable + rotate + telescopic | |
| Max.spary area Upward(m) | 11 | |
| Max.spary area Forward(m) | 9.6 | |
| Max.spary area Downward(m) | 3.8 | |
| Max.spary area Width(m) | 19.2 | |
| Min.spary area Upward(m) | 4 | |
| Min.spary area Forward(m) | 2～3 | |
| Min.spary area Downward(m) | 0 | |
| Min.spary area Width(m) | 6 | |
| Main boom rotate angle(°) | 270 | |
| Main boom tilt angle(up/down)(°) | 60/25 | |
| Main boom telescopic length(mm) | / | |
| Telescopic boom rotate angle(°) | 360 | |
| Telescopic boom tilt angle(up/down)(°) | 65/25 | |
| Telescopic boom stretch length(mm) | 2600 | |
| Nozzle rotate(°) | 360 | |
| Nozzle swing (°) | 240 | |
| Nozzle brush(°) | 360 continuous | |
| Nozzle diameter(°) | 80 |
| No. | Item | KC2012W |
|---|---|---|
| 7 | Additive system | |
| Flow rate(L/h) | 60～600 | |
| Working pressure(MPa) | 1.2 | |
| Tank volumn(L) | 200 | |
| Suction length(m) | 3m | |
| Motor rated power(kW) | 1.5 |
| No. | Item | KC2012W |
|---|---|---|
| 8 | Cleaning System | |
| Flow rate(L/min) | 14 | |
| Working pressure(MPa) | 14 | |
| Motor rated power(kW) | 4 |
| No. | Item | KC2012W |
|---|---|---|
| 9 | Electric System | |
| Operate mode | wireless romote control | |
| Control mode | PLC + touchscreen display |
| No. | Item | KC2012W |
|---|---|---|
| 10 | Cable Reel | |
| Cable length(m) | 80 | |
| Power Source(V/Hz) | 380/50(optional) | |
| Electric current(A) | 400 |
Applications:
This Robotic Cement Spraying Equipment is ideal for use in a variety of occasions and scenarios, including underground mining, tunneling, slope stabilization, swimming pool construction, and more. With a minimum order quantity of just one unit and a negotiable price, the POTENTIAL / POTENCY Robotic Shotcrete Spraying Machine is accessible to businesses of all sizes and budgets.
The POTENTIAL / POTENCY Robotic Shotcrete Spraying Machine is designed for maximum efficiency and performance. With an engine rated power of 60KW/2200rpm and a motor rated power of 45KW/1480rpm, it can produce up to 20~25 cubic meters per hour of concrete spray. Its 4-wheels driving and articulated steering provide superior traction and maneuverability, while its travelling speed of 0～15km/h allows it to quickly cover large areas of ground.
When it comes to packaging and delivery, the POTENTIAL / POTENCY Robotic Shotcrete Spraying Machine is shipped in 1 unit per 1*40'HQ container, and has a delivery time of 45 working days. Payment terms for this product include T/T and L/C, and the supply ability is 180 units per year.
Overall, the POTENTIAL / POTENCY Robotic Shotcrete Spraying Machine is an excellent choice for businesses that need a reliable, efficient, and high-performance concrete spraying solution. Its versatility and precision make it ideal for a wide range of applications, while its quality and durability ensure that it will provide years of reliable service.
Customization:
Customize your Robotic Shotcrete Machine with our product customization services. Our machine is available under the brand names of POTENTIAL and POTENCY with Model Numbers KC2012W and 2513WJ respectively. It is a high-quality Robotic Concrete Spraying Robot that is designed to provide precise and efficient results. Our Automatic Wet Shotcrete Machine is manufactured in CHINA and is ISO9001:2015 certified, ensuring the highest quality standards.
You can order a minimum of 1 unit of this Robotic Sprayed Concrete Machine at a negotiable price, and we will deliver it to you in a 1*40'HQ packaging within 45 working days. We accept payment terms of T/T and L/C, and our supply ability is 180 units per year.
The Travelling Speed of our Robotic Shotcrete Machine can reach up to 0～15km/h, with a Max Output of 20~25 Cubic Meters Per Hour. It has a Motor Rated Power of 45KW/1480rpm and is available in both Electric Motor and Diesel Engine options.
So, whether you are looking to customize the item KC2012W or 2513WJ, we have got you covered with our top-notch product customization services.
Packing and Shipping:
Product Packaging:
- Robotic Shotcrete Machine
- Remote Control
- Power Cord
- User Manual
Shipping:
- Shipping Method: Standard
- Estimated Delivery Time: 5-7 business days
- Shipping Cost: Free
- Tracking Number: Provided
