Robotic Underground Shotcrete Machine Motor Rated Power 45 22KW / 1480rpm
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | POTENTIAL / POTENCY |
| Certification: | ISO9001:2015 |
| Model Number: | KC2515/3016W |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Unit |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 1 Unit in 1*40OT |
| Delivery Time: | 45 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 180 units per year |
|
Detail Information |
|||
| Shotcrete Distance Upward: | 15~16m | Engine: | 4 Cylinder Liquid-cooled Diesel Engine |
|---|---|---|---|
| Outside Dimension(L×W×H): | 7410x2200x3200mm | Item: | KC2515/3016W |
| Max Output: | 25~30 Cubic Meters Per Hour | Travelling Speed: | 0～20km/h |
| Steering: | 4 Wheels Driving/Steering/Crab | Motor Rated Power: | 45+22KW/1480rpm |
| Highlight: | Robotic Underground Shotcrete Machine,Underground Shotcrete Machine 1480rpm |
||
Product Description

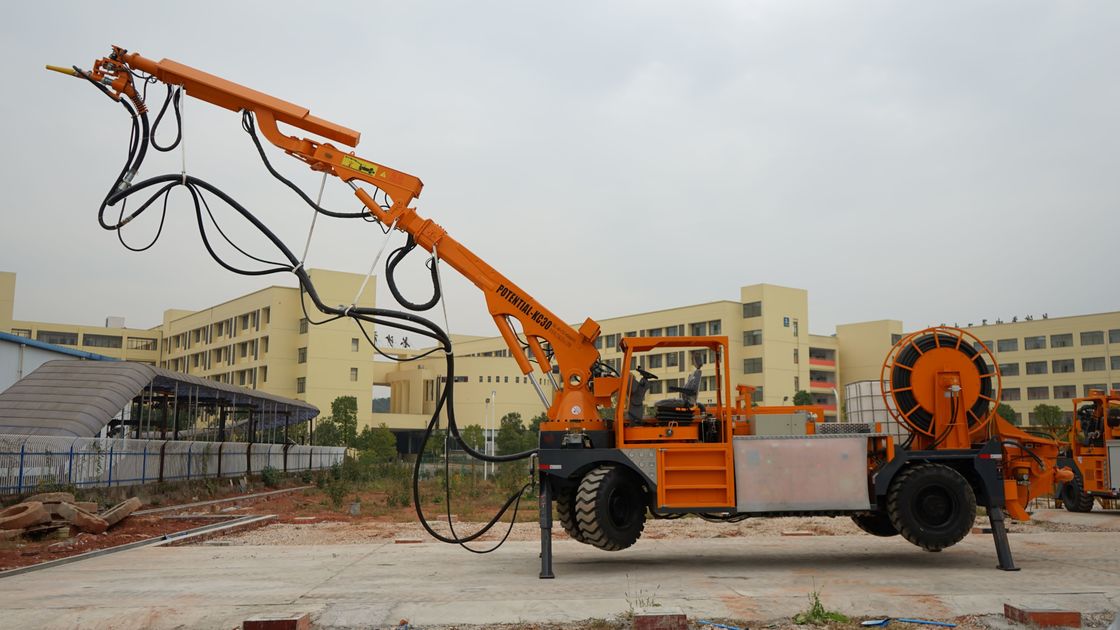

Motor Rated Power 45 22KW/1480rpm Robotic Sprayed Concrete Machine KC2515/3016W with 4 Cylinder Liquid-cooled Diesel Engine
Product Description:
The KC2515/3016W is capable of a Max Output of 25~30 Cubic Meters Per Hour, making it the perfect choice for large-scale construction projects that require a high volume of wet concrete. This Robotic Wet Concrete Sprayer is designed to easily handle even the toughest concrete mixes, ensuring that your project can proceed smoothly and efficiently.
The KC2515/3016W features 4 Wheels Driving/Steering/Crab, providing superior manoeuvrability and control over the Robotic Shotcrete Pumping System. This allows for precise placement of the wet concrete, even in tight spaces or difficult-to-reach areas. Whether you're working on a large-scale construction project or a smaller renovation, the KC2515/3016W is the perfect choice for a reliable and efficient Robotic Wet Concrete Sprayer.
The KC2515/3016W is built to last, with a Motor Rated Power of 45+22KW/1480rpm. This ensures that the Robotic Shotcrete Pumping System can handle even the most challenging concrete mixes, providing consistent and reliable performance throughout the duration of your project. Whether you're working on a residential, commercial, or industrial construction project, the KC2515/3016W is the ideal choice for a high-quality and dependable Robotic Wet Concrete Sprayer.
Technical Parameters:
Here is a comparison table for the specifications of four different models of a product:
<td

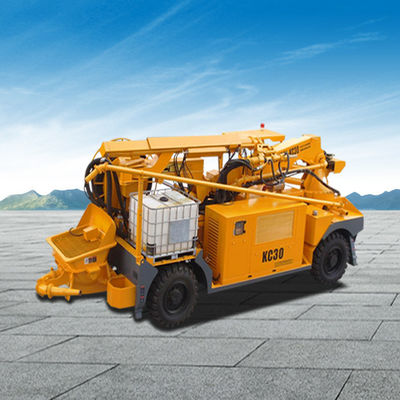

| No. | Item | KC3019 | KC3017 | KC3016W | KC2515W | |
|---|---|---|---|---|---|---|
| 1 | Complete machine | Weight(T) | 17 | 15.6 | 15 | |
| Travelling speed(km/h) | 0～18 | 0～20 | ||||
| Grade ability(°) | 25 | 25 | ||||
| Approach/departure angle(°) | 30/18 | 22/22 | ||||
| Ground clearance(mm) | 400 | 305 | ||||
| Steering | 4 wheel driving/steering/crab | |||||
| Traveling mode | wheels | |||||
| Outside dimension(L×W×H)(mm) | 8265×2500×3200 | 7410x2200x3200 | ||||
| 2 | Pumping system | Theoretical pump capacity (m³/h) | 4～30 | 7～30 | 7～25 | |
| Filling height(mm) | ＜1200 | ＜1200 | ||||
| Max.aggregate size(mm) | ≤16 | ≤16 | ||||
| Max. theory outlet pressure (MPa) | 7.5 | 7.5 | ||||
| Pipe diameter(mm) | 125 | 125 | ||||
| Concrete cylinder diameter(mm) | 180 | 180 | ||||
| Concrete cylinder moving distance(mm) | 1000 | 800 | ||||
| Hydraulic cylinder(cylinder diameter/pole diameter)(mm) | 100/60 | 100/60 | ||||
| Hydraulic cylinder moving distance(mm) | 1000 | 800 | ||||
| Hopper capacity(L) | 600 | 400 | ||||
| Max.theoretical horizontal deliver distance(m) | / | / | ||||
| Max.theoretical vertical deliver distance(m) | / | / | ||||
| 3 | Motor | Rated Power(kW/rpm) | 55/1480 | 45+30/1480 | 45+22/1480 | |
| Rated voltage(V) | three-phase/380(optional) | |||||
| 4 | Engine | Mode | 4 cylinder liquid-cooled diesel engine | |||
| Rated power(kW/rpm) | 82/2200 | |||||
| Diesel tank volumn (L) | 120 | |||||
| 5 | Air compressor | Mode | screw type | |||
| Rated Power((kW) | 75 | /(outsourcing) | ||||
| Max.wind flow(m³/min ) | 13.5 | ＞10 (required inlet flow) | ||||
| Exhaust pressure(MPa) | 0～0.7 | ＞0.5(required inlet pressure) | ||||
| 6 | Shotcrete Boom | Boom mode | foldable + telescopic | |||
| Max.spary area Upward(m) | 19 | 17 | 16 | 15 | ||
| Forward(m) | 17 | 15 | 14 | 13 | ||
| Downward(m) | 9 | 8 | 7.5 | 7 | ||
| Width(m) | 34 | 30 | 28 | 26 | ||
| Min.spary area Upward(m) | 4 | |||||
| Forward(m) | 2～3 | |||||
| Downward(m) | 0 | |||||
| Width(m) | 6 | |||||
| Main boom rotate angle(°) | 270 | |||||
| Main boom tilt angle(up/down)(°) | 60/23 | |||||
| Main boom telescopic length(mm) | 2000 | 1600 | 1300 | |||
| Telescopic boom rotate angle(°)(L/R) | 180/60 | |||||
| Telescopic boom tilt angle(up/down)(°) | 30/62 | |||||
| Telescopic boom stretch length(mm) | 2000 | 2000 | 1700 | |||
| Nozzle rotate(°) |
Applications:
The wet shotcrete technique is commonly utilized in various industries including railways, highways, tunnels, water conservancy, hydropower, underground mine excavation, underground factories, and construction engineering. Its effectiveness in enhancing the structural strength and durability of concrete is noteworthy.
To further improve the efficiency, quality, and working environment of concrete spraying, various construction units have increasingly resorted to using wet spraying trolleys. This application is rapidly becoming more popular as they offer a more efficient and reliable alternative to traditional spraying techniques.
Wet spraying trolleys bring an array of advantages that make them an ideal option for concrete spraying operations. They provide a more convenient and user-friendly spraying option compared to manual options while ensuring the quality and efficiency of spraying remain consistent. Additionally, they also provide a safer working environment for workers.
Support and Services:
FAQ:
Q1: What is the brand name of the robotic shotcrete machine?
A1: The brand name of the robotic shotcrete machine is POTENTIAL / POTENCY .
Q2: What is the model number of the robotic shotcrete machine?
A2: The model number of the robotic shotcrete machine is KC2515/3016W .
Q3: What is the place of origin of the robotic shotcrete machine?
A3: The robotic shotcrete machine is made in CHINA .
Q4: What certifications does the robotic shotcrete machine have?
A4: The robotic shotcrete machine is certified with ISO9001:2015 .
Q5: What are the payment terms for purchasing the robotic shotcrete machine?
A5: The payment terms for purchasing the robotic shotcrete machine are T/T and L/C .
