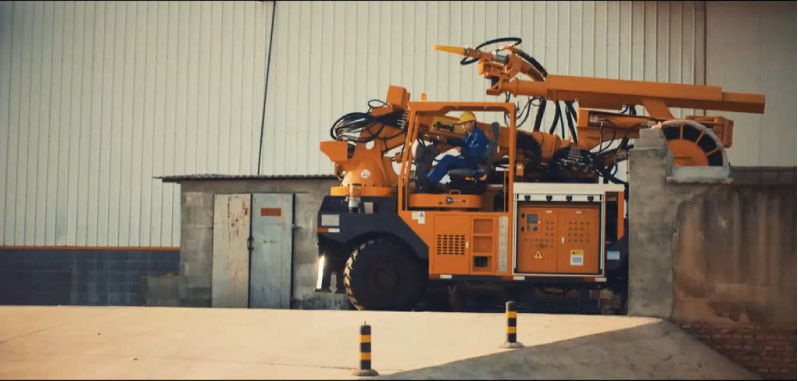

45KW / 1480rpm Robotic Shotcrete Machine Outside Dimension 7410x2200x3200mm
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | POTENTIAL / POTENCY |
| Certification: | ISO9001:2015 |
| Model Number: | KC2515/3016W |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Unit |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 1 Unit in 1*40OT |
| Delivery Time: | 45 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 180 units per year |
|
Detail Information |
|||
| Motor Rated Power: | 45+22KW/1480rpm | Outside Dimension(L×W×H): | 7410x2200x3200mm |
|---|---|---|---|
| Max Output: | 25~30 Cubic Meters Per Hour | Shotcrete Distance Upward: | 15~16m |
| Engine: | 4 Cylinder Liquid-cooled Diesel Engine | Steering: | 4 Wheels Driving/Steering/Crab |
| Travelling Speed: | 0～20km/h | Item: | KC2515/3016W |
| Highlight: | 1480rpm Robotic Shotcrete Machine,45KW Robotic Shotcrete Machine |
||
Product Description

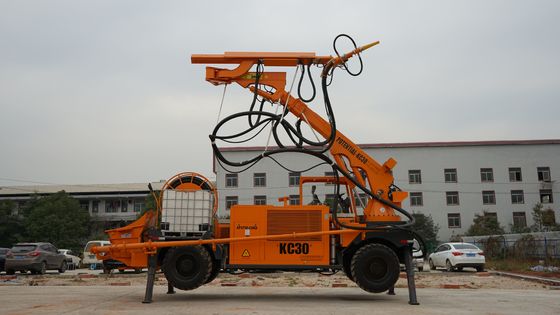

45KW/1480rpm Motor Rated Power KC2515/3016W Robotic Shotcrete Machine with Outside Dimension L×W×H 7410x2200x3200mm
Product Description:
One of the standout features of our Robotic Shotcrete Machine is its impressive Shotcrete Distance Upward, which can reach up to 15~16m. This makes it perfect for a variety of construction projects, including tunnels, mines, and swimming pools.
The outside dimensions of our machine (L×W×H) are 7410x2200x3200mm, making it compact and easy to maneuver on the job site. Despite its small size, however, the motor rated power is an impressive 45+22KW/1480rpm, allowing it to handle heavy-duty concrete spraying tasks with ease.
Another key advantage of our Robotic Cement Spraying Equipment is its Max Output, which can reach up to 25~30 Cubic Meters Per Hour. This means that you can get more done in less time, allowing you to take on more projects and increase your revenue stream.
Finally, our Robotic Sprayed Concrete Machine features advanced steering capabilities, with 4 Wheels Driving/Steering/Crab functionality. This allows you to navigate tight spaces and tricky job sites with ease, ensuring that you can get the job done right the first time, every time.
Technical Parameters:
| No. | Item | KC3019 | KC3017 | KC3016W | KC2515W |
|---|---|---|---|---|---|
| 1 | Complete machine Weight(T) | 17 | 15.6 | 15 | |
| Travelling speed(km/h) | 0～18 | 0～20 | |||
| Grade ability(°) | 25 | 25 | |||
| Approach/departure angle(°) | 30/18 | 22/22 | |||
| Ground clearance(mm) | 400 | 305 | |||
| Steering | 4 wheel driving/steering/crab | ||||
| Traveling mode | wheels | ||||
| Outside dimension(L×W×H)(mm) | 8265×2500×3200 | 7410x2200x3200 |
| No. | Item | KC3019 | KC3017 | KC3016W | KC2515W |
|---|---|---|---|---|---|
| 2 | Theoretical pump capacity (m³/h) | 4～30 | 7～30 | 7～25 | |
| Filling height(mm) | <1200 | <1200 | |||
| Max.aggregate size(mm) | ≤16 | ≤16 | |||
| Max. theory outlet pressure (MPa) | 7.5 | 7.5 | |||
| Pipe diameter(mm) | 125 | 125 | |||
| Concrete cylinder diameter(mm) | 180 | 180 | |||
| Concrete cylinder moving distance(mm) | 1000 | 800 | |||
| Hydraulic cylinder(cylinder diameter/pole diameter)(mm) | 100/60 | 100/60 | |||
| Hydraulic cylinder moving distance(mm) | 1000 | 800 | |||
| Hopper capacity(L) | 600 | 400 | |||
| Max.theoretical horizontal deliver distance(m) | / | ||||
| Max.theoretical vertical deliver distance(m) | / |
| No. | Item | KC3019 | KC3017 | KC3016W | KC2515W |
|---|---|---|---|---|---|
| 3 | Rated Power(kW/rpm) | 55/1480 | 45+30/1480 | 45+22/1480 | |
| Rated voltage(V) | three-phase/380(optional) |
| No. | Item | KC3019 | KC3017 | KC3016W | KC2515W |
|---|---|---|---|---|---|
| 4 | Mode | 4 cylinder liquid-cooled diesel engine | |||
| Rated power(kW/rpm) | 82/2200 | ||||
| Diesel tank volumn (L) | 120 |
| No. | Item | KC3019 | KC3017 | KC3016W | KC2515W |
|---|---|---|---|---|---|
| 5 | Mode | screw type | |||
| Rated Power((kW) | 75 | /(outsourcing) | |||
| Max.wind flow(m³/min ) | 13.5 | >10 (required inlet flow) | |||
| Exhaust pressure(MPa) | 0～0.7 | >0.5(required inlet pressure) |
| No. | Item | KC3019 | KC3017 | KC3016W | KC2515W |
|---|---|---|---|---|---|
| 6 | Boom mode | foldable + telescopic | |||
| Max.spary area Upward(m) | 19 | 17 | 16 | 15 | |
| Forward(m) | 17 | 15 | 14 | 13 | |
| Downward(m) | 9 | 8 | 7.5 | 7 | |
| Width(m) | 34 | 30 | 28 | 26 | |
| Min.spary area Upward(m) | 4 | ||||
| Forward(m) | 2～3 | ||||
| Downward(m) | 0 | ||||
| Width(m) | 6 | ||||
| Main boom rotate angle(°) | 270 | ||||
| Main boom tilt angle(up/down)(°) | 60/23 | ||||
| Main boom telescopic length(mm) | 2000 | 1600 | 1300 | ||
| Telescopic boom rotate angle(°)(L/R) | 180/60 | ||||
| Telescopic boom tilt angle(up/down)(°) | 30/62 | </ |
Applications:
The wet spraying trolley is a versatile tool commonly used in various wet shotcrete operations. It finds its application in fields such as railways, highways, tunnels, water conservancy, hydropower, underground mine excavation, underground factories, and construction engineering.
Due to construction units' increasing demands for efficiency, quality, and working environment in concrete spraying operations, the use of wet spraying trolleys has become more widespread. These trolleys are designed to meet the challenges of spraying concrete mixtures on different surfaces, ensuring a smooth and even coat of concrete while minimizing wastage.
The use of wet spraying trolleys ensures that construction projects are completed within a shorter time frame, saving time and resources. They provide an efficient solution for spraying concrete mixtures on vertical and horizontal surfaces, eliminating the need for manual spraying, which can be a time-consuming process.
In addition to enhancing the working environment, wet spraying trolleys offer better concrete quality control and minimize errors in concrete mixture ratio, leading to more robust structures with a longer lifespan. By continually improving and optimizing wet spraying trolley designs, construction teams can provide better quality, cost-effective, and safe construction solutions to their clients.
The wet spraying trolley is a versatile tool commonly used in various wet shotcrete operations. It finds its application in fields such as railways, highways, tunnels, water conservancy, hydropower, underground mine excavation, underground factories, and construction engineering.
Due to construction units' increasing demands for efficiency, quality, and working environment in concrete spraying operations, the use of wet spraying trolleys has become more widespread. These trolleys are designed to meet the challenges of spraying concrete mixtures on different surfaces, ensuring a smooth and even coat of concrete while minimizing wastage.
The use of wet spraying trolleys ensures that construction projects are completed within a shorter time frame, saving time and resources. They provide an efficient solution for spraying concrete mixtures on vertical and horizontal surfaces, eliminating the need for manual spraying, which can be a time-consuming process.
In addition to enhancing the working environment, wet spraying trolleys offer better concrete quality control and minimize errors in concrete mixture ratio, leading to more robust structures with a longer lifespan. By continually improving and optimizing wet spraying trolley designs, construction teams can provide better quality, cost-effective, and safe construction solutions to their clients.
Support and Services:
The Robotic Shotcrete Machine comes with full technical support and services to ensure optimal performance and reliability. Our team of experienced technicians and engineers are available to provide assistance with installation, commissioning, and troubleshooting. We also offer training programs to help operators and maintenance personnel operate and maintain the equipment safely and efficiently. In addition, we provide regular maintenance and repair services to ensure the machine operates at peak performance over its entire lifespan. Contact us today to learn more about our technical support and services for the Robotic Shotcrete Machine.
FAQ:
Q1: What is the brand name of this Robotic Shotcrete Machine?
A1: The brand name of this machine is POTENTIAL or POTENCY.
Q2: What are the model numbers available for this machine?
A2: The available model numbers are KC2515 and KC3016W.
Q3: Where is this machine manufactured?
A3: This machine is manufactured in China.
Q4: Is this machine certified?
A4: Yes, this machine is certified with ISO9001:2015.
Q5: What is the minimum order quantity for this machine?
A5: The minimum order quantity for this machine is 1 unit.
