Robotic Shotcrete Spraying Machine 20km/h 4 Cylinder Liquid Cooled Diesel Engine
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | POTENTIAL / POTENCY |
| Certification: | ISO9001:2015 |
| Model Number: | KC2515/3016W |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Unit |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 1 Unit in 1*40OT |
| Delivery Time: | 45 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 180 units per year |
|
Detail Information |
|||
| Outside Dimension(L×W×H): | 7410x2200x3200mm | Shotcrete Distance Upward: | 15~16m |
|---|---|---|---|
| Engine: | 4 Cylinder Liquid-cooled Diesel Engine | Item: | KC2515/3016W |
| Travelling Speed: | 0～20km/h | Max Output: | 25~30 Cubic Meters Per Hour |
| Motor Rated Power: | 45+22KW/1480rpm | Steering: | 4 Wheels Driving/Steering/Crab |
| Highlight: | Shotcrete Spraying Machine 4 Cylinder,Shotcrete Spraying Machine 20km/h |
||
Product Description

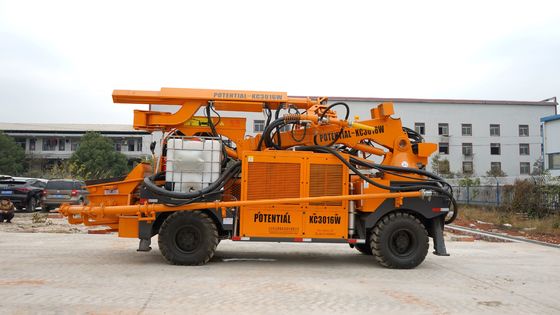

4 Cylinder Liquid-cooled Diesel Engine Robotic Shotcrete Spraying Machine KC2515/3016W
Product Description:
The Robotic Shotcrete Machine is available in two different models: KC2515 and KC3016W. The outside dimensions of the KC2515 model are 7410x2200x3200mm, while the KC3016W model has slightly larger dimensions. Both models are designed to be compact and easy to transport, making them perfect for use in construction sites with limited space.
One of the key features of this Robotic Shotcrete Machine is its ability to spray concrete up to a distance of 15~16m, making it perfect for use in tall buildings and structures. The machine is also equipped with advanced robotic technology that allows it to move and spray concrete automatically, without the need for manual intervention. This makes the machine more efficient and ensures that the concrete is sprayed consistently and evenly.
The Robotic Shotcrete Machine is designed to be easy to operate and maintain. It comes with a user-friendly interface that makes it easy to control and adjust the spraying parameters. The machine also has a built-in cleaning system that makes it easy to clean and maintain after use, ensuring that it remains in top condition for longer.
In summary, the Robotic Shotcrete Machine is an Automatic Wet Shotcrete Machine that is perfect for spraying wet concrete in construction projects. It is equipped with a powerful engine and advanced robotic technology that makes it efficient, reliable, and easy to operate. With its ability to spray concrete up to a distance of 15~16m, this machine is perfect for use in tall buildings and structures. So, if you're looking for a high-quality, cost-effective, and efficient shotcrete machine for your construction project, the Robotic Shotcrete Machine is the perfect choice.
Technical Parameters:
The following is a table describing the technical specifications of complete machines:
| No. | Item | KC3019 | KC3017 | KC3016W | KC2515W |
|---|---|---|---|---|---|
| 1 | Weight (T) | 17 | 15.6 | 15 | |
| Travelling speed (km/h) | 0～18 | 0～20 | |||
| Grade ability (°) | 25 | 25 | |||
| Approach/Departure angle (°) | 30/18 | 22/22 | |||
| Ground clearance (mm) | 400 | 305 | |||
| Steering | 4 wheel driving/steering/crab | ||||
| Traveling mode | wheels | ||||
| Outside dimension (L×W×H) (mm) | 8265x2500x3200 | 7410x2200x3200 | |||
| 2 | Pumping System | ||||
| Theoretical pump capacity (m³/h) | 4～30 | 7～30 | 7～25 | ||
| Filling height (mm) | <1200 | <1200 | |||
| Max. aggregate size (mm) | <=16 | <=16 | |||
| Max. Theory outlet pressure (MPa) | 7.5 | 7.5 | |||
| Pipe diameter (mm) | 125 | 125 | |||
| Concrete cylinder diameter (mm) | 180 | 180 | |||
| Concrete cylinder moving distance (mm) | 1000 | 800 | |||
| Hydraulic cylinder (cylinder diameter/pole diameter) (mm) | 100/60 | 100/60 | |||
| Hydraulic cylinder moving distance (mm) | 1000 | 800 | |||
| Hopper capacity (L) | 600 | 400 | |||
| Max. theoretical horizontal deliver distance (m) | |||||
| Max. theoretical vertical deliver distance (m) | |||||
| 3 | Motor | ||||
| Rated power (kW/rpm) | 55/1480 | 45+30/1480 | 45+22/1480 | ||
| Rated voltage (V) | three-phase/380 (optional) | ||||
| 4 | Engine | ||||
| Mode | 4 cylinder liquid-cooled diesel engine | ||||
| Rated power (kW/rpm) | 82/2200 | ||||
| Diesel tank volume (L) | 120 | ||||
| 5 | Air Compressor | ||||
| Mode | screw type | ||||
| Rated Power (kW) | 75 | /(outsourcing) | |||
| Max. wind flow (m³/min) | 13.5 | >10 (required inlet flow) | |||
| Exhaust pressure (MPa) | 0～0.7 | >0.5 (required inlet pressure) | |||
| 6 | Shotcrete Boom | ||||
| Boom mode | foldable + telescopic | ||||
| Max. Spray Area - Upward (m) | 19 | 17 | 16 | 15 | |
| Max. Spray Area - Forward (m) | 17 | 15 | 14 | 13 | |
| Max. Spray Area - Downward (m) | 9 | 8 | 7.5 | 7 | |
| Width (m) | 34 | 30 | 28 | 26 | |
| Min. Spray Area - Upward (m) | 4 | ||||
| Min. Spray Area - Forward (m) | 2～3 | ||||
| Min. Spray Area - Downward (m) | 0 | ||||
| Width (m) | 6 | ||||
| Main boom rotate angle (°) | 270 | ||||
| Main boom tilt angle (up/down) (°) | 60/23 | ||||
| Main boom telescopic length (mm) | 2000 | 1600 | 1300 | ||
| Telescopic boom rotate angle (°) (L/R) | 180/60 | ||||
| Telescopic boom tilt angle (up/down) (°) | 30/62 | ||||
| Telescopic boom stretch length (mm) | 2000 | 2000 | 1700 | ||
| Nozzle rotate (°) | 360 | ||||
| Nozzle swing (°) | 240 | </ |
Applications:
The wet spraying trolley is a versatile piece of equipment that finds its main application in fields such as railways, highways, tunnels, water conservancy, hydropower, underground mine excavation, underground factories, and construction engineering.
In recent years, there has been a rise in the demand for high-quality and efficient concrete spraying operations. The wet spraying trolley is an ideal solution for meeting these requirements.
As construction units look for more efficient and safe solutions for concrete spraying, the use of wet spraying trolleys is rapidly gaining popularity in the industry. By using this equipment, one can achieve better consistency and quality in the results of the wet shotcrete process.
Furthermore, wet spraying trolleys also provide a safer working environment for workers. They can be operated from a distance, reducing the exposure of workers to hazardous and dangerous elements.
Support and Services:
Our Robotic Shotcrete Machine is designed to provide precise and efficient application of shotcrete for construction projects. We offer comprehensive technical support and services to ensure optimal performance and longevity of our product. Our team of experts are available to provide assistance with installation, training, troubleshooting and maintenance. We also offer repair and replacement services for any damaged or malfunctioning parts. Our goal is to provide our customers with a reliable and high-quality product that meets their specific needs.
FAQ:
Q1: What is the brand name of the Robotic Shotcrete Machine?
A1: The brand name of the Robotic Shotcrete Machine is POTENTIAL or POTENCY.
Q2: What is the model number of the machine?
A2: The model number of the machine is KC2515/3016W.
Q3: What is the place of origin of the Robotic Shotcrete Machine?
A3: The place of origin of the Robotic Shotcrete Machine is China.
Q4: Is the product certified?
A4: Yes, the product is certified with ISO9001:2015.
Q5: What is the minimum order quantity and delivery time for the product?
A5: The minimum order quantity is 1 unit and the delivery time is 45 working days. Packaging details include 1 unit in 1*40OT. Payment terms include T/T and L/C. The price is negotiable and the supply ability is 180 units per year.
