Automated Concrete Shotcrete System
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | POTENTIAL / POTENCY |
| Certification: | ISO9001:2015 |
| Model Number: | KC2515/3016W |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Unit |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 1 Unit in 1*40OT |
| Delivery Time: | 45 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 180 units per year |
|
Detail Information |
|||
| Shotcrete Distance Upward: | 15~16m | Item: | KC2515/3016W |
|---|---|---|---|
| Travelling Speed: | 0～20km/h | Steering: | 4 Wheels Driving/Steering/Crab |
| Motor Rated Power: | 45+22KW/1480rpm | Outside Dimension(L×W×H): | 7410x2200x3200mm |
| Engine: | 4 Cylinder Liquid-cooled Diesel Engine | Max Output: | 25~30 Cubic Meters Per Hour |
| Highlight: | Automated Concrete Shotcrete System,Concrete Shotcrete System 20km/h |
||
Product Description

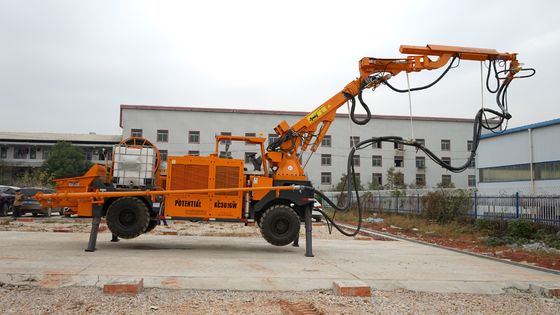

Automated Concrete Shotcrete System with 4 Cylinder Liquid-cooled Diesel Engine KC2515/3016W
Product Description:
The machine features an outside dimension of 7410x2200x3200mm, which makes it perfect for use in tight spaces. Its compact size also makes it easy to transport from one job site to another. The Robotic Shotcrete Spraying Machine is capable of shotcrete distance upward of 15~16m, which means it can easily reach high areas without the need for scaffolding or other support structures.
The Robotic Sprayed Concrete Machine is designed to provide reliable and consistent results, every time. It features advanced technology that allows it to apply concrete quickly and accurately, saving time and money. Whether you're working on a large construction project or a small renovation, the Robotic Shotcrete Spraying Machine can help you get the job done right.
Technical Parameters:
| No. | Item | KC3019 | KC3017 | KC3016W | KC2515W | |
|---|---|---|---|---|---|---|
| 1 | Complete Machine | Weight(T) | 17 | 15.6 | 15 | |
| Travelling speed(km/h) | 0～18 | 0～20 | ||||
| Grade ability(°) | 25 | 25 | ||||
| Approach/departure angle(°) | 30/18 | 22/22 | ||||
| Ground clearance(mm) | 400 | 305 | ||||
| Steering | 4 wheel driving/steering/crab | |||||
| Traveling mode | wheels | |||||
| Outside dimension(L×W×H)(mm) | 8265×2500×3200 | 7410x2200x3200 | ||||
| 2 | Pumping System | Theoretical pump capacity (m³/h) | 4～30 | 7～30 | 7～25 | |
| Filling height(mm) | ＜1200 | ＜1200 | ||||
| Max.aggregate size(mm) | ≤16 | ≤16 | ||||
| Max. theory outlet pressure (MPa) | 7.5 | 7.5 | ||||
| Pipe diameter(mm) | 125 | 125 | ||||
| Concrete cylinder diameter(mm) | 180 | 180 | ||||
| Concrete cylinder moving distance(mm) | 1000 | 800 | ||||
| Hydraulic cylinder(cylinder diameter/pole diameter)(mm) | 100/60 | 100/60 | ||||
| Hydraulic cylinder moving distance(mm) | 1000 | 800 | ||||
| Hopper capacity(L) | 600 | 400 | ||||
| Max.theoretical horizontal deliver distance(m) | / | / | ||||
| Max.theoretical vertical deliver distance(m) | / | / | ||||
| 3 | Motor | Rated Power(kW/rpm) | 55/1480 | 45+30/1480 | 45+22/1480 | |
| Rated voltage(V) | three-phase/380(optional) | |||||
| 4 | Engine | Mode | 4 cylinder liquid-cooled diesel engine | |||
| Rated power(kW/rpm) | 82/2200 | |||||
| Diesel tank volume (L) | 120 | |||||
| 5 | Air Compressor | Mode | screw type | (outsourcing) | ||
| Rated Power((kW) | 75 | ＞10 (required inlet flow) | ||||
| Max.wind flow(m³/min ) | 13.5 | ＞0.5 (required inlet pressure) | ||||
| 6 | Shotcrete Boom | Boom mode | foldable + telescopic | |||
| Max.spray area Upward(m) | 19 | 17 | 16 | 15 | ||
| Max.spray area Forward(m) | 17 | 15 | 14 | 13 | ||
| Max.spray area Downward(m) | 9 | 8 | 7.5 | 7 | ||
| Width(m) | 34 | 30 | 28 | 26 | ||
| Min.spray area Upward(m) | 4 | |||||
| Min.spray area Forward(m) | 2～3 | |||||
| Min.spray area Downward(m) | 0 | |||||
| Width(m) | 6 | |||||
| Main boom rotate angle(°) | 270 | |||||
| Main boom tilt angle(up/down)(°) | 60/23 | |||||
| Main boom telescopic length(mm) | 2000 | 1600 | 1300 | |||
| Telescopic boom rotate angle(°)(L/R) | 180/60 | |||||
| Telescopic boom tilt angle(up/down)(°) | 30/62 | |||||
| Telescopic boom stretch length(mm) | 2000 | 2000 | 1700 | |||
| Nozzle rotate(°) | 360 | |||||
| Nozzle swing (°) | 240 | |||||
| Nozzle brush(°) | 360 continuous | |||||
| Nozzle diameter(°) | 80 | |||||
Applications:
The wet shotcrete operations are primarily used in various fields such as railways, highways, tunnels, water conservancy, hydropower, underground mine excavation, underground factories, and construction engineering. The main reason why wet shotcrete is widely used in these fields is its effectiveness in ensuring proper concrete spraying efficiency and quality.
Due to the increasing need for concrete spraying efficiency and quality, construction units now have higher requirements for working environment. Hence, the application of wet spraying trolleys is emerging as an effective solution to address these concerns. This trend has led to the widespread use of wet spraying trolleys in various construction projects.

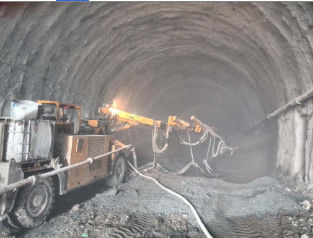

Wet spraying trolleys enable contractors to execute concrete spraying operations with ease. They are particularly useful in situations where manual labor is not an option, such as in underground mine excavation and tunnel construction. Wet spraying trolleys are also useful in construction projects where it is difficult to reach high elevations safely.
In conclusion, the use of wet spraying trolleys is becoming increasingly popular in various fields of construction. With the help of wet spraying trolleys, contractors can ensure proper concrete spraying efficiency, quality, and safety.
FAQ:
What is the brand name of the Robotic Shotcrete Machine?
The brand name of the Robotic Shotcrete Machine is POTENTIAL / POTENCY.
2.
Where is the Robotic Shotcrete Machine manufactured?
The Robotic Shotcrete Machine is manufactured in China.
3.
What is the certification of the Robotic Shotcrete Machine?
The Robotic Shotcrete Machine is certified with ISO9001:2015.
4.
What is the minimum order quantity of the Robotic Shotcrete Machine?
The minimum order quantity of the Robotic Shotcrete Machine is 1 unit.
5.
What are the payment terms for purchasing the Robotic Shotcrete Machine?
The payment terms for purchasing the Robotic Shotcrete Machine are T/T and L/C.
