Travelling Speed 0 - 20km/H Robotic Shotcrete Machine 4 Wheels Driving / Steering / Crab
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | POTENTIAL / POTENCY |
| Certification: | ISO9001:2015 |
| Model Number: | KC2515/3016W |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Unit |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 1 Unit in 1*40OT |
| Delivery Time: | 45 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 180 units per year |
|
Detail Information |
|||
| Travelling Speed: | 0～20km/h | Steering: | 4 Wheels Driving/Steering/Crab |
|---|---|---|---|
| Motor Rated Power: | 45+22KW/1480rpm | Max Output: | 25~30 Cubic Meters Per Hour |
| Engine: | 4 Cylinder Liquid-cooled Diesel Engine | Item: | KC2515/3016W |
| Shotcrete Distance Upward: | 15~16m | Outside Dimension(L×W×H): | 7410x2200x3200mm |
| Highlight: | 20km/H Robotic Shotcrete Machine,Robotic Shotcrete Machine 4 Wheels |
||
Product Description

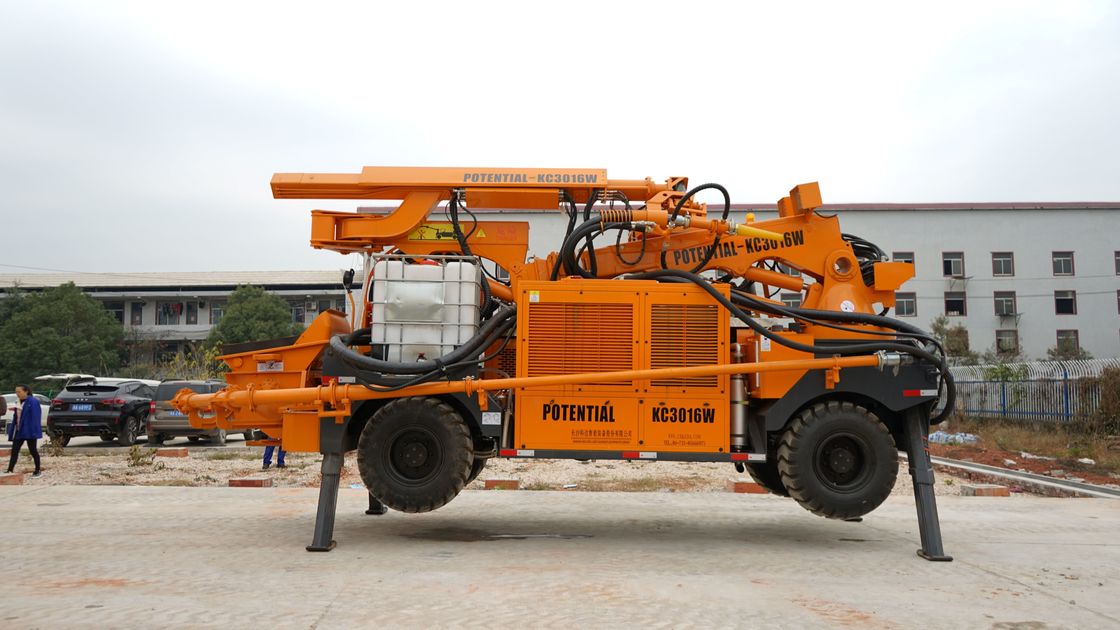

Robotic Shotcrete Machine KC2515/3016W with 4 Wheels Driving/Steering/Crab by Travelling Speed 0～20km/h
Product Description:
The outside dimension of the Robotic Shotcrete Machine is 7410x2200x3200mm, making it easy to transport and maneuver in tight spaces. The traveling speed of the machine is 0-20km/h, providing a fast and efficient spraying process. The machine is powered by a 4 Cylinder Liquid-cooled Diesel Engine that ensures reliable performance and low fuel consumption.
The Robotic Wet Concrete Sprayer is designed to provide high-quality and precise spraying results. With its automated spraying system, it eliminates the need for manual labor, reducing the risk of human error, and increasing productivity. The machine is equipped with advanced technology that allows for precise spraying and consistent thickness of the sprayed material.
The Robotic Concrete Sprayer is also equipped with a user-friendly control panel that provides easy operation and monitoring of the spraying process. It is designed to be easy to maintain and clean, ensuring long-lasting and optimal performance.
In summary, the KC2515/3016W Robotic Wet Concrete Sprayer is an Automated Concrete Spraying System that provides efficient, reliable, and precise spraying results. Its 4 Wheels Driving/Steering/Crab steering system, compact size, and advanced technology make it ideal for a variety of applications. Whether it's tunneling, mining, or construction, this Robotic Shotcrete Machine is the perfect solution for your concrete spraying needs.
Technical Parameters:
The following table provides detailed technical specifications for four different machine models: KC3019, KC3017, KC3016W, and KC2515W.
| Item | KC3019 | KC3017 | KC3016W | KC2515W |
|---|---|---|---|---|
| Weight(T) | 17 | 15.6 | 15 | |
| Travelling speed(km/h) | 0～18 | 0～20 | ||
| Grade ability(°) | 25 | 25 | ||
| Approach/departure angle(°) | 30/18 | 22/22 | ||
| Ground clearance(mm) | 400 | 305 | ||
| Steering | 4 wheel driving/steering/crab | wheels | ||
| Outside dimension(L×W×H)(mm) | 8265×2500×3200 | 7410x2200x3200 |
| Item | KC3019 | KC3017 | KC3016W | KC2515W |
|---|---|---|---|---|
| Theoretical pump capacity (m³/h) | 4～30 | 7～30 | 7～25 | |
| Filling height(mm) | ＜1200 | ＜1200 | ||
| Max.aggregate size(mm) | ≤16 | ≤16 | ||
| Max. theory outlet pressure (MPa) | 7.5 | 7.5 | ||
| Pipe diameter(mm) | 125 | 125 | ||
| Concrete cylinder diameter(mm) | 180 | 180 | ||
| Concrete cylinder moving distance(mm) | 1000 | 800 | ||
| Hydraulic cylinder(cylinder diameter/pole diameter)(mm) | 100/60 | 100/60 | ||
| Hydraulic cylinder moving distance(mm) | 1000 | 800 | ||
| Hopper capacity(L) | 600 | 400 | ||
| Max.theoretical horizontal deliver distance(m) | / | |||
| Max.theoretical vertical deliver distance(m) | / |
| Item | KC3019 | KC3017 | KC3016W | KC2515W |
|---|---|---|---|---|
| Rated Power(kW/rpm) | 55/1480 | 45+30/1480 | 45+22/1480 | |
| Rated voltage(V) | three-phase/380(optional) |
| Item | KC3019 | KC3017 | KC3016W | KC2515W |
|---|---|---|---|---|
| Mode | 4 cylinder liquid-cooled diesel engine | |||
| Rated power(kW/rpm) | 82/2200 | |||
| Diesel tank volumn (L) | 120 |
| Item | KC3019 | KC3017 | KC3016W | KC2515W |
|---|---|---|---|---|
| Mode | screw type | /(outsourcing) | ||
| Rated Power((kW) | 75 | |||
| Max.wind flow(m³/min ) | 13.5 | ＞10 (required inlet flow) | ||
| Exhaust pressure(MPa) | 0～0.7 | ＞0.5(required inlet pressure) |
| Item | KC3019 | KC3017 | KC3016W | KC2515W |
|---|---|---|---|---|
| Boom mode | foldable + telescopic | |||
| Max.spary area Upward(m) | 19 | 17 | 16 | 15 |
| Max.spary area Forward(m) | 17 | 15 | 14 | 13 |
| Max.spary area Downward(m) | 9 | 8 | 7.5 | 7 |
| Max.spary area Width(m) | 34 | 30 | 28 | 26 |
| Min.spary area Upward(m) | 4 | |||
| Min.spary area Forward(m) | 2～3 | |||
| Min.spary area Downward(m) | 0 | |||
| Min.spary area Width(m) | 6 | |||
| Main boom rotate angle(°) | 270 | |||
| Main boom tilt angle(up/down)(°) | 60/23 | |||
| Main boom telescopic length(mm) | 2000 | 1600 | 1300 | |
| Telescopic boom rotate angle(°)(L/R) | 180/60 | |||
| Telescopic boom tilt angle(up/down)(°) | 30/62 | |||
| Telescopic boom stretch length(mm) | 2000 | 2000 | 1700 | |
| Nozzle rotate(°) | 360 | |||
| Nozzle swing (°) | 240 | |||
| Nozzle brush(°) | 360 continuous | |||
| Nozzle diameter(°) | 80 |
| Item | KC3019 | KC3017 | KC3016W | KC2515W |
|---|---|---|---|---|
| Flow rate(L/h) | 0～1200 | 60～720</td |
Applications:

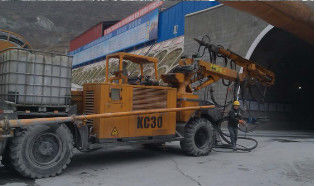

Wet shotcrete operations are commonly used in various industries, including railways, highways, tunnels, water conservancy, hydropower, underground mine excavation, underground factories, and construction engineering. These operations play a significant role in the construction industry and are crucial for ensuring top-notch quality and safety standards.
Due to the ever-growing demands for faster, more efficient, and quality concrete spraying tasks, the use of wet spraying trolleys has become increasingly popular. These trolleys are widely used by several construction units to enhance concrete spraying efficiency while maintaining a safe working environment.
The application of wet spraying trolleys provides numerous benefits, including increased speed and performance, better material use, and most importantly, enhanced safety standards. With the use of these highly efficient trolleys, construction units can complete their tasks on time, ensuring top-notch results for their clients.
Overall, it's safe to say that wet spraying trolleys have revolutionized the construction industry and are an essential tool for any construction unit seeking to improve its operational efficiency, quality, and safety standards.
Support and Services:
The Robotic Shotcrete Machine product comes with a range of technical support and services to ensure optimal performance and longevity:
- Installation guidance and support
- Training for operators and maintenance personnel
- Regular maintenance and servicing options
- Remote monitoring and diagnostic services
- 24/7 technical support hotline
- On-site repairs and troubleshooting
Our team of experienced technicians and engineers are committed to providing prompt and effective support to help you get the most out of your Robotic Shotcrete Machine.
