KDM12A-1BCDL 32.6kw Anchor Rod Trolley For 32mm - 45mm Drilling Diameter Needs
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | POTENTIAL / POTENCY |
| Certification: | ISO9001:2015 |
| Model Number: | KDM12A-1BCDL |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Unit |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 1 Unit in 1*40'HQ |
| Delivery Time: | 45 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 120 units per year |
|
Detail Information |
|||
| Applicable Bolt Length: | 1800mm | Model: | KDM12A-1BCDL |
|---|---|---|---|
| Working Area(Tunnel Height): | 2900~5000mm | Drilling Diameter: | 32-45mm |
| Rock Drill Impact Frequency: | 7.5Kw | Total Power: | 32.6kw |
| Telescope Function: | Yes | Drilling Speed: | 0.8~2m/min |
| Highlight: | 32.6kw Anchor Rod Trolley,Anchor Rod Trolley 32mm |
||
Product Description

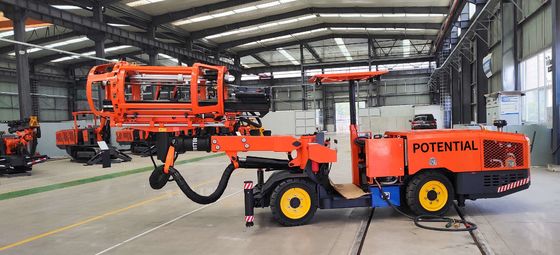

KDM12A-1BCDL Anchor Rod Trolley Perfect Choice for 32-45mm Drilling Diameter Needs
Product Description:
The KDM12A-1BCDL anchor rod trolley is a game-changer that has turned the conventional "double slide+double rock drill" approach to anchoring on its head. It introduces a new approach that includes a "single slide+single rock drill," which makes the whole anchoring process automated. This approach has made the anchoring work more efficient, safe, easy, and even entertaining.
With the KDM12A-1BCDL, drilling, hanging of nets, and anchoring are all automated, making the anchoring process smoother and much more straightforward. The machine's compact size and flexible mobility make it perfect for use in underground cages of all kinds. The vehicle module design also allows for easy disassembly and assembly, making it transport-ready.
The KDM12A-1BCDL anchor rod trolley is poised to revolutionize the anchoring process, making it easier, safer, and more productive than ever before.
Features:
Introducing our latest technology - the Remote Control Electric Proportional Operating System. With this system, operation is made easy, safe, and reliable, ensuring precise positioning for your drilling needs.
Our Universal Modular Chassis Design is also readily available to make equipment maintenance and management a breeze. You can easily access and maintain your equipment, making sure it is always in its best condition.
The Automatic Drilling and Anti-Jamming Function is also included in our technology - prolonging the lifespan of your drilling tools while reducing failure rates.
For added convenience, the system's Automatic Recording of Construction Data feature allows for easy management and analysis of all your construction data. Simply upload them through our dedicated APP and keep track of your progress effortlessly.
Technical Parameters:
Body
- Overall size(LxWxH) mm: 6800×1290×1550(2350 Rising height)
- Rock drill impact frequency kW: 7.5
- Hole diameter mm: 32- 45
- Drilling speed m/min: 0.8-2
- Applicable bolt length: 1800 (standard)
- Working area(Tunnel height) mm: 2900~5000 (standard)
- Other bolting rob(Tunnel height) mm: Length +1100
- Bolting rob capacity: 10
- Net hanging: YES
- Service voltage: 380VAC 50Hz
- Total power kW: 32.6
- Total power kg: ≈6600
Running Chassis
- Chassis structure: Articulated
- Running from: Rubber wheel
- Running speed km/h: 0-6
- KW: 44.6
- Ground clearance mm: 150
- Grade ability(smooth-riding surface): 14°
- Min.turning radius m: 2500(Inner side)/4000(Out side)
Boom
- Boom Quantity: 1
- Boom type: Mixed coordinate boom
- Telescope function: YES
Bolting Mechanism
- Guide rail length mm: 2750
- Drill pipe length mm: 1960
- Hole depth mm: 1900
- Bolting rob type: Tube seam
- Bolting plate size mm: ≤150
- Bolting rob installation: Auto
Air System
- Air flow m³/min: 0.21
- Air pressure Mpa: 02-03
- Water flow m³/min: 2
- Flusing water pressure Mpa: 0.8~1.2
- Water inlet pressure Mpa: 0.3~0.6
Other Configuration
- Cable reel: Optional
- Quantity of baskets: YES
- Lifting ceiling: YES
- Lighting: 3 High brightness LED lights
- Extinguisher: YES (4kg*1 Hand-held dry powder fire extinguisher 4kg×1)
Applications:
The main application scenarios of mining anchor rod trolleys include geological environments such as mines, tunnels, and underground engineering. It is mainly used to support unstable rock layers, ensuring the safety and stability of the working face.
The specific application scenarios include:
- Mining: In mining operations, the mining anchor rod trolley is used to support the rock layers where the mine tunnels, vehicles, and equipment are located, ensuring the safety of the working face. Especially in complex or narrow construction sites, anchor rod trolleys can better meet work requirements and improve production efficiency.

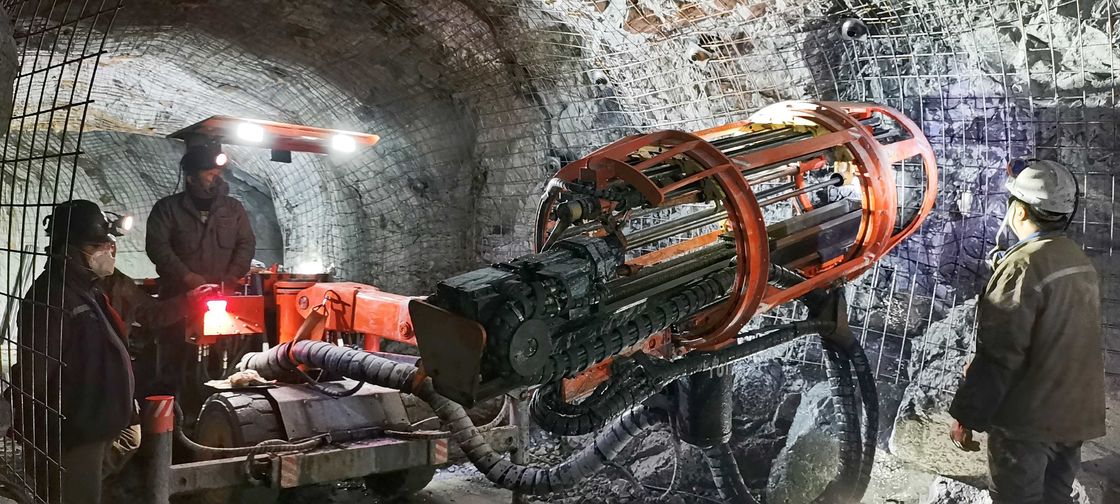

- Tunnel: In tunnel construction, anchor rod trolleys are used to support the tunnel roof and side walls, completing processes such as drilling anchor rods, hanging nets, and installing anchor rods, greatly reducing support operation time and improving construction efficiency.
- Underground engineering: In underground engineering construction such as excavation of underground factories, anchor rod trolleys can perform blasting drilling, anchor rod drilling, automatic clamping and pushing of anchor rods, automatic grouting and other operations to meet various construction needs.
Customization:
Our KDM12A-1BCDL model comes equipped with a telescope function and has a working area (tunnel height) of 2900~5000mm. The total power of the rock drill is 32.6kw, and it has a rock drill impact frequency of 7.5Kw. In addition, we offer an anchor rod trolley for added convenience.
Packing and Shipping:
Product Packaging:
- One Jumbo Rock Drill
- One set of drill bits
- Instruction manual
Shipping:
- Shipping method: UPS Ground
- Shipping time: 3-5 business days
- Shipping cost: $25
