KD06A-1BCD Hydraulic Jumbo Rock Drill For Small Underground Mining Operations
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | POTENTIAL / POTENCY |
| Certification: | ISO9001:2015 |
| Model Number: | KD06A-1BCD |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Unit |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 1 Unit in 1*40'HQ |
| Delivery Time: | 45 Working Days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 120 Units Per Year |
|
Detail Information |
|||
| Model: | KD06A-1BCD | Drill Depth: | 2700mm |
|---|---|---|---|
| Color: | Customized | Drilling Diameter: | 43-76mm |
| Power: | 32.6kW | Climbing Ability: | 14° |
| Drilling Speed: | 0.8-2m/min | Cable Reel: | Yes 60m |
| Highlight: | Mining Jumbo Rock Drill,Underground Jumbo Rock Drill,Hydraulic Jumbo Drilling Underground |
||
Product Description
Product Description
KD06A-1BCD Top-Rated Jumbo Rock Drill for Small Underground Mining Operations

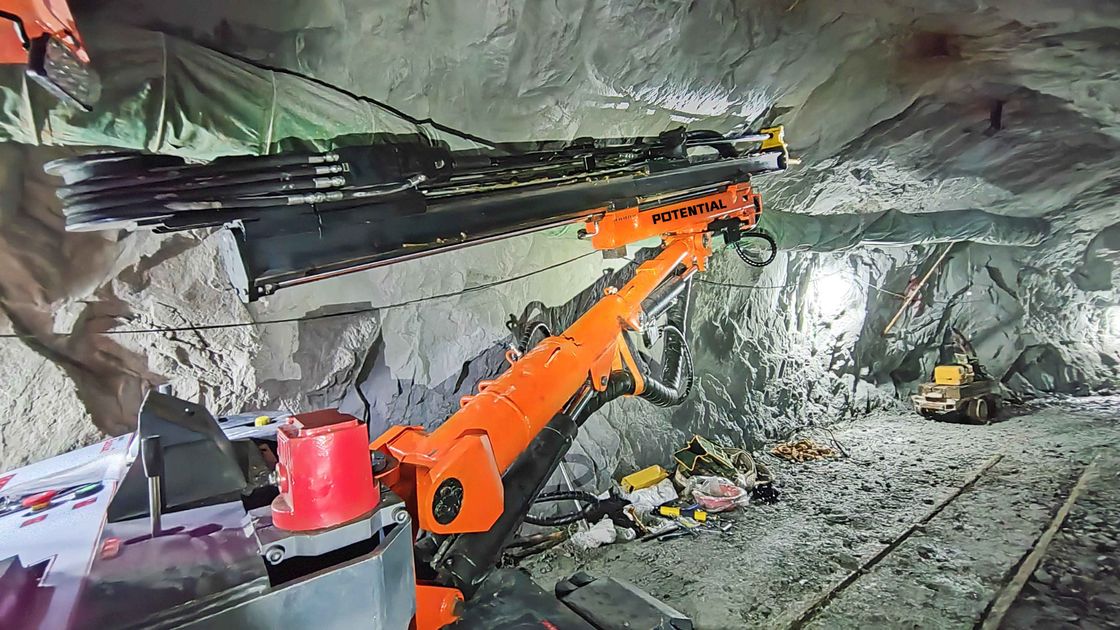

The KD06A-1BCD mining hydraulic rock drilling rig is a specialized drilling rig used for excavation and mining operations in small underground mining faces in China. The vehicle has a compact structure, simple handling, small turning radius, flexible maneuverability, and is convenient for working in small spaces. Crawler walking is suitable for all terrain conditions.
Applications
Mining: Suitable for small mines' alleyway operations, able to quickly locate each blast hole and operate without blind spots;
Tunnels: Widely used in tunnel construction in highway, railway, water conservancy, mining, and national defense engineering construction;
Culvert: Suitable for excavation projects of culverts;
Metallurgy: In major projects such as metallurgy, rock drilling rigs can efficiently carry out rock drilling and drilling operations
one;
Petrochemical industry: In industries such as petrochemicals, rock drilling rigs can provide stable rock drilling operations and improve work efficiency.
Features
1, High power diesel engine: provides powerful power support to ensure stable operation of equipment in high slope terrain;
2, Translational drilling arm structure: accelerates rapid positioning between each borehole, operates without dead corners, and is suitable for small mine level roadway operations;
3, Maximum transition speed: up to 5km/h, greatly improving transition efficiency;
4, Adaptable to terrain: capable of operating in all terrain conditions within a slope of 14 °, with strong adaptability.
Specifications
| Main Technical parameters of KD06A-1BCD | |
| B o d y | |
| Overall size(LxBxH) m | 7.05×1.06×1.55(2.35With ceiling) |
| Hole diameter mm | φ43- φ76 |
| Depth of drilling | 2.7 |
| Drilling speed m/min | 0.8-2 |
| Section(B×H)m | 2×2-3.5×3.5 |
| Rock drill impact frequency kW | 7.5 |
| Service voltage | 380VAC 50Hz |
| Total power kW | 32.6 |
| Total power kg | ≈6200 |
| Running chassis | |
| Chassis structure | Rigidity whole body |
| Running from | Crawler track |
| Running speed km/h | 0-3 |
| Ground clearance mm | 240 |
| Grade ability(smooth-riding surface) | 14° |
| Min.turning radius m | 3.4(Inner side)/4.9/5.1(Out side) |
| Arm | |
| Quantity of Arm | 1 |
| Type of arm | Mixed coordinate boom |
| Thruster | |
| Total length m | 4.42 |
| Drill pipe length m | 3.09 |
| Hole depth m | 2.70 |
| Air system | |
| Drill lubrication air volume m/min | 0.21 |
| Drill lubrication air pressure Mpa | 0.2-0.3 |
| Water system | |
| Water supply m³/h | 2 |
| Rock drill water pressure Mpa | 0.8-12 |
| Colder entrance water pressure Mpa | 0.3-0.6 |
| Other configuration | |
| Cable reel | YES 60M |
| Quantity of baskets | YES |
| Lifting ceiling | Optional |
| lighting | 3 High brightness LED lights |
| Extinguisher |
(4kg*1) Hand-held dry powder fire extinguisher 4kg×1 |
