47.6kw Anti Jamming Jumbo Rock Drill Automatic Stop Of Impact At The End Point
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | POTENTIAL / POTENCY |
| Certification: | ISO9001:2015 |
| Model Number: | KD12A-1BCD(L) |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Unit |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 1 Unit in 1*40'HQ |
| Delivery Time: | 45 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 120 units per year |
|
Detail Information |
|||
| Model: | KD12A-1BCD(L) | Total Power: | 47.6kw |
|---|---|---|---|
| Drilling Diameter: | 43-76mm | Rock Drill Impact Frequency: | 7.5Kw |
| Section(B×H): | 2×2-5.6×4m | Drilling Speed: | 0.8~2m/min |
| Hole Depth: | 2.7m | Running From: | Wheel Tires Or Crawler |
| Highlight: | Anti Jamming Jumbo Rock Drill,47.6kw Jumbo Rock Drill |
||
Product Description
KD12A-1BCD(L) Rock Drill Equipped With Functions Such As Automatic Stop Of Impact At The End Point, Automatic Anti Jamming Drill
Product Description:

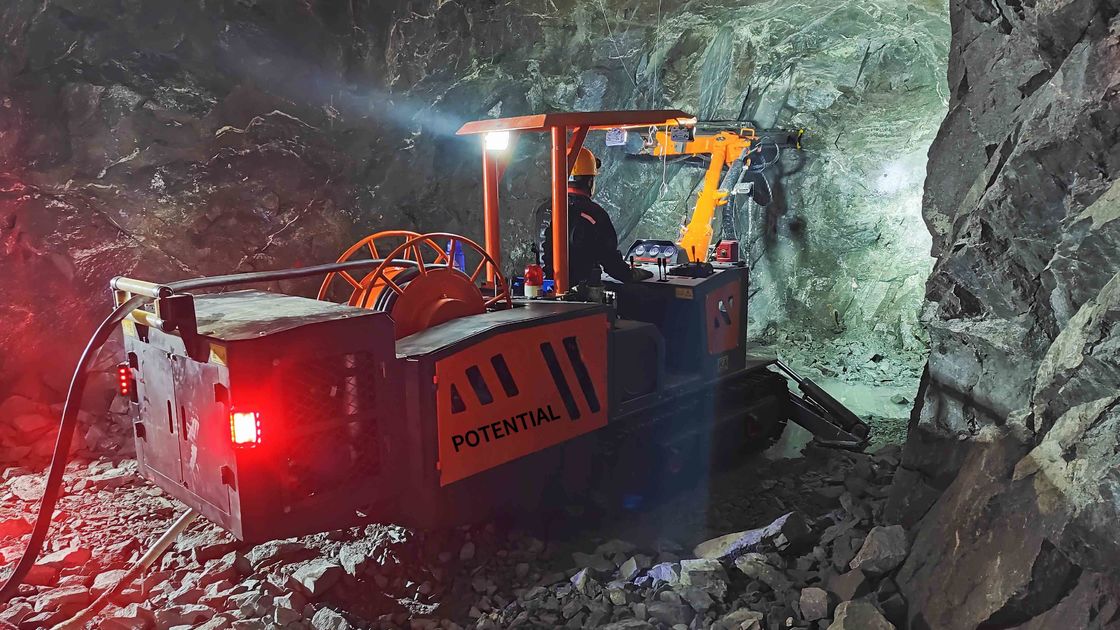

KD12A-1BCD(L) Can meet all terrain working conditions within a slope of 14 °. Equipped with a high-power diesel engine, the transition speed can reach 5Km/h, achieving high-speed transition. The polar coordinate mechanical translation drilling arm structure with independent intellectual property rights accelerates the rapid positioning between each borehole, and there are no blind spots or dead corners on the entire working face. Suitable for alleyway operations in small mines.
Features:
The whole machine adopts full hydraulic drive, and the rock drilling speed can reach 0.8-2 meters per minute. The system is equipped with functions such as automatic stop of impact at the end point, automatic anti jamming drill, and induction of water slag discharge, which are easy to operate, safe and reliable.

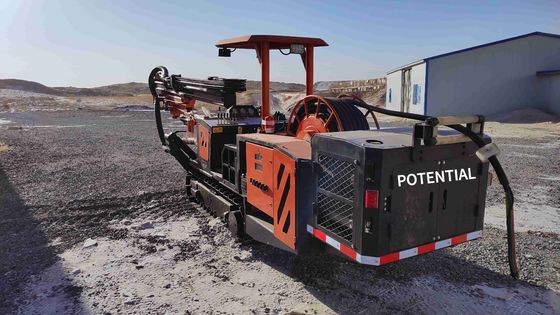

The aircraft has a small body, compact structure, low center of gravity, flexible maneuverability, stable operation, and strong climbing ability. Using track walking, rock drilling can be carried out on a 14 ° inclined slope. The flexible hydraulic rock drilling mechanism can perform rock drilling operations on the working face, roof, side walls, and floor of the tunnel. This machine can not only drill and excavate blast holes, but also conveniently drill anchor holes according to the size of the section.
Technical Parameters:
| Main Technical Parameters of KD12A-1BCDL | |
| Body | |
| Overall size(LxBxH) m | 10.5×1.45×2.1(2.94Wih ceiling) |
| Hole diameter mm | φ43- φ76 |
| Drilling speed m/min | 0.8-2 |
| Section(B×H)m | 2.5×2.5-5×5 |
| Rock drill impact frequency kW | 7.5 |
| Service voltage | 380VAC 50Hz |
| Total power kW | 57.1 |
| Total power kg | ≈8500 |
| Running chassis | |
| Chassis structure | Articulated |
| Running from | Rubber wheel |
| Running speed km/h | 0-9 |
| KW | 50 |
| Ground clearance mm | 185 |
| Grade ability(smooth-riding surface) | 14° |
| Min.turning radius m | 4.2(Inner side)/6.0(Out side) |
| Arm | |
| Quantity of Arm | 1 |
| Parallel function | YES |
| Telescope function | YES |
| Thruster | |
| Total length m | 4.42 |
| Drill pipe length m | 3.09 |
| Hole depth m | 2.70 |
| Air system | |
| Drill lubrication air volume m/min | 0.21 |
| Drill lubrication air pressure Mpa | 0.2-0.3 |
| Water system | |
| Pipe reel | NO |
| Water supply m³/h | 2 |
| Rock drill water pressure Mpa | 0.8~12 |
| Colder entrance water pressure Mpa | 0.3~0.6 |
| Other configuration | |
| Cable reel | YES |
| Quantity of baskets | N O |
| Lifting ceiling | YES |
| lighting | 5 High brightness LED lights |
| Extinguisher |
(4kg*1) Hand-held dry powder fire extinguisher 4kg×1 |
Applications:
Mainly suitable for excavation and excavation work of small and medium-sized tunnels, tunnels, and culverts in mining, metallurgy, hydropower, railway, highway and other fields. The machine adopts electric and diesel engine walking, and diesel engine walking can greatly improve the equipment transfer speed, construction efficiency, and construction quality.
