400m Drilling Depth Raise Borer Equipment with Versatile Applications KDTJ-4000L Specially for Mining
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | POTENTIAL / POTENCY |
| Certification: | ISO9001:2015 |
| Model Number: | KDTJ-4000L |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Unit |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 1 Unit in 1*40'HQ |
| Delivery Time: | 45 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 120 units per year |
|
Detail Information |
|||
| Maximum Climbing Capacity: | 14° | Travelling Pattern: | Diesel Crawler Self-propelled |
|---|---|---|---|
| Model: | KDTJ-4000L | Nominal Reaming Diameter: | 4000mm |
| Maximum Thrust Of Guide Hole: | 4300Kn | Motor Power: | 200Kw |
| Drilling Depth: | 400m | Equipment Dimensions (Transportation Status): | 6080X1960X2200mm |
| Highlight: | mining raise borer machine,mining raise borer equipment |
||
Product Description

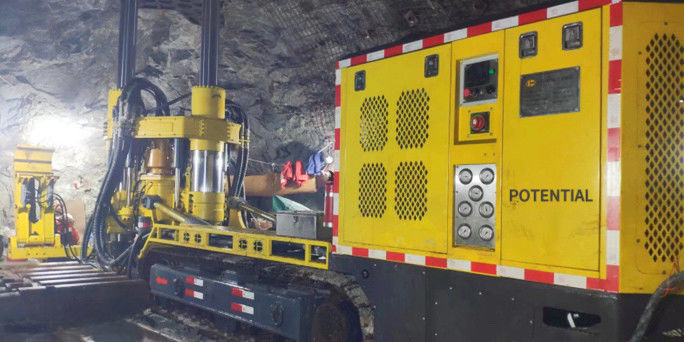

400m Drilling Depth Raise Borer Equipment with Versatile Applications KDTJ-4000L Specially for Mining
Product Description:
Our company has designed the KDTJ-4000L raise borer to meet the new requirements of underground mining technology. This model improves upon the original drilling parameters and utilizes system integration technology to make the machine more compact.
The walking portion of the machine features track integrated walking, which enables it to better maneuver in tunnel environments.
Overall, the KDTJ-4000L is a highly efficient and effective raise borer that is tailored to meet the specific needs of modern underground mining operations.
Features:
The fully automatic unloading rod is a cutting-edge technology that eliminates the need for manpower in construction sites. This innovation significantly improves construction efficiency while ensuring that the work is precisely done and according to the desired specifications.
The automatic anti deviation control system for guide holes is a technological breakthrough that eliminates drilling deviation that may be caused by poor manual operation or rock structure. This innovative system ensures a high level of accuracy during the drilling process and the resulting construction project is precise and durable.
The remote and line control dual-use operation is a simple, yet brilliant, feature that enables programmatic control of the whole drilling process. This feature has minimal human intervention, making it easy to learn and operate. With just a short training period, general personnel can operate the equipment effectively and efficiently.
The crawler self-propelled walking feature is designed to make the machine easy to move around. This feature ensures that the drilling machine can be transported around a construction site without the need for heavy lifting equipment, thereby saving both time and money.
The high work efficiency of the drilling machine is due to high parameter indicators, large surplus torque and tension, and its compatibility with construction with a diameter of 4.5 meters. This feature makes the drilling machine ideal for large construction projects and those that require efficient and precise drilling services.
The electrical and hydraulic components are made of fully imported components, ensuring high reliability. The hydraulic system of the drilling machine adopts the German Linde hydraulic closed hydraulic system, which has high hydraulic transmission efficiency and low reactive power. These features ensure that the equipment operates optimally for longer periods and with minimal maintenance.
The drilling machine controller has four types of drilling machines: 4.0m, 3.5m, 3.0m, and 2.5m, which are ideal for aperture matching operations. The drilling machine's different gear ranges can be selected to meet the drilling needs of different apertures. This feature ensures that the equipment can be customized to the construction project's specific needs.
The drilling machine's module integrated assembly is designed to make maintenance and repair easy. The machine's small size enables it to adapt to smaller tunnel conditions, making it an ideal choice for construction projects with limited space.
Technical Parameters:
| Component | Name | Unit | KDTJ-4000L Raise Borer |
| Host | Rated Speed | r/min | Guide Hole:28 |
| Reaming:6 | |||
| Rated Torque | kN.m | 258 | |
| Maximum Thrust of Guide Hole | kN | 4300 | |
| Maximum Reaming Tension | kN | 4300 | |
| Nominal Reaming Diameter | mm | 4000 | |
| Depth of Drilling | m | 400 | |
| Drilling Angle | ° | 60～90 | |
| Weights | t | 23 | |
Hydraulic and Electrical |
Rated Pressure | Mpa | Auxiliary Pump:35 |
| Main Pump :35 | |||
| Total Motor Power | kW | 200 | |
| Rated Voltage | V | 380/660 | |
Walking System |
Travelling Pattern | - | Diesel Crawler Self-propelled |
| Travelling Speed | km/h | 1.2/2.4 | |
| Maximum Climbing Capacity | ° | 14 | |
| Minimum Turning Radius | mm | 4500 | |
| Ground Clearance | mm | 260 | |
| Diesel Engine Rated Power | kW | 96 | |
| Rated Speed of Diesel Engine | r/min | 2200 | |
Equipment Dimensions (Transportation Status) |
mm | 6080X1960X2200 | |
Equipment External Dimensions (Working Status) |
mm | 7150X2775X3900 | |
Applications:
Mining: Our raise boring machines are mainly used for the following purposes:Install anchor rods and wire rope nets to enhance the stability of the mine.
Establish a mine ventilation system to ensure the safety of miners during their operations.
Eliminate accumulated water in the mine to prevent mine flooding.
Transport ore to improve the efficiency of ore transportation.
Packing and Shipping:
Product Packaging:
- The Raise Borer Machine will be securely packaged in a wooden crate.
- The crate will be labeled with the product name, dimensions, and weight.
- Inside the crate, the machine will be wrapped in protective materials to prevent any damage during shipping.
Shipping:
- The Raise Borer Machine will be shipped via freight carrier.
- The shipping cost will be included in the total price of the machine.
- Delivery times will vary depending on the destination.
- Customers will be provided with a tracking number once the machine has been shipped.
