161Kw Raise Borer Machine 3000mm Nominal Reaming Diameter 500m Drilling Depth

Product Description:

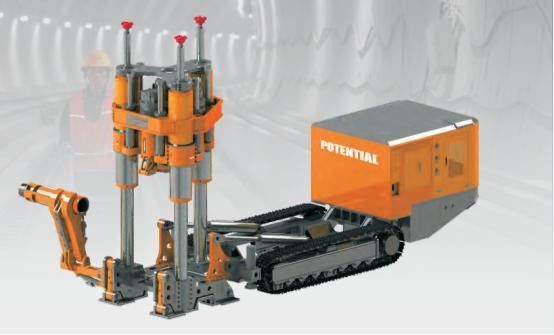

The KDTJ-3000L Raise Borer Machine is a diesel crawler self-propelled machine that offers ease of mobility and flexibility. It is designed to navigate through rough and uneven terrains with ease, making it an ideal choice for underground mining operations. The traveling pattern of the machine ensures that it can access even the most challenging mining sites, providing excellent results for mining companies.

This mining DTH drill is designed to provide high precision and accuracy in drilling. The machine's advanced technology ensures that it can drill into the earth's surface without damaging the surrounding rock formations. This level of precision ensures that mining companies can extract minerals without affecting the environment.

The KDTJ-3000L Raise Borer Machine is also designed with safety in mind. It is equipped with advanced safety features that protect operators from potential accidents while working. The machine's ergonomic design ensures that operators can work for extended periods without experiencing fatigue.

In conclusion, the KDTJ-3000L Raise Borer Machine is a top of the line mining DTH drilling rig that offers excellent results for mining companies. Its high precision and accuracy, coupled with its advanced safety features, make it an ideal choice for underground mining operations. If you are looking for a machine that can help you increase mining efficiency and productivity, then the KDTJ-3000L Raise Borer Machine is the perfect choice for you.

Features:

The technology adopted by this equipment includes a low-speed high-torque motor and fully hydraulic drive technology. This results in efficient and effective operation of the equipment for long periods of time.

Furthermore, this equipment has a reasonable structure that allows for easy operation. With this feature, operators can easily understand how to use the equipment, reducing instances of complications during use.

Additionally, the equipment features a tire-type chassis walking system that provides high traction and strong climbing ability. These characteristics ensure that the equipment can reliably operate on various types of terrain.

The equipment has high torque, allowing for stepless speed regulation for drilling. This enhances the accuracy of drilling operations while also ensuring efficient drilling, even in tough conditions.

Moreover, this equipment is overall compact, easy to install and convenient to use. This makes for straightforward setup and reduces downtime.

This equipment also features high pore-forming accuracy, which is critical for operations that demand precision and accuracy.

The equipment possesses strong ability and convenient transition, making it easy to move the equipment as operational requirements change. Additionally, it has good impact resistance and is reliable in operation, making it a long-lasting investment.

This equipment is capable of adapting to the operational requirements of higher rock hardness and large diameter shafts, providing increased versatility in application.

With its modular design, this equipment is easy to maintain and replace. This ensures maximum uptime and reduces maintenance costs.

Lastly, the equipment has advanced wireless remote control technology. This feature allows for safer and more convenient remote and multi-directional operations.

Technical Parameters:

The component name unit of the KDTJ-3000L Raise Borer includes:

• Guide Hole: 24
• Reaming: 10

The host of the KDTJ-3000L Raise Borer has the following specifications:

• Rated Speed (r/min): 172
• Maximum Thrust of Guide Hole (kN): 1400
• Maximum Reaming Tension (kN): 2740
• Nominal Reaming Diameter (mm): 3000
• Depth of Drilling (m): 500
• Drilling Angle (°): 60～90
• Weights (t): 17

The hydraulic and electrical components of the KDTJ-3000L Raise Borer have the following specifications:

• Rated Pressure (Mpa): Auxiliary Pump:28, Main Pump:28
• Total Motor Power (kW): 75+75+11
• Rated Voltage (V): 380/660

The walking system of the KDTJ-3000L Raise Borer has the following specifications:

• Travelling Pattern: Diesel Crawler Self-propelled
• Travelling Speed (km/h): 1.5/3
• Maximum Climbing Capacity (°): 14
• Minimum Turning Radius (mm): 4600
• Ground Clearance (mm): 200
• Diesel Engine Rated Power (kW): 73.5
• Rated Speed of Diesel Engine (r/min): 2200

The equipment dimensions of the KDTJ-3000L Raise Borer in transportation status are:

• Length (mm): 6910
• Width (mm): 1750
• Height (mm): 2020

The equipment external dimensions in working status of the KDTJ-3000L Raise Borer are:

• Length (mm): 7500
• Width (mm): 2800
• Height (mm): 3800

Applications:

The KDTJ-3000L is suitable for a wide range of drilling applications, including drilling blastholes, ventilation shafts, and exploration holes. It is ideal for use in underground mining operations, as it can easily navigate through narrow tunnels and confined spaces. Its compact design makes it easy to transport and set up in a variety of locations.

The Underground Mining Down-to-Hole Drill has a motor power of 161Kw and a maximum climbing capacity of 14°, making it capable of drilling to depths of up to 500m. It also has a maximum thrust of guide hole of 1400Kn, ensuring that it can easily penetrate even the toughest rock formations.

The KDTJ-3000L is a versatile machine that can be used in a variety of scenarios, including coal mining, metal mining, and non-metal mining. It is also suitable for use in geological exploration, hydrological well drilling, and other drilling applications.

The machine is available for purchase with a minimum order quantity of 1 unit, and its price is negotiable. It is packaged in 1*40'HQ and has a delivery time of 45 working days. The payment terms are T/T and L/C, and the supply ability is 120 units per year.

The dimensions of the equipment in transportation status are 6910X1750X2020, making it easy to transport to any location. Its compact design and powerful motor make it ideal for use in a variety of drilling applications, and its high-quality construction ensures that it will last for many years of use.

In conclusion, the POTENTIAL / POTENCY KDTJ-3000L Underground Mining Down-to-Hole Drilling Rig is a versatile and efficient machine that is ideal for use in a variety of underground mining applications. Its compact design, powerful motor, and high-quality construction make it a reliable and cost-effective choice for any mining operation.

Support and Services:

The Raise Borer Machine is a high-performance drilling rig designed for underground mining and civil engineering operations. It is equipped with advanced technology to ensure efficient drilling and excavation of tunnels, raise boreholes, and shafts. Our product technical support and services include:

• Installation and commissioning of the machine
• On-site operator training and technical support
• Maintenance and repair services
• Supply of genuine spare parts and consumables
• 24/7 remote technical assistance

Our team of experienced engineers and technicians are dedicated to providing comprehensive support and services to ensure optimal performance of the Raise Borer Machine throughout its lifespan.

Packing and Shipping:

Product Packaging:

• The Raise Borer Machine will be packed in a sturdy wooden crate to ensure its safety during transportation.
• The crate will be marked with the product name and handling instructions to avoid any mishandling during shipping.
• All necessary accessories and tools will be securely packed inside the crate to ensure that they are not misplaced during transportation.
• A user manual will also be included inside the crate for the customer's reference.

Shipping:

• The Raise Borer Machine will be shipped via sea freight to minimize the shipping cost.
• The shipping will be arranged by our logistics team, who will keep the customer informed about the shipping status.
• The estimated shipping time will be provided to the customer, and any delays will be communicated in advance.
• The customer will be responsible for any custom duties or taxes levied by their respective countries.
