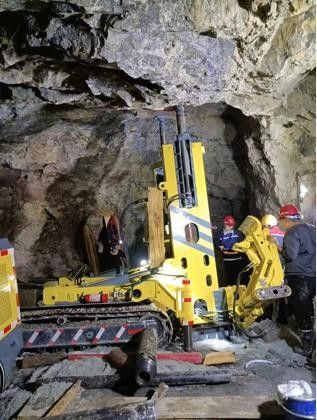

Underground Mining Raise Borer Machine KDTJ-3000L 6910X1750X2020 Dimensions

Product Description:

The Raise Borer Machine is designed with the latest technology and engineering standards, making it capable of drilling depths of up to 500m. The model of the machine is KDTJ-3000L, and it comes with a motor power of 161Kw.

The dimensions of the equipment, while in transportation status, are 6910X1750X2020, making it easy to transport to the mining site. The machine is built with high-quality materials and designed to withstand the harsh conditions of underground mining operations.

Our mining DTH drill is specifically designed for underground mining down-to-hole drilling rig operations, and its versatility makes it ideal for use in various mining projects. The machine is easy to operate and maintain, ensuring maximum productivity and minimal downtime.

So, if you're looking for a reliable and efficient mining DTH drill, look no further than our Raise Borer Machine. Contact us today to learn more about our product and how it can benefit your mining operations.

Features:

The equipment has been designed with the latest technology in mind. It incorporates the use of low-speed high torque motor, as well as fully hydraulic drive technology. This combination makes the equipment highly efficient and reliable.

The equipment has been designed with a reasonable structure, making it easy to operate. The controls have been set up in a user-friendly manner to ensure ease of operations.

The equipment uses a tire type chassis walking system. This system has been designed to provide high traction. The system ensures that the equipment has a strong climbing ability, which makes it ideal for use in various terrains.

The equipment has high torque, stepless speed regulation for drilling. This feature ensures that the drilling is accurate and efficient. It also makes it possible to drill through hard rocks.

The equipment is overall compact, and easy and convenient to install. The modular design incorporated allows for easy maintenance and replacement.

The equipment has high pore forming accuracy. This feature ensures that the equipment delivers excellent results in every operation.

The equipment is strong and has convenient transition. It can be moved from one location to another easily. Its design allows it to be used in various settings, making it an ideal choice for many industrial and mining operations.

The equipment has good impact resistance and reliable operation. It is capable of adapting to the operational requirements of higher rock hardness, as well as large diameter shafts, which makes it highly versatile.

Advanced wireless remote control technology has been incorporated into the equipment. This technology ensures safer and more convenient remote and multi-directional operation. With this technology, the equipment can be operated from a safe distance, making it safer and more efficient.

Technical Parameters:

The KDTJ-3000L Raise Borer is a powerful machine used for drilling deep holes in ground and rock. It is designed for maximum efficiency and ease of operation, making it a popular choice for mining and construction applications. Here are some of its specifications:

• Rated Speed (r/min): Guide Hole - 24, Reaming - 10
• Rated Torque (kN.m): 172
• Maximum Thrust of Guide Hole (kN): 1400
• Maximum Reaming Tension (kN): 2740
• Nominal Reaming Diameter (mm): 3000
• Depth of Drilling (m): 500
• Drilling Angle (°): 60～90
• Weight (t): 17

• Rated Pressure (Mpa): Auxiliary Pump - 28, Main Pump - 28
• Total Motor Power (kW): 75+75+11
• Rated Voltage (V): 380/660

• Travelling Pattern: Diesel Crawler Self-propelled
• Travelling Speed (km/h): 1.5/3
• Maximum Climbing Capacity (°): 14
• Minimum Turning Radius (mm): 4600
• Ground Clearance (mm): 200
• Diesel Engine Rated Power (kW): 73.5
• Rated Speed of Diesel Engine (r/min): 2200

• Transportation Status (mm): 6910X1750X2020
• Working Status (mm): 7500X2800X3800

Applications:

Whether you need to drill ventilation shafts, ore passes, or service holes, this mining DTH drilling machine is the perfect solution. Its maximum thrust of 1400Kn ensures that it can handle even the toughest rock formations. The KDTJ-3000L is also easy to transport, with equipment dimensions of 6910X1750X2020 in transportation status. It is packaged in 1 unit per 1*40'HQ, and delivery time is 45 working days.

With a supply ability of 120 units per year, POTENTIAL / POTENCY's KDTJ-3000L Raise Borer Machine is an ideal choice for any mining operation. It is suitable for a variety of product application occasions and scenarios, including:

• Underground mining operations
• Drilling ventilation shafts
• Creating ore passes
• Service holes for mining equipment and personnel

With a minimum order quantity of 1 unit and negotiable price, the KDTJ-3000L is an affordable and effective solution for any mining operation. Payment terms include T/T and L/C. Contact us today to learn more about how the KDTJ-3000L can help your mining operation thrive.

Support and Services:

Our Raise Borer Machine product comes with comprehensive technical support and services to ensure optimal performance and longevity. Our team of experienced technicians is available to provide product training, troubleshooting assistance, and maintenance services. We offer a range of service packages, including regular maintenance, on-site repairs, and emergency support, to meet the needs of our customers. In addition, we provide access to technical documentation, software updates, and spare parts to keep your Raise Borer Machine operating at peak efficiency. Contact us to learn more about our technical support and services for the Raise Borer Machine.

Packing and Shipping:

Product Packaging:

• The Raise Borer Machine will be packed securely in a wooden crate to ensure safe transportation.
• All necessary equipment and tools will be included in the crate.
• The product will be labeled with the customer's name and delivery address.

Shipping:

• The Raise Borer Machine will be shipped via a reliable freight carrier.
• The shipping cost will be calculated based on the destination and weight of the product.
• The customer will be provided with a tracking number to follow the shipment's progress.
• The estimated delivery time will depend on the destination and shipping method chosen.
