153KW Diesel Engine Arch Installation Trolley Tunnel Arch Frame Trolley
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | POTENTIAL / POTENCY |
| Certification: | ISO9001:2015 |
| Model Number: | KGM12200 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Unit |
|---|---|
| Price: | Negotiable |
| Packaging Details: | FR or Bulk Ship |
| Delivery Time: | 45 Working Days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 120 Units Per Year |
|
Detail Information |
|||
| Model: | KGM12200 | Gradeability: | 25 Degree |
|---|---|---|---|
| Load Capacity: | 2000Kg | Transportation Dimension (L X W X H): | 11000×3600×4300mm |
| Max.Operating Height: | 12m | Max.Operating Width: | 15m |
| Diesel Engine: | 153Kw | Number Of Boom: | Three Boom And Three Platform |
| Highlight: | 153KW Arch Installation Trolley,Diesel Engine Arch Installation Trolley,Tunnel Arch Frame Trolley |
||
Product Description

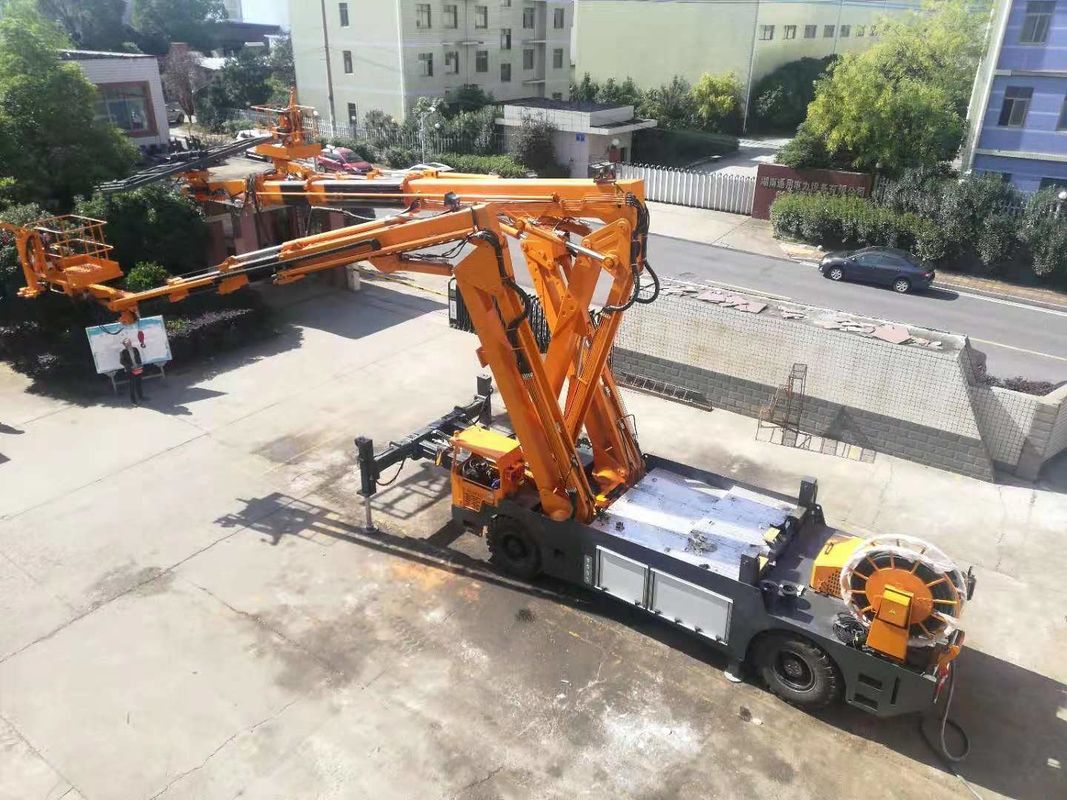

KGM12200 Efficiently Install Arches with Arch Installation Trolley for Tunnel Construction Projects
Product Description:
Potential/Potency KGM12300 Arch Frame Trolley is the first arch frame trolley in China with the ability to erect multiple arches at once.
Features:
1. Adopting engineering chassis, four-wheel drive, strong climbing ability; Four wheel steering with a small turning radius;
2. Three working arm frame, arm frame form: folding+telescopic structure (upper arm+middle arm+lower arm, middle arm extendable); The transportation status can be folded and returned to the frame as a whole;
3. Dual work platform with arch dragging and clamping device on the platform; And the left arm has a crane function for accompanying the vehicle;
4. The main arm has a multifunctional platform that can simultaneously clamp 1-3 arches and quickly lift them into place;
5. Multiple arches can be transported and formed with the vehicle;
6. Controller control, large screen display of parameters, real-time monitoring of system operation status;
2. Three working arm frame, arm frame form: folding+telescopic structure (upper arm+middle arm+lower arm, middle arm extendable); The transportation status can be folded and returned to the frame as a whole;
3. Dual work platform with arch dragging and clamping device on the platform; And the left arm has a crane function for accompanying the vehicle;
4. The main arm has a multifunctional platform that can simultaneously clamp 1-3 arches and quickly lift them into place;
5. Multiple arches can be transported and formed with the vehicle;
6. Controller control, large screen display of parameters, real-time monitoring of system operation status;
7. The arm frame control intelligent assistance system can achieve rapid positioning of the arch frame and improve efficiency.
Technical Parameters:
| No. | Items | Unit | Data | |
| 1 | Whole Machine | Total weight | t | 29 |
| Travel speed | km/h | 0～20 | ||
| Walking mode | / | Tyre | ||
| Traction | / | 4 wheels drive | ||
| Steering | / | 4 wheels steering | ||
| Minimum turning radius | m | inner 3.0/outer 7.5 | ||
| Ground clearance | mm | 400 | ||
| Grade ability | ° | 25 | ||
| Max. operating height | m | 12 | ||
| Max. operating width | m | 15 | ||
| Transportation dimension (L x W x H) | m | 11000×2800×4300 | ||
| 2 | Diesel Engine | Type | / | 6 cylinder water cooled |
| Rated power | KW | 153 | ||
| 3 | Motor | Rated power | KW |
90 |
| 4 | Boom | Max. working length | m | 12 |
| Max. extended length of main boom | m | 14 | ||
| Max. extended length of auxiliary boom | m | 16.5 | ||
| Pallet payload | kg | 2000 | ||
| Platform payload | kg | 400 | ||
| Payload of lifting mechanism | kg | 2000 | ||
| Platform of mini crane on platform | kg | 400 | ||
| 5 | Electrical System | Operating mode | / | Wireless |
| Control mode | / | Controller | ||
| 6 | Cable Reel | Power supply | / | 380V/50HZ (customizable) |
| Current | A | 240 |
Applications:

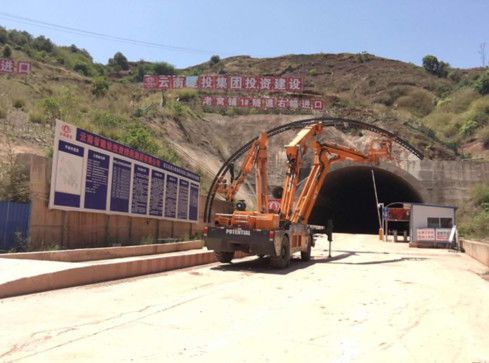

The main application scenarios of tunnel arch installation trolleys KGM12200 include railway tunnels, highway tunnels, urban underground pipe galleries, mining tunnels, etc.
Railway tunnel: In railway tunnel construction, the tunnel arch installation trolley is used to quickly and accurately install the arch, provide early support structure, and ensure construction safety. Especially in railway tunnel projects with complex mountainous terrain, the role of the trolley is particularly important
Highway tunnel: Whether it is the construction of highway tunnels or ordinary highway tunnels, the tunnel arch installation trolley can assist in completing the arch installation work, improving construction efficiency and quality
Urban underground pipe gallery: In the construction of urban underground pipe galleries, trolleys are used to install arches to enhance the stability of the structure, and are suitable for construction in deeper underground spaces
Mining tunnels: In the construction of metal mines and coal mine tunnels, tunnel arch installation trolleys are used to strengthen support, control surrounding rock deformation, and ensure construction safety.
