Customizable Drilling Anchoring Grouting Equipment For Underground Hydropower Plant
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | POTENTIAL / POTENCY |
| Certification: | ISO9001:2015 |
| Model Number: | KMZ611 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Unit |
|---|---|
| Price: | Negotiable |
| Packaging Details: | FR or Bulk Ship |
| Delivery Time: | 45 Working Days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 120 Units Per Year |
|
Detail Information |
|||
| Model: | KMZ611 | Gradeability: | 15° |
|---|---|---|---|
| Drilling Depth Of Rock Drill: | 6m | Transportation Dimension (L X W X H): | 13200*2500*3450mm |
| Max.Operating Height: | 11m | Max.Operating Width: | 11m |
| Rock Drill Power: | 16.5Kw | Drilling Diameter Of Rock Drill: | Φ43～Φ76mm |
| Highlight: | Customizable Drilling Anchoring Grouting Equipment,Underground Drilling Anchoring Grouting Equipment |
||
Product Description

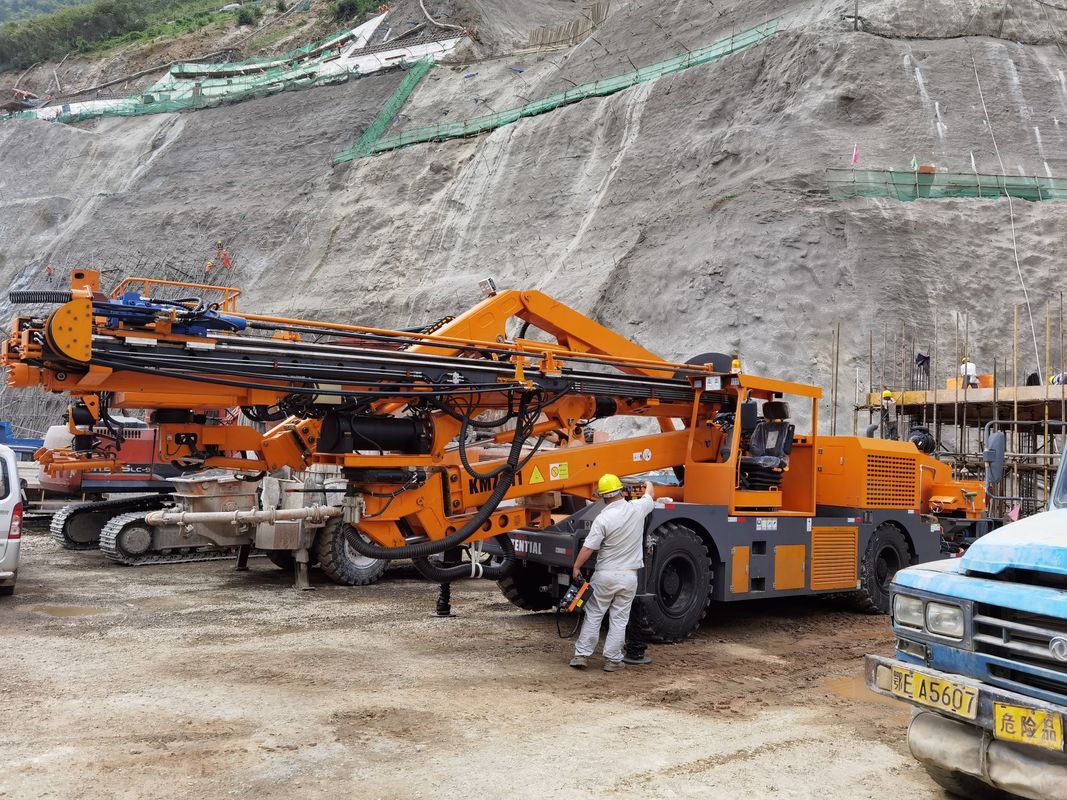

KMZ611 Customizable Drilling Anchoring Grouting Equipment for Underground hydropower Plant Construction
Product Description:
Potential/Potency KMZ611 anchor injection trolley is developed specifically for underground hydropower engineering, integrating functions such as hydraulic rock drilling, anchor rod installation, grouting, and mesh installation. Can be used for tunnel support in water diversion projects, tunnels and slopes in railways, highways, deep foundation pits in high-rise buildings, and support operations in underground hydropower plants. It fills the gap in the current field of water conservancy and hydropower where there is no mechanized construction equipment.
Features:
1, Chassis form: Engineering chassis, four-wheel drive, four-wheel steering;
2, Power: Dual power of diesel and electric;
3, Control system: Controller control, parameter large screen display,
4, Arm control intelligent assistance system;
5, The main arm integrates hydraulic rock drilling drilling system, grouting system, and anchor rod installation system;
6, The auxiliary arm integrates a high-altitude work platform and a fully hydraulic multi degree of freedom robotic arm;
Technical Parameters:
| Item | Parameter | Value | Unit |
| 1 | Weight | 25500 | kg |
| 2 | Walking Speed | 0~15 | km/h |
| 3 | Rock Drill Power | 16.5 | kw |
| 4 | Drilling Diameter of Rock Drill | Φ43～Φ76 | mm |
| 5 | Drilling Depth of Rock Drill (Single Rod) | 6 | m |
| 6 | Drilling Speed of Rock Drill | 1-1.2 | m/min |
| 7 | Water-cooled Diesel Engine |
119/2200 |
kw/rpm |
| 8 | Minimum Turning Radius | Inner≤3.4m；Outer≤8.5m | m |
| 9 |
Gradeability |
15 | ° |
| 10 | Theoretical Maximum Flow Rate of Grouting System | 2500 | l/h |
| 11 |
|
11 | m |
| 12 | Maximum Working Width | 11 | m |
| 13 | Dimensions in Transport State (Length x Width x Height) |
13200*2500*3450 |
mm |
| 14 | Air Compressor Power | 3.6 | kw |
Applications:
In tunnel engineering, the water and electricity anchor rod trolley is mainly used for support operations during tunnel excavation. During tunnel excavation, it is necessary to provide support to the surrounding rock to maintain stability. The anchor rod trolley can efficiently perform tasks such as drilling anchor rods, automatic clamping and pushing anchor rods, and automatic grouting, improving the speed and quality of tunnel excavation.
In underground engineering, water and electricity anchor rod trolleys are widely used in underground factory excavation, subway construction, water conservancy engineering, underground pipe galleries and other scenarios. These projects require reinforcement of tunnels, installation of supports, and installation of protective walls to ensure the stability and safety of underground structures. The anchor rod trolley can quickly and accurately complete these tasks, improving construction quality and safety.
