1.2MPa Grouting Pressure Drilling Anchoring Grouting Machine With 1200l/H Grouting Flow
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | POTENTIAL / POTENCY |
| Certification: | ISO9001:2015 |
| Model Number: | KMZ5012 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Unit |
|---|---|
| Price: | Negotiable |
| Packaging Details: | FR or Bulk Ship |
| Delivery Time: | 45 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 120 units per year |
|
Detail Information |
|||
| Drilling Depth Of Rock Drill: | 5m ( Single Pole ） | Max. Drilling Diameter Of Rock Drill: | Φ115mm |
|---|---|---|---|
| Grouting Pressure: | 1.2MPa | Rock Drill Power: | 22Kw |
| Max.Operating Height: | 12m | Model: | KMZ5012 |
| Transportation Dimension (L X W X H): | 11600*3200*3450mm | Grouting Flow: | 1200l/h |
| Highlight: | 1.2MPa Drilling Anchoring Grouting Machine,Drilling Anchoring Grouting Machine 1200l/H |
||
Product Description
Product 1.2MPa Grouting Pressure Drilling Anchoring Grouting Machine with 1200l/h Grouting Flow and 12m Max.Operating Height KMZ5012
Description:

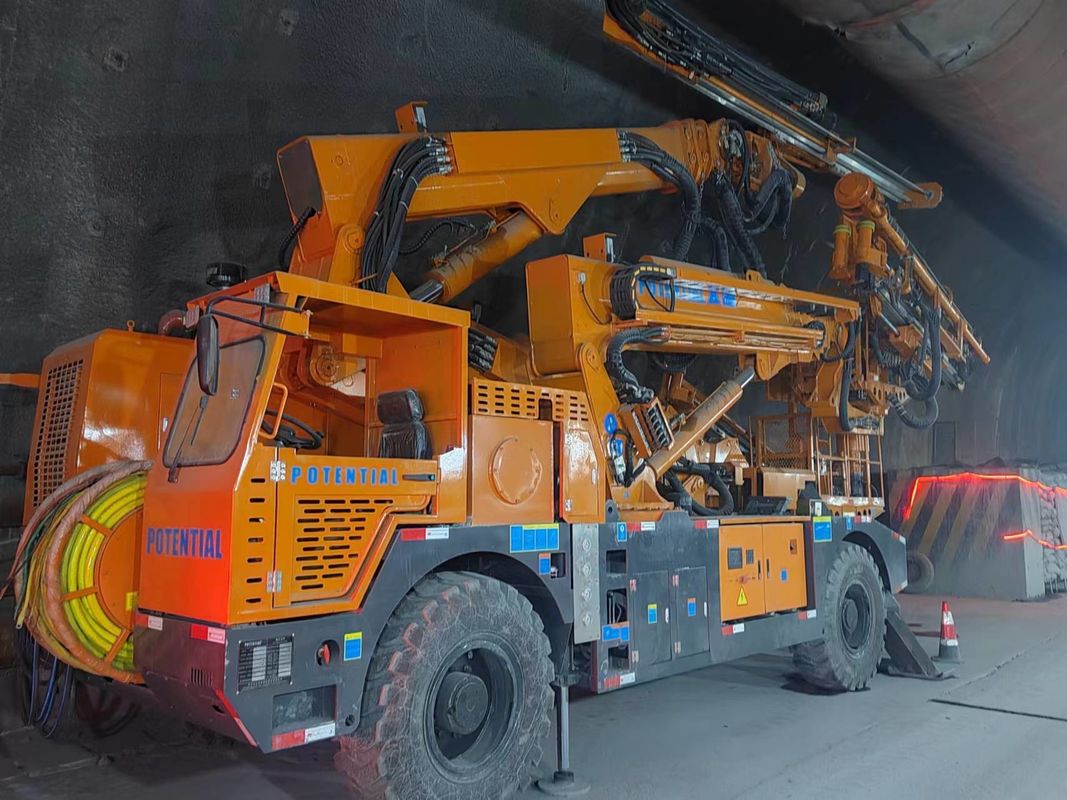

Potential/Potency KMZ5012 is a versatile drilling and anchoring trolley designed specifically for the purpose of constructing tunnels. Its functionality extends to the operations of drilling, anchoring, and grouting for various types of anchor rods including but not limited to expansion shell anchor rods, resin anchor rods, and single strand anchor rods. What's more, this piece of equipment is the first of its kind in China that possesses the capability of conducting parallel drilling and anchoring operations.
Features:
Here are some possible ways to rewrite the text in HTML format:
- Chassis for enhanced durability
- Four-wheel drive system for better traction in rough terrain
- Strong climbing ability to overcome steep slopes or obstacles
- Four-wheel steering with a small turning radius for increased maneuverability

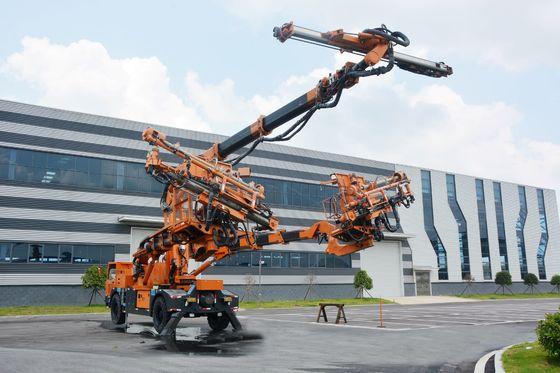

- Three arms designed for different tasks
- The middle arm serves as a rock drilling arm, capable of penetrating hard surfaces
- The left and right arms function as anchor rod installation arms, securing the vehicle to the ground
- Controller for precise and easy handling of the vehicle
- Parameter display on a large screen provides clear and comprehensive information
- Real-time monitoring of system operation status ensures safety and efficiency
- The intelligent assistance system enables one-click automatic matching of drill rod and anchor rod orientation
- This feature enhances efficiency and reduces human error
- Advanced technology for seamless integration of different functions
Technical Parameters:
Item: 1
Parameter: Weight
Value: 29500
Unit: kg
Item: 2
Parameter: Ground Clearance
Value: 480
Unit: mm
Item: 3
Parameter: Rock Drill Power
Value: 22
Unit: kw
Item: 4
Parameter: Max. Drilling Diameter of Rock Drill
Value: Φ115
Unit: mm
Item: 5
Parameter: Drilling Depth of Rock Drill (Single Rod)
Value: 5 (Single Pole)
Unit: m
Item: 6
Parameter: Drilling Speed of Rock Drill
Value: 1-1.2
Unit: m/min
Item: 7
Parameter: Water-cooled Diesel Engine
Value: 129/2200
Unit: kw/rpm
Item: 8
Parameter: Minimum Turning Radius
Value: Inner≤2.5m；Outer≤8.5m
Unit: m
Item: 9
Parameter: Gradeability
Value: 20
Unit: °
Item: 10
Parameter: Theoretical Maximum Flow Rate of Grouting System
Value: 1200
Unit: l/h
Item: 11
Parameter: Maximum Working Height
Value: 12
Unit: m
Item: 12
Parameter: Maximum Working Width
Value: 15
Unit: m
Item: 13
Parameter: Dimensions in Transport State (Length x Width x Height)
Value: 11600*3200*3450
Unit: mm
Item: 14
Parameter: Air Compressor Power
Value: 7
Unit: kw
Applications:
The KMZ 5012 uses end working devices located on the left and right arm frames to install anchor rods/cables. The installation process is divided into 11 steps:
Use the remote control to quickly deploy the boom to the vicinity of the anchor hole.
Manually place resin or cement coil anchoring agent into the bottom of the hole through a PVC pipe station on the platform.
Use the remote control to select the hole position where the anchor rod/cable needs to be installed. After selection, the working device will automatically and quickly adjust its posture to align with the anchor. The orientation of the rod hole is consistent and locked.
Use the remote control to install the anchor rod/cable into the friction wheel.
Adjust (micro move) the arm movement through the remote control to align the anchor rod/cable with the anchor rod/cable hole.
Feed the anchor rod/cable in through the friction wheel until it comes into contact with the anchoring agent (which can be determined by the length of the exposed anchor rod/cable).
Anchor rod/cable device is now in place.
Push the anchor rod/cable device forward until the anchor rod/cable is inserted into the bottom of the hole and fix the anchor head. Resin and cement medicine roll anchoring agent need to be pushed while rotating.
Install the exhaust pipe and seal the hole opening. This step is manually operated on the platform.
Apply prestress by applying torque through the anchor rod/cable device torque tube. The torque can be set on the control panel of the electrical control cabinet.
The final step is grouting and sealing the hole.
