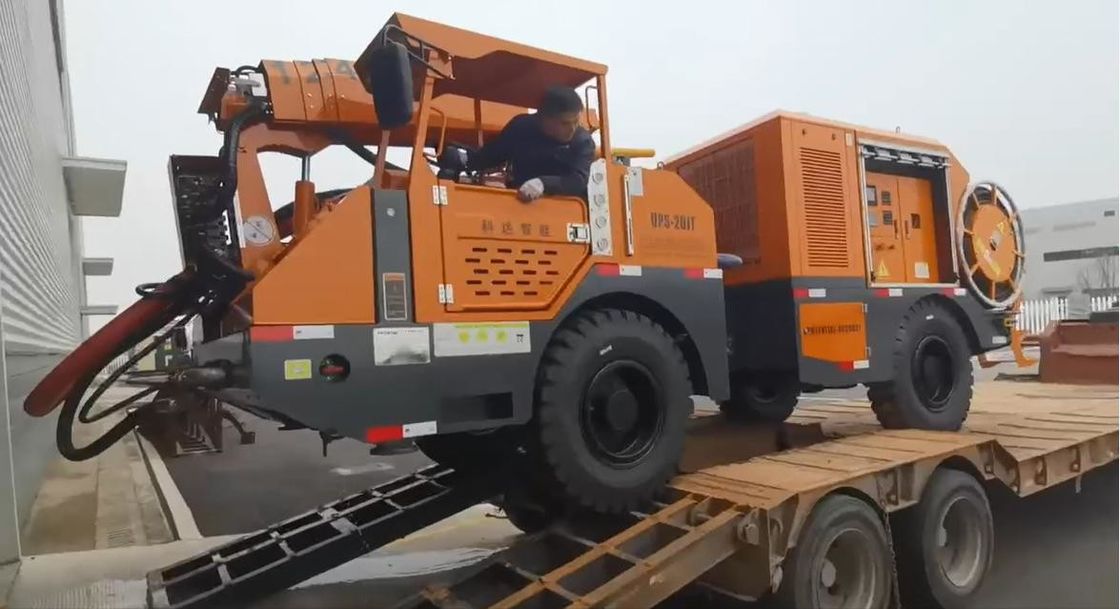

385mm Ground Clearance Robotic Wet Concrete Sprayer with 80m Cable Reel Length and Up To 8.5m Shotcrete Distance Upward
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | POTENTIAL / POTENCY |
| Certification: | ISO9001:2015 |
| Model Number: | UPS-20J |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Unit |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 1 Unit in 1*40HQ |
| Delivery Time: | 45 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 120 units per year |
|
Detail Information |
|||
| Air Compressor: | 45Kw | Cable Reel Length: | 80m |
|---|---|---|---|
| Shotcrete Capacity: | 20 Cubic Meters Per Hour | Ground Clearance: | 385mm |
| Engine: | Cummins | Shotcrete Distance Upward: | Up To 8.5m |
| Arm Frame Form: | 4 Sections And 3 Levels Of Scalability | Weight: | Around 11t |
| Highlight: | Robotic Wet Concrete Sprayer,385mm Robotic Wet Concrete Sprayer |
||
Product Description
385mm Ground Clearance Robotic Wet Concrete Sprayer 4 Sections and 3 Levels of Scalability for Results
Product Description:
Flexible Homework Design:
The telescopic rotary robotic arm covers a working range of 2 × 6.5m width, 8m height, and 2.5m depth, suitable for narrow alleys and no construction blind spots. Supports wireless remote control operation, allowing the operator to stay away from the work surface and enhance safety.
Structural Optimization and Reliability:
Adopting a heavy-duty articulated engineering chassis that balances maneuverability and impact resistance. The key components are selected from internationally renowned brands, with high durability and easy maintenance of the entire machine.
Features:
- Cable Reel Length: 80m
- Shotcrete Distance Upward: Up To 8.5m
- Weight: Around 11t
Technical Parameters:
| Ground Clearance | 385mm |
| Shotcrete Capacity | 20 Cubic Meters Per Hour |
| Weight | Around 11t |
| Cable Reel Length | 80m |
| Engine | Cummins |
| Arm Frame Form | 4 Sections And 3 Levels Of Scalability |
| Shotcrete Distance Upward | Up To 8.5m |
| Air Compressor | 45Kw |
Applications:
Significantly reduce dust concentration (reduce occupational disease risk) and consumption of accelerators, and improve the working environment.
Electric drive reduces exhaust emissions, and in case of unexpected power outages, the chassis engine can be switched for emergency evacuation.
Efficiency is 2-3 times higher than traditional manual operations, taking into account multi face construction and reducing equipment investment.
Remote operation reduces personnel demand and labor intensity, indirectly saving construction costs.
Packing and Shipping:
Product Packaging:
The Robotic Shotcrete Machine is carefully packaged in a sturdy cardboard box to ensure safe transportation. The machine is further secured with foam padding to prevent any damage during shipping.
Shipping Information:
Once your order is processed, the Robotic Shotcrete Machine will be shipped via a trusted courier service. You will receive a tracking number to monitor the delivery progress of your package. Please ensure someone is available to receive the delivery at the provided shipping address.
FAQ:
Q: What is the brand name of this robotic shotcrete machine?
A: The brand name of this robotic shotcrete machine is POTENTIAL or POTENCY.
Q: What is the model number of this robotic shotcrete machine?
A: The model number of this robotic shotcrete machine is UPS-20J.
Q: Where is this robotic shotcrete machine manufactured?
A: This robotic shotcrete machine is manufactured in CHINA.
Q: What certification does this robotic shotcrete machine have?
A: This robotic shotcrete machine is certified with ISO9001:2015.
Q: What is the minimum order quantity for this robotic shotcrete machine?
A: The minimum order quantity for this robotic shotcrete machine is 1 unit.
