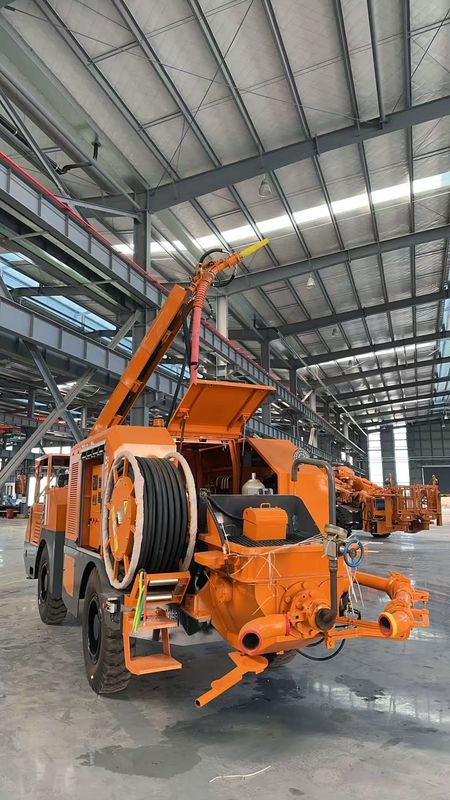

Advanced Automated Concrete Spraying System with Scalable Arm Frame Form and 20 Cubic Meters Per Hour Shotcrete Capacity Mining UPS-20J
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | POTENTIAL / POTENCY |
| Certification: | ISO9001:2015 |
| Model Number: | UPS-20J |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Unit |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 1 Unit in 1*40HQ |
| Delivery Time: | 45 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 120 units per year |
|
Detail Information |
|||
| Arm Frame Form: | 4 Sections And 3 Levels Of Scalability | Shotcrete Capacity: | 20 Cubic Meters Per Hour |
|---|---|---|---|
| Cable Reel Length: | 80m | Ground Clearance: | 385mm |
| Engine: | Cummins | Weight: | Around 11t |
| Shotcrete Distance Upward: | Up To 8.5m | Air Compressor: | 45Kw |
| Highlight: | Advanced Automated Concrete Spraying System,Scalable Arm Concrete Spraying System |
||
Product Description
Advanced Automated Concrete Spraying System with Scalable Arm Frame Form and 20 Cubic Meters Per Hour Shotcrete Capacity Mining UPS-20J
Product Description:
Intelligent Control System
Adopting PLC electro-hydraulic proportional control rapid setting agent system to achieve automatic matching of rapid setting agent and concrete dosage, with a wide range of dosage. The electronic control system integrates Profinet bus technology to monitor the real-time status of key components such as the engine and hydraulic pump, ensuring operational stability.
Features:
- Shotcrete Capacity: 20 Cubic Meters Per Hour
- Shotcrete Distance Upward: Up To 8.5m
Technical Parameters:
| Shotcrete Capacity | 20 Cubic Meters Per Hour |
| Weight | Around 11t |
| Cable Reel Length | 80m |
| Ground Clearance | 385mm |
| Engine | Cummins |
| Arm Frame Form | 4 Sections And 3 Levels Of Scalability |
| Air Compressor | 45Kw |
| Shotcrete Distance Upward | Up To 8.5m |
Applications:
Significantly reduce dust concentration (reduce occupational disease risk) and consumption of accelerators, and improve the working environment.
Electric drive reduces exhaust emissions, and in case of unexpected power outages, the chassis engine can be switched for emergency evacuation.
Support and Services:
The Robotic Shotcrete Machine is equipped with advanced technology and features to provide efficient and reliable support for various shotcrete applications. Our product technical support and services include:
- On-site installation and setup assistance to ensure proper integration of the machine into your operation.
- Training sessions for operators to maximize productivity and safety during operation.
- Regular maintenance and service checks to keep the machine in optimal working condition.
- Remote troubleshooting and technical assistance to address any issues that may arise quickly.
- Access to a team of knowledgeable experts to provide guidance and support for any questions or concerns.
