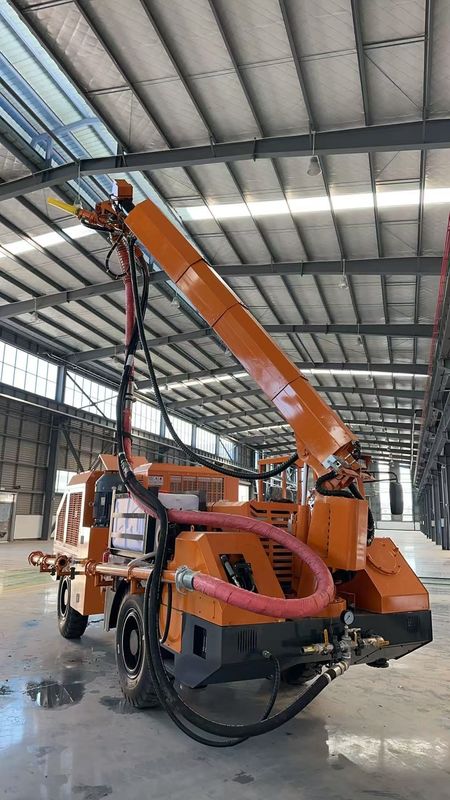

Precise Construction Robotic Concrete Sprayer with 80m Cable Reel Length and Ground Clearance of 385mm Mining UPS-20J
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | POTENTIAL / POTENCY |
| Certification: | ISO9001:2015 |
| Model Number: | UPS-20J |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Unit |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 1 Unit in 1*40HQ |
| Delivery Time: | 45 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 120 units per year |
|
Detail Information |
|||
| Weight: | Around 11t | Ground Clearance: | 385mm |
|---|---|---|---|
| Shotcrete Capacity: | 20 Cubic Meters Per Hour | Air Compressor: | 45Kw |
| Arm Frame Form: | 4 Sections And 3 Levels Of Scalability | Engine: | Cummins |
| Cable Reel Length: | 80m | Shotcrete Distance Upward: | Up To 8.5m |
| Highlight: | 385mm Ground Clearance Robotic Concrete Sprayer,Mining Robotic Concrete Sprayer |
||
Product Description
Mining UPS-20J with 80m Cable Reel Length Robotic Concrete Sprayer for Precise Construction
Product Description:
Efficient spraying capability
The theoretical conveying capacity reaches 20m³/h and supports customized motors (37KW/45KW) for high-altitude operations, ensuring stability. Equipped with a 45kW air compressor to improve injection efficiency.
Intelligent control system
Adopting PLC electro-hydraulic proportional control rapid setting agent system to achieve automatic matching of rapid setting agent and concrete dosage, with a wide range of dosage. The electronic control system integrates Profinet bus technology to monitor the real-time status of key components such as the engine and hydraulic pump, ensuring operational stability.
Flexible homework design
The telescopic rotary robotic arm covers a working range of 2 × 6.5m width, 8m height, and 2.5m depth, suitable for narrow alleys and no construction blind spots. Supports wireless remote control operation, allowing the operator to stay away from the work surface and enhance safety.
Structural optimization and reliability
Adopting a heavy-duty articulated engineering chassis that balances maneuverability and impact resistance. The key components are selected from internationally renowned brands, with high durability and easy maintenance of the entire machine.
Technical Parameters:
| Arm Frame Form | 4 Sections And 3 Levels Of Scalability |
| Shotcrete Distance Upward | Up To 8.5m |
| Shotcrete Capacity | 20 Cubic Meters Per Hour |
| Air Compressor | 45Kw |
| Engine | Cummins |
| Ground Clearance | 385mm |
| Weight | Around 11t |
| Cable Reel Length | 80m |
Applications:
Environmental Protection and Safety: This technology helps in significantly reducing dust concentration, thus lowering the risk of occupational diseases. It also decreases the consumption of accelerators, contributing towards a safer working environment. Additionally, the electric drive system minimizes exhaust emissions, and in case of unexpected power outages, the chassis engine can be switched for emergency evacuation.
Cost control: The efficiency of this technology is 2-3 times more effective than traditional manual operations, especially when considering multi-faced construction projects and reducing the need for additional equipment investment. Furthermore, remote operation capabilities lead to decreased personnel demand and labor intensity, ultimately resulting in cost savings for construction projects.
Customization:
Product Customization Services for the Robotic Cement Spraying Equipment:
Brand Name: POTENTIAL / POTENCY
Model Number: UPS-20J
Place of Origin: CHINA
Certification: ISO9001:2015
Minimum Order Quantity: 1 Unit
Price: Negotiable
Support and Services:
The Product Technical Support and Services for the Robotic Shotcrete Machine include:
- Troubleshooting assistance for any technical issues
- Remote diagnostics and maintenance support
- On-site technical training for operators and maintenance staff
Packing and Shipping:
Product Packaging:
The Robotic Shotcrete Machine is carefully packaged in a sturdy cardboard box with ample protective padding to ensure safe delivery.
FAQ:
Q: What is the brand name of the Robotic Shotcrete Machine?
A: The brand name is POTENTIAL or POTENCY.
Q: What is the model number of the Robotic Shotcrete Machine?
A: The model number is UPS-20J.
Q: Where is the Robotic Shotcrete Machine manufactured?
A: The machine is manufactured in CHINA.
