Vertical/Horizontal Reach 150/600m and 50m3/h Output HBT50.13.129RS Concrete Trailer Pump for Your Construction Needs
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | POTENCY |
| Certification: | ISO9001:2015 |
| Model Number: | HBT50.13.129RS |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Unit |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 1 Unit in 1*40'HQ |
| Delivery Time: | 20 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 180 units per year |
|
Detail Information |
|||
| Valve Type: | S Type | Oil Tank: | 500L |
|---|---|---|---|
| Application: | Concrete Line Pump | Max. Theoretical Vertical/Horizontal Reach: | 150/600m |
| Max. Theoretical Pressure: | 13MPa | Max.Theory Concrete Output: | 50m³/h |
| Max.Theoretical Horizontal Reach: | 810m | ||
| Highlight: | 150/600m Concrete Trailer Pump,50m3/h Concrete Trailer Pump,HBT50.13.129RS Concrete Trailer Pump |
||
Product Description
Vertical/Horizontal Reach 150/600m and 50m3/h Output HBT50.13.129RS Concrete Trailer Pump for Your Construction Needs
Product Description:
1. High-Performance Pumping System
Equipped with a robust hydraulic system and advanced S-valve technology, ensuring efficient and stable concrete delivery. Maximum theoretical pumping capacity of 50 m³/h and a maximum pressure of 13 MPa, suitable for medium-to-high-rise construction.

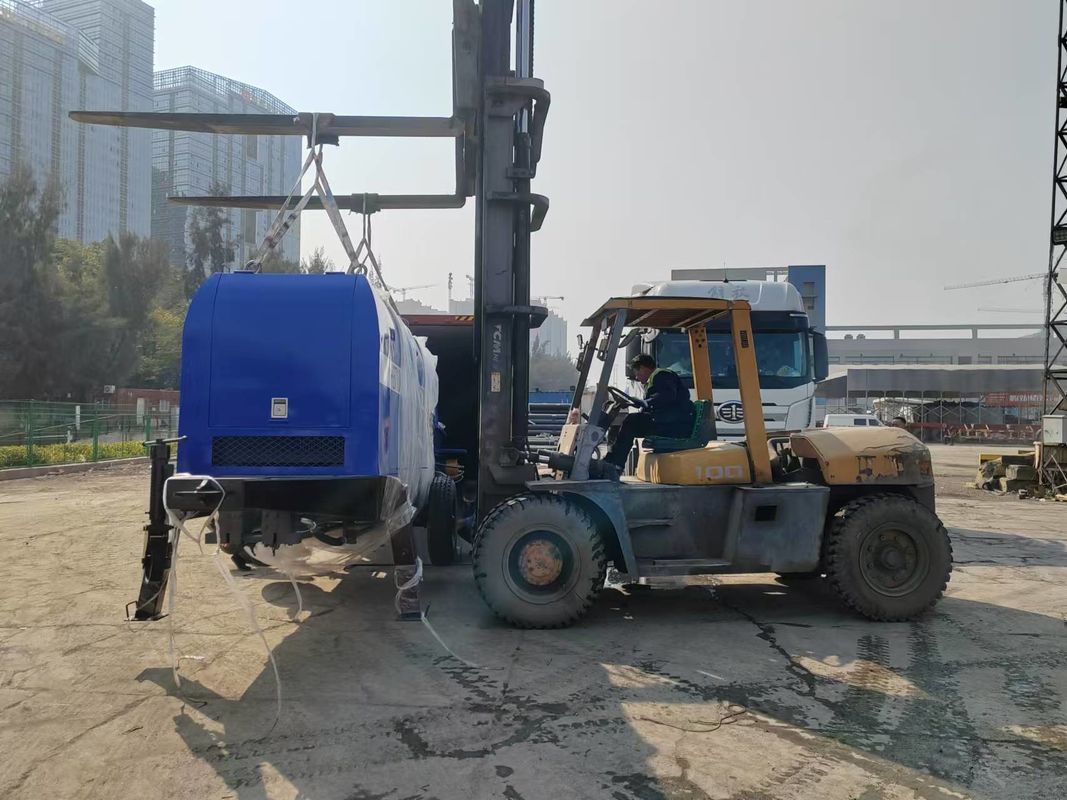

2. Trailer-Mounted Mobility
Integrated trailer design allows for easy transportation and rapid deployment on diverse job sites. Flexible maneuverability, ideal for remote locations or confined spaces where stationary pumps are impractical.
3. Diesel-Powered Reliability
Powered by a high-torque diesel engine (e.g., Cummins or equivalent), ensuring reliable operation in areas without grid power. Fuel-efficient design reduces operational costs and environmental impact.
4. Extended Reach and Versatility
Standard pipeline diameter of 125 mm with optional configurations (e.g., 150 mm). Maximum horizontal pumping distance of 800–1,000 meters and vertical reach of 200–300 meters, adaptable to complex projects.
Features:
Cost-Effective: Lower ownership and maintenance costs compared to truck-mounted pumps.
Adaptability: Compatible with various concrete mixes, including high-viscosity and fiber-reinforced materials.
Global Service Network: Backed by our worldwide technical support and spare parts supply chain.
Technical Parameters:
| Max. Theoretical Vertical/Horizontal Reach | 150/600m |
| Max. Theoretical Horizontal Reach | 810m |
| Application | Concrete Line Pump |
| Oil Tank | 500L |
| Max. Theoretical Pressure | 13MPa |
| Valve Type | S Type |
| Max. Theory Concrete Output | 50m³/h |
Applications:
1. Urban High-Rise Construction
Efficiently pumps concrete to elevated floors (up to 150 meters vertically), ideal for skyscrapers and multi-story residential/commercial buildings.
2. Infrastructure Projects
Widely used in bridges, highways, dams, and tunnels where continuous concrete placement is required over long distances.
3. Rural and Remote Construction
Trailer-mounted mobility makes it suitable for rural housing projects, agricultural facilities, and areas with limited access to infrastructure.
4. Industrial and Mining Operations
Delivers concrete for foundations, mine shafts, and industrial flooring in challenging terrains.
5. Disaster Recovery and Emergency Repairs
Rapid deployment capabilities support urgent repair work for collapsed structures or damaged infrastructure.
