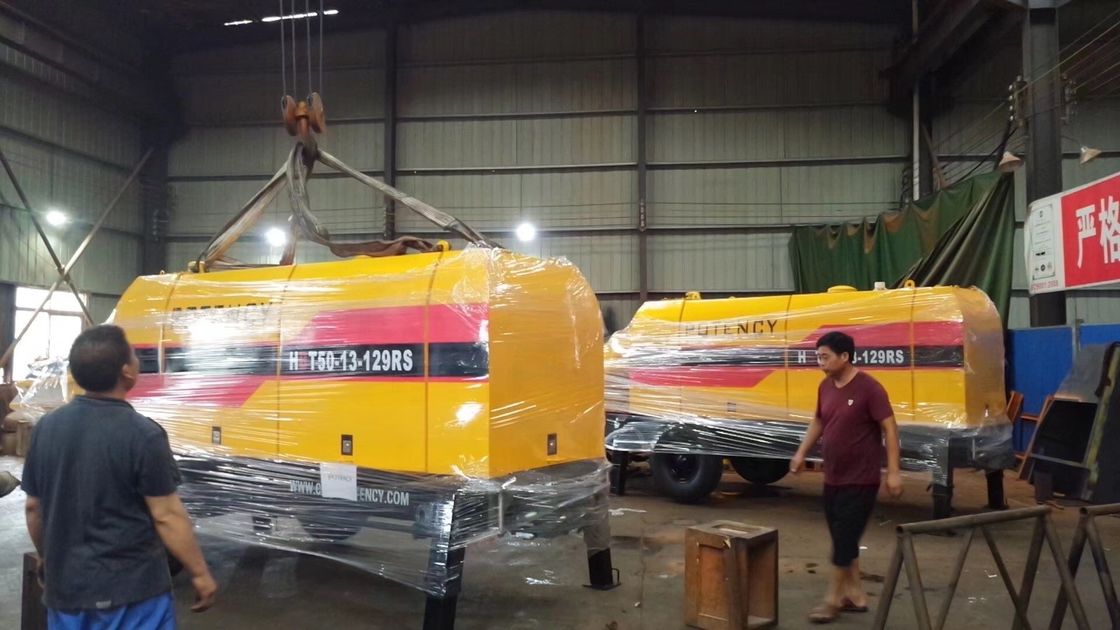

S Type Concrete Line Pump with 810m Max.Theoretical Horizontal Reach and 50m3/h Max.Theory Concrete Output
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | POTENCY |
| Certification: | ISO9001:2015 |
| Model Number: | HBT50.13.129RS |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Unit |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 1 Unit in 1*40'HQ |
| Delivery Time: | 20 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 180 units per year |
|
Detail Information |
|||
| Max.Theory Concrete Output: | 50m³/h | Valve Type: | S Type |
|---|---|---|---|
| Max. Theoretical Vertical/Horizontal Reach: | 150/600m | Oil Tank: | 500L |
| Application: | Concrete Line Pump | Max. Theoretical Pressure: | 13MPa |
| Max.Theoretical Horizontal Reach: | 810m | ||
| Highlight: | 50m3/h Concrete Line Pump,810m Concrete Line Pump,S Type Concrete Line Pump |
||
Product Description
S Type Concrete Line Pump with 810m Max.Theoretical Horizontal Reach and 50m3/h Max.Theory Concrete Output
Product Description:
Integrated trailer design allows for easy transportation and rapid deployment on diverse job sites. Flexible maneuverability, ideal for remote locations or confined spaces where stationary pumps are impractical.
Powered by a high-torque diesel engine (e.g., Cummins or equivalent), ensuring reliable operation in areas without grid power. Fuel-efficient design reduces operational costs and environmental impact.
Standard pipeline diameter of 125 mm with optional configurations (e.g., 150 mm). Maximum horizontal pumping distance of 800–1,000 meters and vertical reach of 200–300 meters, adaptable to complex projects.
User-friendly remote control enables precise operation and safety, allowing operators to manage pumping parameters from a distance. Real-time fault diagnosis and alarm systems enhance operational safety and maintenance efficiency.
Features:
1. Cost-Effective: Lower ownership and maintenance costs compared to truck-mounted pumps.
2. Adaptability: Compatible with various concrete mixes, including high-viscosity and fiber-reinforced materials.
Technical Parameters:
| Max.Theoretical Horizontal Reach | 810m |
| Max.Theory Concrete Output | 50m³/h |
| Max. Theoretical Pressure | 13MPa |
| Oil Tank | 500L |
| Valve Type | S Type |
| Application | Concrete Line Pump |
| Max. Theoretical Vertical/Horizontal Reach | 150/600m |
Applications:
Widely used in bridges, highways, dams, and tunnels where continuous concrete placement is required over long distances.
Trailer-mounted mobility makes it suitable for rural housing projects, agricultural facilities, and areas with limited access to infrastructure.
Delivers concrete for foundations, mine shafts, and industrial flooring in challenging terrains.
