KGM9300 Arch Assembly Robot for Tunnel 3 Booms No.3 Installation Made Effortless
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | POTENTIAL / POTENCY |
| Certification: | ISO9001:2015 |
| Model Number: | KGM9300 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Unit |
|---|---|
| Price: | Negotiable |
| Packaging Details: | FR or Bulk Ship |
| Delivery Time: | 45 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 120 units per year |
|
Detail Information |
|||
| Max.Operating Width: | 25m | Transportation Dimension (L X W X H): | 10000×2800×3800mm |
|---|---|---|---|
| Gradeability: | 22 Degree | Booms No.: | 3 |
| Model: | Arch Installation Trolley KGM9300 | Max.Operating Height: | 13m |
| Dual Power: | Diesel & Electric | Platform Load Capacity: | 3000Kg |
| Highlight: | 3 Booms Arch Assembly Robot,KGM9300 Arch Assembly Robot,Tunnel Arch Assembly Robot |
||
Product Description
KGM9300 Arch Assembly Robot for Tunnel 3 Booms No.3 Installation Made Effortless
Product Description:
Engineering chassis, four-wheel drive, and strong climbing ability offer exceptional performance. The vehicle features four-wheel steering, allowing for a small turning radius.

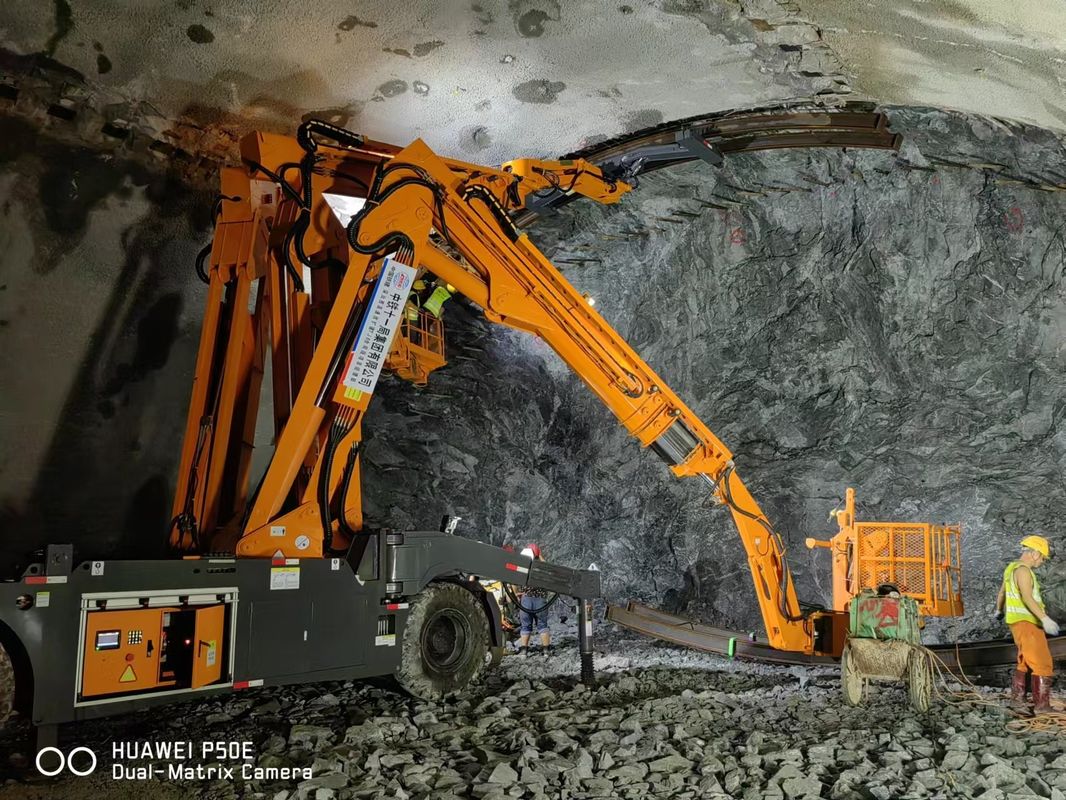

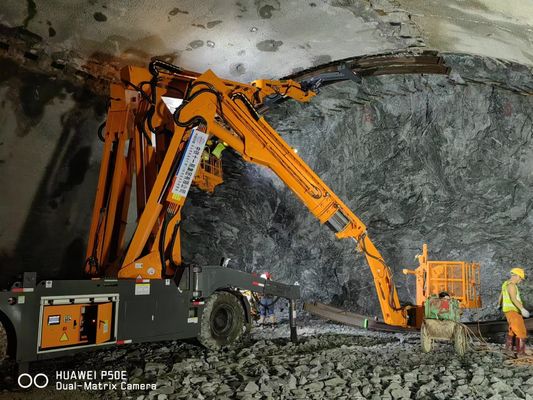

The machine is equipped with three working arm frames, which can be fully retracted onto the frame in transportation status.
On both sides of the vehicle, there are work platforms attached to each arm, complete with arch frame dragging and clamping devices.
The main arm boasts a multifunctional platform, capable of simultaneously clamping 1-4 arches and swiftly lifting them into place.
Controlled through a controller system, the vehicle features a large screen to display parameters and monitor the system's operation status in real-time.
The arm frame control intelligent auxiliary system enables rapid positioning of the arch frame, thereby enhancing operational efficiency.
Applications:
Folding+telescopic arm frame: This innovative design allows for spanning step construction, enabling the completion of arch installations for full section, two-step, and three-step structures. The maximum operating height of this arm frame is 13 meters, while its maximum operating width is 25 meters.
Support and Services:
The Arch Installation Trolley product comes with comprehensive Product Technical Support and Services to assist customers with any inquiries or issues they may encounter. Our team of experts is available to provide guidance on product setup, troubleshooting, maintenance, and any other related technical assistance that may be required.
Packing and Shipping:
Product Packaging and Shipping for the Arch Installation Trolley:
The Arch Installation Trolley will be carefully packaged in a sturdy cardboard box to ensure safe delivery. The product will be wrapped in protective foam to prevent any damages during transit.
Shipping Details:
- Shipping Method: Standard Ground Shipping
- Estimated Delivery Time: 5-7 business days
- Shipping Cost: $15.00
- Shipping Restrictions: Currently only available for delivery within the United States.
