Transportation Dimension L X W X H 10000×2800×3800mm Arch Installation Carrier Dual Power Diesel Electric
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | POTENTIAL / POTENCY |
| Certification: | ISO9001:2015 |
| Model Number: | KGM9300 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Unit |
|---|---|
| Price: | Negotiable |
| Packaging Details: | FR or Bulk Ship |
| Delivery Time: | 45 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 120 units per year |
|
Detail Information |
|||
| Gradeability: | 22 Degree | Dual Power: | Diesel & Electric |
|---|---|---|---|
| Booms No.: | 3 | Max.Operating Width: | 25m |
| Max.Operating Height: | 13m | Platform Load Capacity: | 3000Kg |
| Transportation Dimension (L X W X H): | 10000×2800×3800mm | Model: | Arch Installation Trolley KGM9300 |
| Highlight: | Diesel Electric Arch Installation Carrier,10000×2800×3800mm Arch Installation Carrier,Dual Power Arch Installation Carrier |
||
Product Description
Transportation Dimension L X W X H 10000×2800×3800mm Arch Installation Carrier Dual Power Diesel Electric
Product Description:
Each of the left and right arms is equipped with a work platform, which is equipped with an arch frame dragging and clamping device;
The main arm has a multifunctional platform that can simultaneously clamp 1-4 arches and quickly lift them into place; The main arm support platform can be equipped with an external activity platform to assist in operations;
Multiple arches can be transported and formed with the vehicle;
Controller control, large screen display of parameters, real-time monitoring of system operation status;
The arm frame control intelligent auxiliary system can achieve rapid positioning of the arch frame and improve efficiency.
Applications:
Folding and Telescopic Arm Frame:

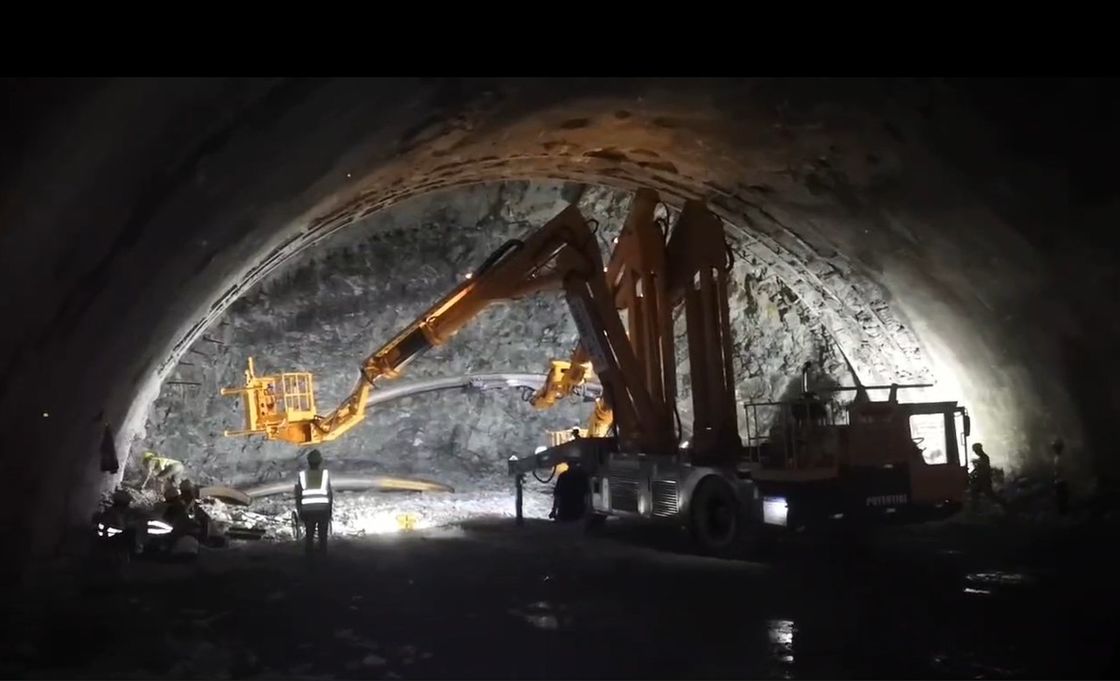

The folding and telescopic arm frame is designed to span step construction and is capable of completing arch installation for various structures. It can handle full section, two-step, and three-step arch erections, with a maximum operating height of 13 meters and a maximum operating width of 25 meters.
During two-step or full section arch erection, the auxiliary arm can assist the main arm in arch erection. In three-step construction, the main arm can erect a three-step arch, while the auxiliary arm simultaneously erects a two-step arch.
Support and Services:
Our Product Technical Support team is available to assist you with any questions or issues related to the Arch Installation Trolley. Whether you need help with product assembly, troubleshooting, or maintenance, our team is here to provide expert guidance and support.
Packing and Shipping:
Product Packaging:
The Arch Installation Trolley is carefully packaged to ensure safe delivery. It is wrapped in protective foam and placed in a sturdy cardboard box to prevent damage during transit.
Shipping:
Orders for the Arch Installation Trolley are typically shipped within 1-2 business days from the date of purchase. We use reputable shipping carriers to deliver your trolley safely to your doorstep. You will receive a tracking number to monitor the progress of your shipment.
