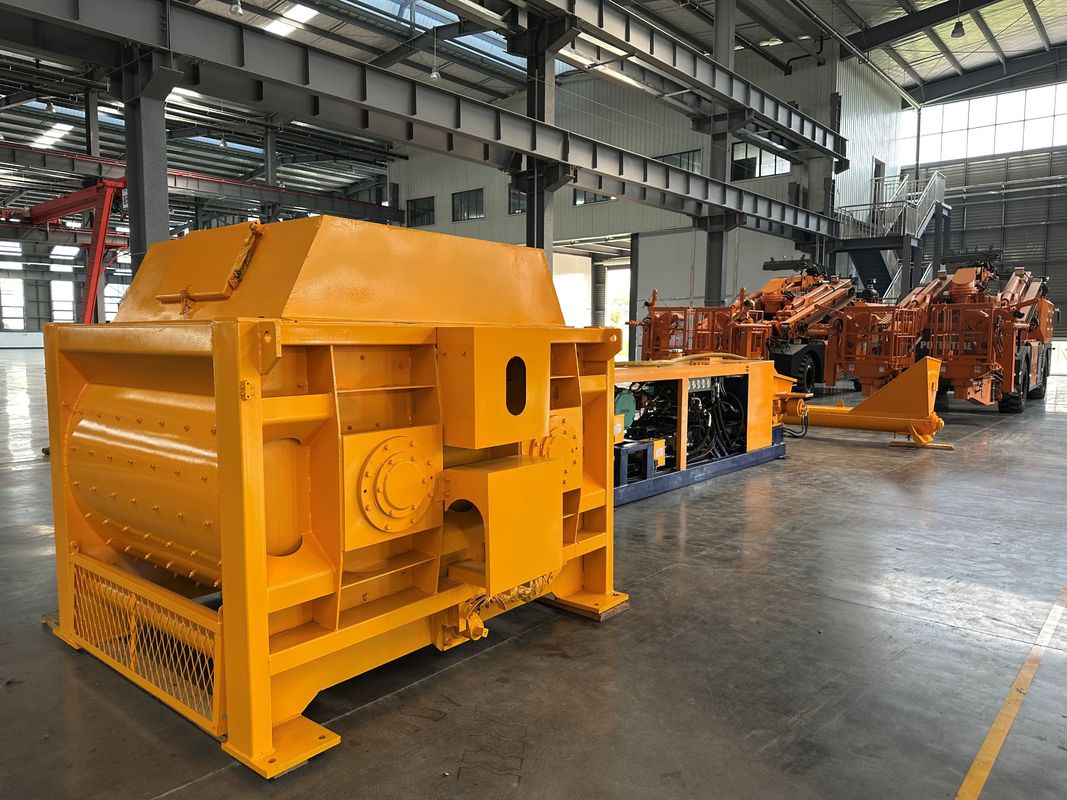

Max. Theoretical Pressure 16MPa Static Concrete Filling Pump for and Max.Theory Concrete Output of 200m3/h

Product Description:

The filling pump is primarily utilized for concrete filling in coal mine goafs and roadways, filling in mined-out areas of ferrous metal, non-ferrous metal, gold, and other mines, long-distance and high-lift transportation of sewage treatment plant sludge, as well as river and lake dredging.

It has wide applications, including pumping cake materials and the ability to pump various mixed materials such as tailings, fly ash, coal gangue, construction waste, fine stones, and more, with a maximum concentration of up to 85%.

Features:

Safety and explosion-proof design
The core motor and control system comply with mining explosion-proof standards and are suitable for harsh environments such as high gas and dust.
Fully hydraulic drive technology reduces the use of electrical components and lowers safety hazards.

Efficient conveying capacity
The conveying pressure reaches 16MPa, and it can pump concrete containing 3-5cm aggregates, with a wide range of slump adaptability (80-230mm).
The hydraulic system adopts constant power control to prevent overload and improve the stability of continuous operation.

Intelligence and reliability
Integrated intelligent fault diagnosis system, real-time monitoring of operational data and early warning, reducing downtime.
Key components such as S-tube valves and wear-resistant cylinders are equipped with high-pressure components or reinforced processes, which have a long service life and are easy to maintain.

Multi functional adaptability
Support anti pump function to quickly handle pipe blockage issues; The detachable design facilitates the replacement of pistons and vulnerable parts.
Optional mixer or track moving module to adapt to different construction scenarios.

Technical Parameters:

Applications:

2. Support and tunnel construction
Temporary or permanent structural construction such as roadway spraying support, roadway reinforcement along the void, and rapid pouring of isolation walls.

3. Infrastructure and maintenance engineering
Underground floor laying, wall backfilling, and concrete pouring in narrow spaces such as tunnels and water conservancy projects.

Customization:

Packaging Details: 1 Unit in 1*40'HQ

Delivery Time: 20 working days

Payment Terms: T/T, L/C

Supply Ability: 120 units per year

Application: Concrete Filling Pump

Max. Theoretical Pressure: 16MPa

Max. Theoretical Vertical/Horizontal Reach: 500m

Oil Tank: 1800L

Rated Voltage: 380/660/1140V

Support and Services:

Product Technical Support and Services

Our Concrete Pump product comes with comprehensive technical support and services to ensure optimal performance and longevity. Our team of experienced technicians is available to assist with troubleshooting, maintenance, and repairs. Additionally, we offer training programs to educate customers on the proper operation and maintenance of the Concrete Pump, enhancing safety and efficiency.

Packing and Shipping:

Product Packaging:
The Concrete Pump is carefully packaged in a sturdy cardboard box to ensure safe transportation. The components are securely placed inside the box with ample padding to prevent any damage during shipping.

Shipping:
We offer fast and reliable shipping services for the Concrete Pump product. Once your order is processed, the item will be shipped out promptly to your designated address. You will receive a tracking number to monitor the delivery status of your package.
