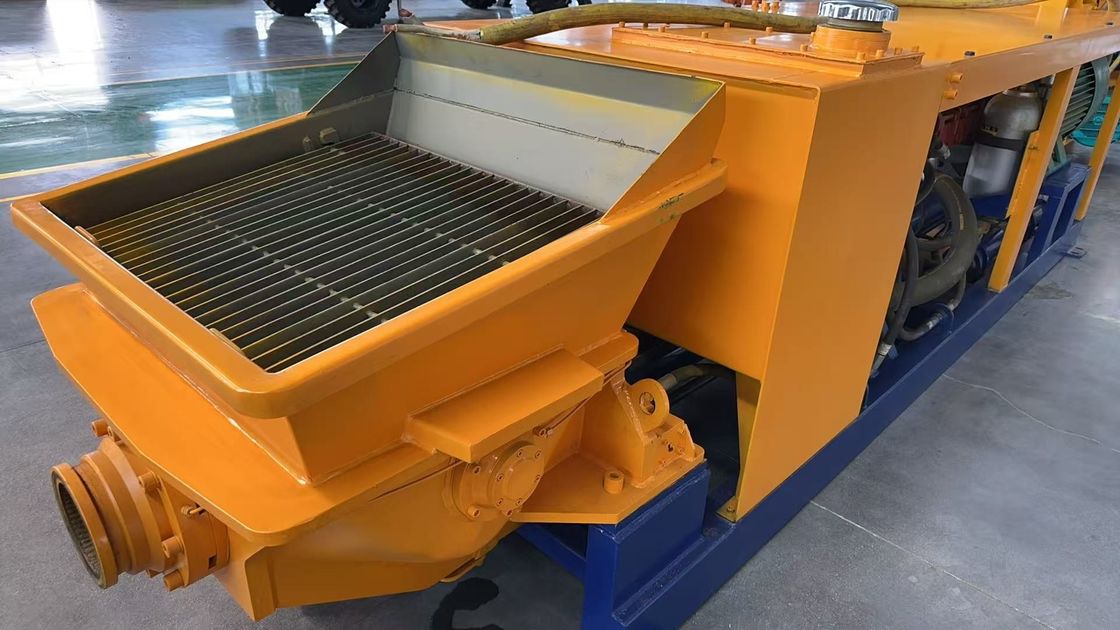

16MPa Max. Theoretical Pressure Concrete Pump with 500m Max. Theoretical Vertical/Horizontal Reach and 1800L Oil Tank

Product Description:

The filling pump is primarily utilized for several purposes such as the concrete filling of coal mine goafs and roadways, the filling of mined out areas in ferrous metal, non-ferrous metal, gold, and other mines, the long-distance and high lift transportation of sewage treatment plant sludge, as well as the dredging of rivers and lakes.

It is widely applicable, enabling the pumping of cake materials. The pump is capable of handling various mixed materials like tailings, fly ash, coal gangue, construction waste, fine stones, etc., with a maximum concentration of up to 85%.

Features:

The core motor and control system comply with mining explosion-proof standards and are suitable for harsh environments such as high gas and dust. Fully hydraulic drive technology reduces the use of electrical components and lowers safety hazards.

Support anti-pump function to quickly handle pipe blockage issues; The detachable design facilitates the replacement of pistons and vulnerable parts. Optional mixer or track moving module to adapt to different construction scenarios.

Technical Parameters:

Applications:

Underground backfilling and environmental protection treatment
Filling of goaf, recovery of coal pillars (achieving "pillar free mining"), and backfilling of coal gangue to reduce surface subsidence and pollution.

Infrastructure and maintenance engineering
Underground floor laying, wall backfilling, and concrete pouring in narrow spaces such as tunnels and water conservancy projects.

Customization:

Product Customization Services for the Concrete Pump:

Brand Name: POTENCY

Model Number: HBMD200/1

Place of Origin: CHINA

Certification: ISO9001:2015

Minimum Order Quantity: 1 Unit

Price: Negotiable

Packaging Details: 1 Unit in 1*40'HQ

Delivery Time: 20 working days

Payment Terms: T/T, L/C

Supply Ability: 120 units per year

Rated Voltage: 380/660/1140V

Max. Theoretical Vertical/Horizontal Reach: 500m

Max. Theory Concrete Output: 200m³/h

Max. Theoretical Horizontal Reach: 10000m

Max. Theoretical Pressure: 16MPa

Support and Services:

Our Product Technical Support and Services for the Concrete Pump include:

- Installation assistance for new concrete pumps

- Troubleshooting and repair services for technical issues

- Regular maintenance and servicing to ensure optimal performance

- Training programs for operators and maintenance personnel

- Provision of spare parts and replacement components

- Continuous customer support to address any queries or concerns

FAQ:

Q: What is the brand name of this concrete pump?

A: The brand name of this concrete pump is POTENCY.

Q: What is the model number of this concrete pump?

A: The model number of this concrete pump is HBMD200/1.

Q: Where is this concrete pump manufactured?

A: This concrete pump is manufactured in CHINA.

Q: What is the certification of this concrete pump?

A: This concrete pump is certified with ISO9001:2015.

Q: What are the payment terms accepted for this concrete pump?

A: The accepted payment terms for this concrete pump are T/T and L/C.
