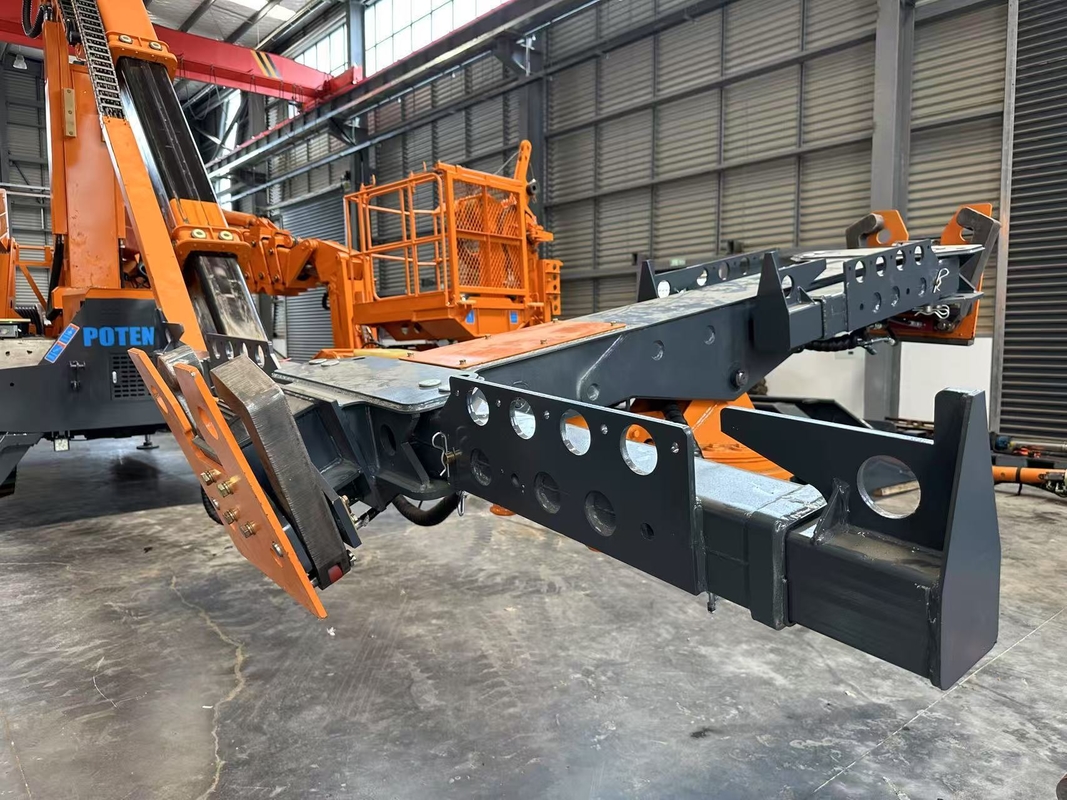

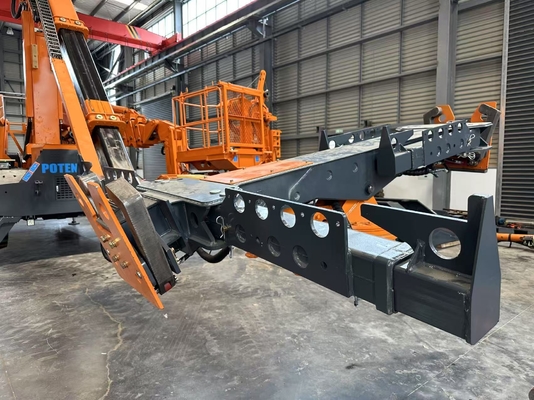

Dual Power Diesel Electric Arch Installation Trolley for KGJ312 Robot

Dual Power Diesel Electric Arch Installation Trolley for KGJ312 Robot

Product Details:

Place of Origin: CHINA
Brand Name: POTENTIAL / POTENCY
Certification: ISO9001:2015
Model Number: KGJ312

Payment & Shipping Terms:

Minimum Order Quantity: 1 Unit
Price: Negotiable
Packaging Details: FR or Bulk Ship
Delivery Time: 45 working days
Payment Terms: T/T, L/C
Supply Ability: 120 units per year
Get Best Price Contact Now

Detail Information

Transportation Dimension (L X W X H): 14000×3000×3450mm Max.Operating Width: 20m
Maximum Load-bearing Capacity Of The Main Arm: 3000Kg Maximum Load-bearing Capacity Of The Auxiliary Arm: 1500Kg
Dual Power: Diesel & Electric Max.Operating Height: 12m
Booms No.: 3 Model: Arch Installation Robot KGJ312
Highlight:

Dual Power Arch Installation Trolley

,

Electric Arch Installation Trolley

,

KGJ312 Robot Arch Installation Trolley

Product Description

Transportation Dimension 14000×3000×3450mm Arch Installation Trolley with Dual Power
Product Specifications
Attribute Value
Transportation Dimension (L X W X H) 14000×3000×3450mm
Max.Operating Width 20m
Maximum Load-bearing Capacity of The Main Arm 3000Kg
Maximum Load-bearing Capacity of The Auxiliary Arm 1500Kg
Dual Power Diesel & Electric
Max.Operating Height 12m
Booms No. 3
Model Arch Installation Robot KGJ312
Product Features

The KGJ312 articulated arch frame trolley offers several unique advantages:

  • Articulated chassis structure for small turning radius and exceptional flexibility
  • Overall height of 3.7 meters for robust height passability
  • Boom structure upgraded to meet China-Kyrgyzstan-Uzbekistan railway tunnel project requirements
  • Note: Does not include back arch function (requires separate arch transportation)
Technical Parameters
Parameter Specification
Model Arch Installation Robot KGJ312
Booms No. 3
Max.Operating Width 20m
Dual Power Diesel & Electric
Max.Operating Height 12m
Max. Load-bearing Capacity of The Main Arm 3000Kg
Max. Load-bearing Capacity of The Auxiliary Arm 1500Kg
Transportation Dimension (L X W X H) 14000×3000×3450mm
Applications

The KGJ312 articulated arch installation trolley can meet the minimum section of 5 meters (width) × 5 meters (height) for vertical arch operation, suitable for various tunnel arch constructions including:

  • Inclined shafts
  • Flat guides
  • Cross passages
  • Main tunnels of the China-Kyrgyzstan-Uzbekistan railway tunnel

Important: For operations involving the back arch function, the height of the secondary lining trolley must remain at or above 4.2 meters to ensure equipment passability.

Customization Options
  • Brand Name: POTENTIAL / POTENCY
  • Model Number: KGJ312
  • Origin: China
  • Certification: ISO9001:2015
  • Minimum Order: 1 Unit
  • Price: Negotiable
  • Packaging: FR or Bulk Ship
  • Delivery Time: 45 working days
  • Payment Terms: T/T, L/C
  • Annual Capacity: 120 units
Support and Services

Our technical support team provides comprehensive assistance for:

  • Assembly guidance
  • Troubleshooting
  • Maintenance support
  • Installation assistance
  • Operator training programs
Packing and Shipping
  • Package Includes: 1 Arch Installation Trolley, Instruction Manual
  • Shipping Method: Standard Shipping
  • Estimated Delivery: 5-7 business days
  • Shipping Cost: Calculated at checkout
Frequently Asked Questions
What is the brand name of the Arch Installation Trolley?

The brand name is POTENTIAL / POTENCY.

What is the model number?

The model number is KGJ312.

Where is it manufactured?

The trolley is made in China.

What certification does it have?

It is certified with ISO9001:2015.

What are the payment terms?

Payment terms are T/T and L/C.
