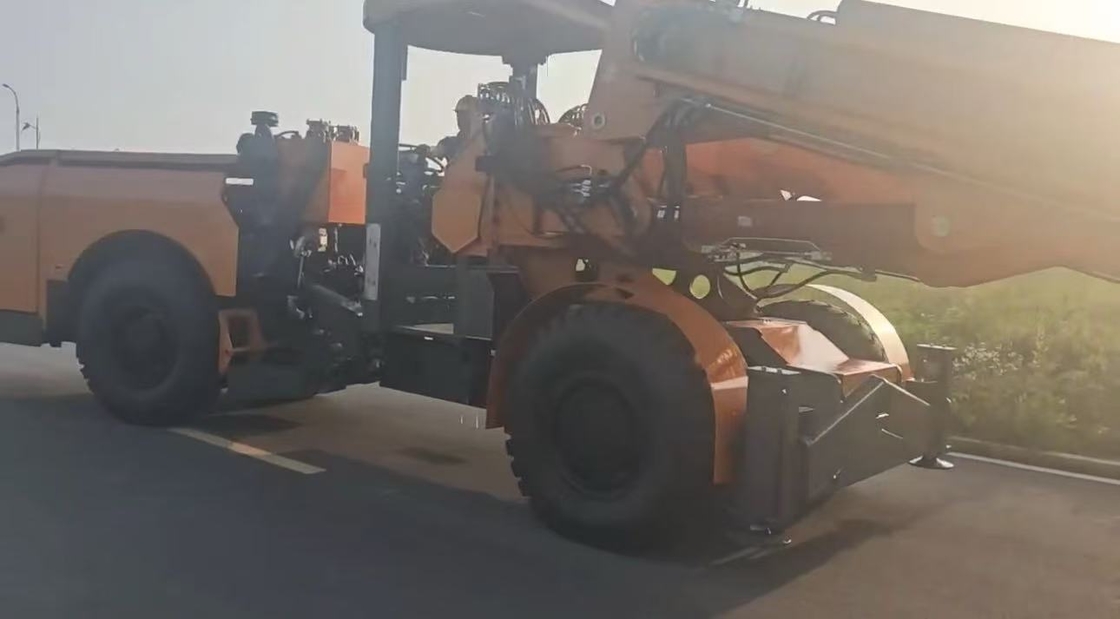

KGJ312 Arch Installation Trolley 3000Kg Load Capacity 12m Height
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | POTENTIAL / POTENCY |
| Certification: | ISO9001:2015 |
| Model Number: | KGJ312 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Unit |
|---|---|
| Price: | Negotiable |
| Packaging Details: | FR or Bulk Ship |
| Delivery Time: | 45 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 120 units per year |
|
Detail Information |
|||
| Model: | Arch Installation Robot KGJ312 | Dual Power: | Diesel & Electric |
|---|---|---|---|
| Maximum Load-bearing Capacity Of The Main Arm: | 3000Kg | Max.Operating Width: | 20m |
| Transportation Dimension (L X W X H): | 14000×3000×3450mm | Max.Operating Height: | 12m |
| Booms No.: | 3 | Maximum Load-bearing Capacity Of The Auxiliary Arm: | 1500Kg |
| Highlight: | KGJ312 Arch Installation Trolley,3000Kg Arch Installation Trolley,12m Arch Installation Trolley |
||
Product Description
| Attribute | Value |
|---|---|
| Model | Arch Installation Robot KGJ312 |
| Dual Power | Diesel & Electric |
| Maximum Load-bearing Capacity of The Main Arm | 3000Kg |
| Max.Operating Width | 20m |
| Transportation Dimension (L X W X H) | 14000×3000×3450mm |
| Max.Operating Height | 12m |
| Booms No. | 3 |
| Maximum Load-bearing Capacity of The Auxiliary Arm | 1500Kg |
Designed specifically for the China Kyrgyzstan Uzbekistan Railway tunnel requirements of minimum 5m width × 6m height excavation clearance, this arch installation trolley addresses the limitations of standard models which typically require larger operating ranges.
We've developed two specialized arch trolley construction plans optimized for single-track tunnels like those in the China Kyrgyzstan Uzbekistan Railway project, ensuring safe and efficient operation within the specified tunnel dimensions.
- Dual Power: Diesel & Electric
- Maximum Load-bearing Capacity: 3000Kg (Main Arm), 1500Kg (Auxiliary Arm)
- Operating Range: 20m width × 12m height
- Transport Dimensions: 14000×3000×3450mm
- Booms: 3-section design
- Model: Arch Installation Robot KGJ312
The KGJ312 articulated arch installation trolley is engineered for:
- Tunnel arch construction in sections as small as 5m (width) × 5m (height)
- Versatile use in inclined shafts, flat guides, cross passages, and main tunnels
- The improved KGM12300 variant supports 5m × 6m sections with self-transport capability for multiple arches
Our dedicated technical support team provides comprehensive assistance including:
- Assembly guidance and troubleshooting
- Regular maintenance and inspection services
- Product upgrades and repair services
Packaging: Components are securely packed in reinforced cardboard with protective cushioning to prevent transit damage.
Shipping: Orders processed within 1-2 business days with 3-5 day delivery (location dependent). All shipments include tracking information.
