Dual Power Arch Installation Trolley KGJ312 with 3 Booms for Tunnel Construction
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | POTENTIAL / POTENCY |
| Certification: | ISO9001:2015 |
| Model Number: | KGJ312 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Unit |
|---|---|
| Price: | Negotiable |
| Packaging Details: | FR or Bulk Ship |
| Delivery Time: | 45 working days |
| Payment Terms: | T/T,L/C |
| Supply Ability: | 120 units per year |
|
Detail Information |
|||
| Model: | Arch Installation Robot KGJ312 | Booms No.: | 3 |
|---|---|---|---|
| Maximum Load-bearing Capacity Of The Main Arm: | 3000Kg | Transportation Dimension (L X W X H): | 14000×3000×3450mm |
| Max.Operating Width: | 20m | Max.Operating Height: | 12m |
| Maximum Load-bearing Capacity Of The Auxiliary Arm: | 1500Kg | Dual Power: | Diesel & Electric |
| Highlight: | Dual power Arch Installation Trolley,3 boom Arch Installation Trolley,Tunnel construction Arch Installation Trolley |
||
Product Description

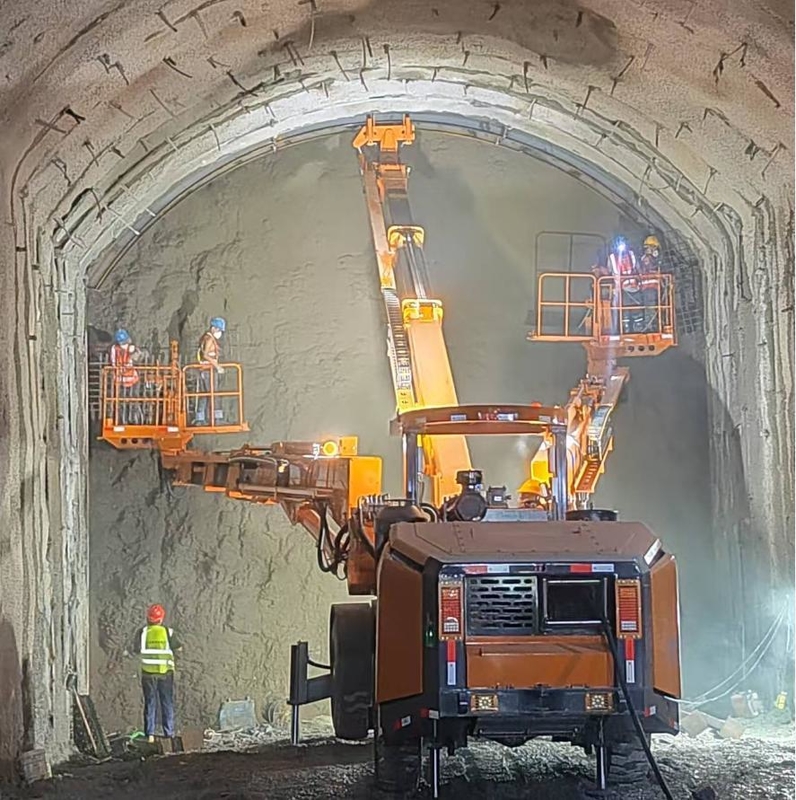

The KGJ312 Arch Installation Trolley is a specialized heavy-duty machine designed for efficient arch installation in large and medium-sized tunnel sections. Featuring dual power (diesel & electric) and three booms, this equipment offers exceptional flexibility and load-bearing capacity for demanding tunnel construction projects.
| Model | Arch Installation Robot KGJ312 |
|---|---|
| Number of Booms | 3 |
| Main Arm Capacity | 3000Kg |
| Auxiliary Arm Capacity | 1500Kg |
| Transport Dimensions | 14000×3000×3450mm |
| Max Operating Width | 20m |
| Max Operating Height | 12m |
| Power System | Dual Power (Diesel & Electric) |
- Articulated chassis design with small turning radius for excellent maneuverability in confined spaces
- Compact height profile of 3.7m for superior clearance under secondary lining trolleys
- Dual power system ensures continuous operation in various working conditions
- Three-boom configuration provides enhanced flexibility and load distribution
- Optimized for tunnel sections with minimum operating range of 5m (width) × 6m (height)
The KGJ312 arch installation trolley has been specifically engineered to meet the demanding requirements of projects like the China-Kyrgyzstan-Uzbekistan Railway tunnel. Its improved design allows for operation in sections as small as 5m × 6m while maintaining exceptional load capacity and reach.
We offer comprehensive customization services to tailor the arch installation trolley to your specific project requirements:
- Brand: POTENTIAL / POTENCY
- Model: KGJ312
- Certification: ISO9001:2015
- Minimum Order: 1 Unit
- Delivery Time: 45 working days
- Annual Capacity: 120 units
Our dedicated technical support team provides comprehensive assistance with assembly, operation, maintenance, and troubleshooting. Contact us for expert guidance to ensure optimal performance of your arch installation equipment.
