3000Kg Load-Bearing Arch Assembly Robot for Tunnel Construction KGJ312
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | POTENTIAL / POTENCY |
| Certification: | ISO9001:2015 |
| Model Number: | KGJ312 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Unit |
|---|---|
| Price: | Negotiable |
| Packaging Details: | FR or Bulk Ship |
| Delivery Time: | 45 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 120 units per year |
|
Detail Information |
|||
| Model: | Arch Installation Robot KGJ312 | Max.Operating Width: | 20m |
|---|---|---|---|
| Booms No.: | 3 | Transportation Dimension (L X W X H): | 14000×3000×3450mm |
| Max.Operating Height: | 12m | Dual Power: | Diesel & Electric |
| Maximum Load-bearing Capacity Of The Main Arm: | 3000Kg | Maximum Load-bearing Capacity Of The Auxiliary Arm: | 1500Kg |
| Highlight: | 3000kg load-bearing robot,tunnel construction arch assembly,KGJ312 arch installation trolley |
||
Product Description
| Attribute | Value |
|---|---|
| Model | Arch Installation Robot KGJ312 |
| Max.Operating Width | 20m |
| Booms No. | 3 |
| Transportation Dimension (L × W × H) | 14000×3000×3450mm |
| Max.Operating Height | 12m |
| Dual Power | Diesel & Electric |
| Maximum Load-bearing Capacity of The Main Arm | 3000Kg |
| Maximum Load-bearing Capacity of The Auxiliary Arm | 1500Kg |
Based on the design requirements, the specified minimum excavation clearance section for the tunnel of the China Kyrgyzstan Uzbekistan Railway is 5 meters (width) × 6 meters (height). The arch installation trolley is primarily utilized for arch operations in large and medium-sized tunnel sections, requiring a minimum operating range exceeding 6 meters (width) × 6 meters (height).
We propose the development of two sets of arch trolley construction plans tailored for single-track tunnels like those found on the China Kyrgyzstan Uzbekistan Railway.
- Structural Upgrade: The boom structure has been upgraded to meet the specific requirements of the China Kyrgyzstan Uzbekistan railway tunnel project.
- Passability Standards: When utilizing the back arch function, the height of the secondary lining trolley must remain at least 4.2 meters to maintain equipment passability.

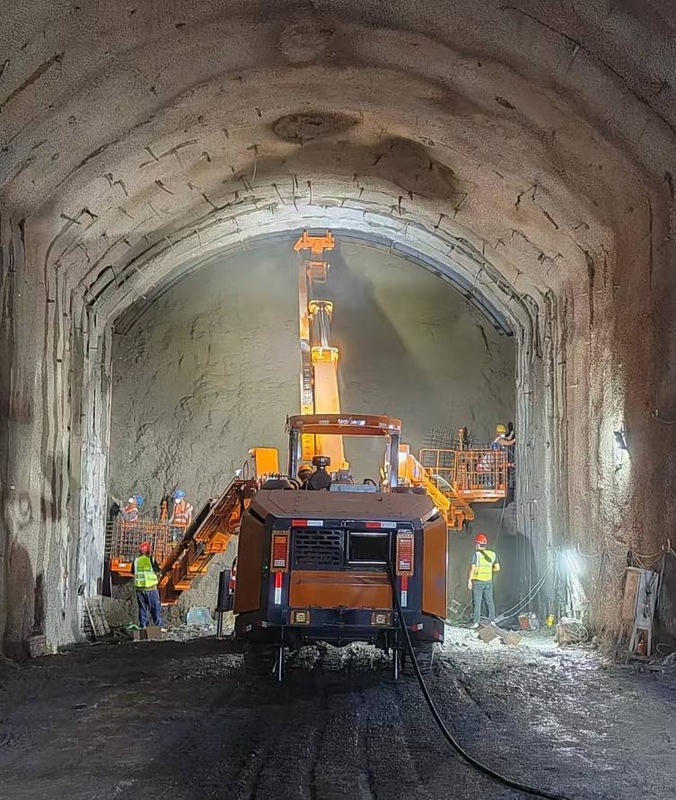

The KGJ312 articulated arch installation trolley is suitable for vertical arch operations with a minimum section of 5 meters (width) × 5 meters (height). It can be utilized in:
- Tunnel arches in various sections like inclined shafts
- Flat guides and cross passages
- Main tunnels of the China Kyrgyzstan Uzbekistan railway
Note: After enhancements, the KGM12300 is capable of vertical arch operations with a minimum section of 5 meters (width) × 6 meters (height). Either configuration can be chosen based on actual site conditions.
Our Product Technical Support team is available to assist with:
- Assembly and troubleshooting
- Maintenance and repair services
- Product upgrades and optimization
Packaging: Securely packed in sturdy cardboard with protective materials to prevent transit damage.
Shipping: Processed within 1-2 business days with standard and expedited options available. Tracking information provided upon shipment.
A: The brand name is POTENTIAL or POTENCY.
A: The model number is KGJ312.
A: Manufactured in China.
A: Certified with ISO9001:2015.
A: Accepted payment terms are T/T and L/C.
