Dual Power Arch Installation Trolley KGJ312 - 3000Kg Main Arm Capacity
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | POTENTIAL / POTENCY |
| Certification: | ISO9001:2015 |
| Model Number: | KGJ312 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Unit |
|---|---|
| Price: | Negotiable |
| Packaging Details: | FR or Bulk Ship |
| Delivery Time: | 45 working days |
| Payment Terms: | T/T,L/C |
| Supply Ability: | 120 units per year |
|
Detail Information |
|||
| Maximum Load-bearing Capacity Of The Main Arm: | 3000Kg | Dual Power: | Diesel & Electric |
|---|---|---|---|
| Max.Operating Height: | 12m | Model: | Arch Installation Robot KGJ312 |
| Transportation Dimension (L X W X H): | 14000×3000×3450mm | Booms No.: | 3 |
| Maximum Load-bearing Capacity Of The Auxiliary Arm: | 1500Kg | Max.Operating Width: | 20m |
| Highlight: | Dual power arch trolley,3000kg Arch Installation Trolley,Heavy-duty Arch Installation Trolley |
||
Product Description
| Attribute | Value |
|---|---|
| Maximum Load-bearing Capacity of The Main Arm | 3000Kg |
| Dual Power | Diesel & Electric |
| Max. Operating Height | 12m |
| Model | Arch Installation Robot KGJ312 |
| Transportation Dimension (L × W × H) | 14000×3000×3450mm |
| Booms No. | 3 |
| Maximum Load-bearing Capacity of The Auxiliary Arm | 1500Kg |
| Max. Operating Width | 20m |
Designed to meet the minimum excavation clearance section requirements of 5 meters (width) × 6 meters (height) for the China-Kyrgyzstan-Uzbekistan Railway tunnel, the KGJ312 Arch Installation Trolley excels in narrow space operations where conventional trolleys cannot function effectively.
- Articulated chassis structure provides small turning radius and exceptional flexibility for operation in confined spaces
- Compact height of 3.7 meters ensures strong passability under secondary lining trolleys
- Dual power system (Diesel & Electric) offers operational versatility in various environments
- Three-boom configuration provides optimal stability and load distribution
| Parameter | Value |
|---|---|
| Model | KGJ312 |
| Main Arm Capacity | 3000Kg |
| Auxiliary Arm Capacity | 1500Kg |
| Operating Height | 12m |
| Operating Width | 20m |
| Transport Dimensions | 14000×3000×3450mm |
| Power System | Diesel & Electric |

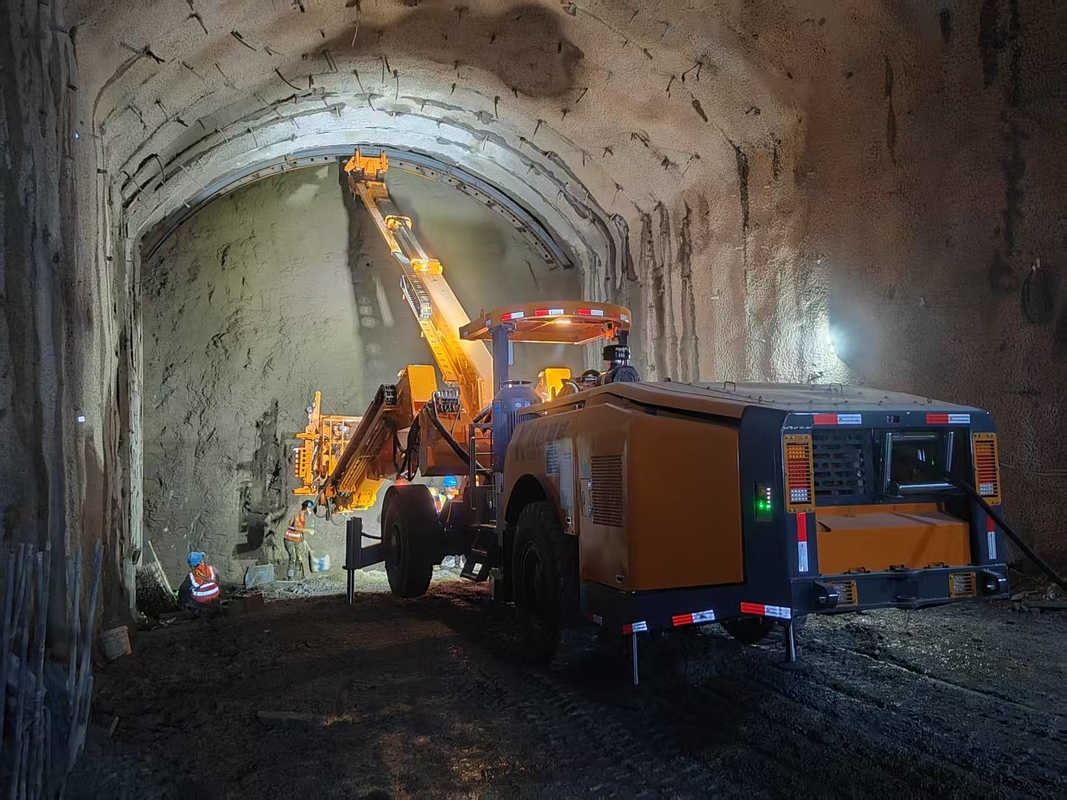

The KGJ312 articulated arch installation trolley is specifically designed for vertical arch operations in tunnel construction, particularly suited for:
- China-Kyrgyzstan-Uzbekistan railway tunnel projects
- Sections with minimum requirements of 5m width × 5m height
- Inclined shafts, flat guides, and cross passages
- Main tunnel construction operations
The improved KGM12300 model extends capability to sections with minimum width of 5 meters and height of 6 meters, with independent transport capability for multiple arches.
- Brand: POTENTIAL / POTENCY
- Certification: ISO9001:2015
- Minimum Order: 1 Unit
- Delivery Time: 45 working days
- Payment Terms: T/T, L/C
- Annual Capacity: 120 units
Our technical support team provides comprehensive assistance including:
- Installation guidance and support
- Maintenance best practices
- Operator training programs
- Performance optimization consultation
