High Capacity Arch Assembly Machine for Tunnel - 12m Height, 1500Kg Load
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | POTENTIAL / POTENCY |
| Certification: | ISO9001:2015 |
| Model Number: | KGJ312 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Unit |
|---|---|
| Price: | Negotiable |
| Packaging Details: | FR or Bulk Ship |
| Delivery Time: | 45 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 120 units per year |
|
Detail Information |
|||
| Booms No.: | 3 | Dual Power: | Diesel & Electric |
|---|---|---|---|
| Max.Operating Height: | 12m | Model: | Arch Installation Robot KGJ312 |
| Maximum Load-bearing Capacity Of The Main Arm: | 3000Kg | Maximum Load-bearing Capacity Of The Auxiliary Arm: | 1500Kg |
| Transportation Dimension (L X W X H): | 14000×3000×3450mm | Max.Operating Width: | 20m |
| Highlight: | High capacity arch machine,12m height tunnel equipment,1500kg load assembly trolley |
||
Product Description
| Attribute | Value |
|---|---|
| Booms No. | 3 |
| Dual Power | Diesel & Electric |
| Max.Operating Height | 12m |
| Model | Arch Installation Robot KGJ312 |
| Maximum Load-bearing Capacity of The Main Arm | 3000Kg |
| Maximum Load-bearing Capacity of The Auxiliary Arm | 1500Kg |
| Transportation Dimension (L × W × H) | 14000×3000×3450mm |
| Max.Operating Width | 20m |

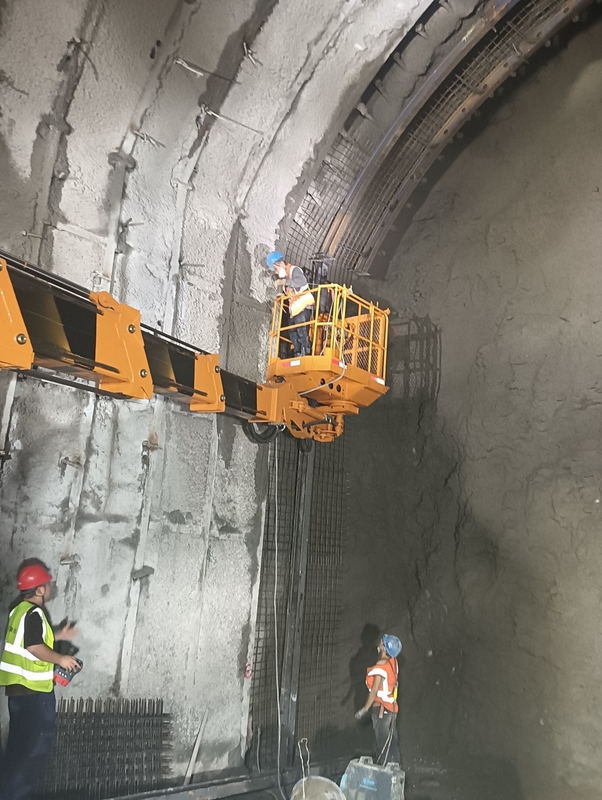

Designed to meet the specific requirements of the China-Kyrgyzstan-Uzbekistan Railway tunnel project, this high-capacity arch assembly machine features a minimum excavation clearance section of 5 meters (width) × 6 meters (height). Unlike standard arch installation trolleys that typically operate in larger tunnel sections, this specialized equipment is engineered for single-track tunnel applications.
- Articulated chassis structure with small turning radius for enhanced maneuverability in confined spaces
- Compact overall height of 3.7 meters ensures compatibility with secondary lining trolleys
- Modified boom structure specifically designed for China-Kyrgyzstan-Uzbekistan railway tunnel specifications
- Requires secondary lining trolley height ≥4.2 meters when utilizing back arch function
- Capable of self-transporting multiple Unit A arches
| Model | Arch Installation Robot KGJ312 |
| Booms No. | 3 |
| Dual Power | Diesel & Electric |
| Transportation Dimensions | 14000×3000×3450mm |
| Max. Operating Width | 20m |
| Main Arm Load Capacity | 3000Kg |
| Auxiliary Arm Load Capacity | 1500Kg |
| Max. Operating Height | 12m |
The improved KGM12300 model meets the minimum section requirement of 5m (width) × 6m (height) for vertical arch operations. Two construction solutions are available for selection based on actual site conditions of the China-Kyrgyzstan-Uzbekistan railway tunnel project.
Our dedicated Technical Support team provides comprehensive assistance for all aspects of the Arch Installation Trolley, including:
- Assembly guidance and troubleshooting
- Maintenance recommendations
- Customized training sessions
- On-site technical assistance
- Tailored solutions for specific project requirements
Packaging: Each Arch Installation Trolley is securely packaged in reinforced cardboard with protective foam to ensure damage-free transportation.
Shipping: Orders are processed within 1-2 business days with standard and expedited shipping options available. Customers receive tracking information upon shipment.
