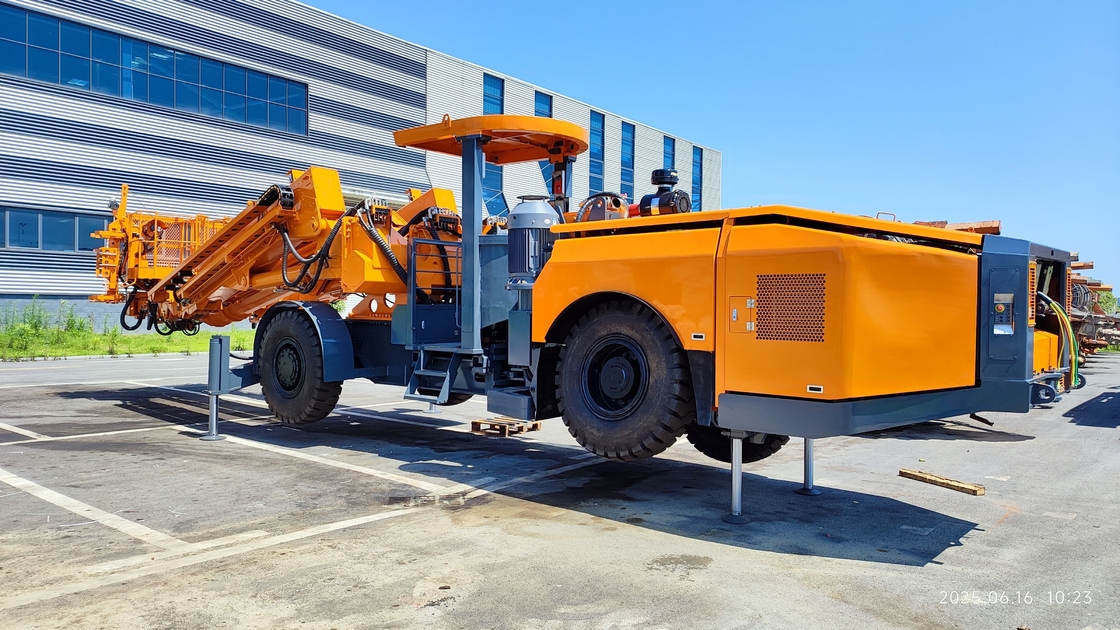

Smooth Transportation Arch Installation Robot KGJ312 with 20m Max Operating Width
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | POTENTIAL / POTENCY |
| Certification: | ISO9001:2015 |
| Model Number: | KGJ312 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Unit |
|---|---|
| Price: | Negotiable |
| Packaging Details: | FR or Bulk Ship |
| Delivery Time: | 45 working days |
| Payment Terms: | T/T,L/C |
| Supply Ability: | 120 units per year |
|
Detail Information |
|||
| Maximum Load-bearing Capacity Of The Auxiliary Arm: | 1500Kg | Max.Operating Height: | 12m |
|---|---|---|---|
| Booms No.: | 3 | Model: | Arch Installation Robot KGJ312 |
| Maximum Load-bearing Capacity Of The Main Arm: | 3000Kg | Dual Power: | Diesel & Electric |
| Transportation Dimension (L X W X H): | 14000×3000×3450mm | Max.Operating Width: | 20m |
| Highlight: | Smooth Transportation Arch installation robot,KGJ312 Arch Installation Robot |
||
Product Description
Smooth Transportation Arch Installation Robot KGJ312 with 20m Max Operating Width
Product Overview
The KGJ312 Arch Installation Robot is engineered for efficient tunnel arch construction with a maximum operating width of 20m. Designed specifically for the China-Kyrgyzstan-Uzbekistan Railway tunnel requirements, it excels in narrow clearance sections as small as 5m (width) × 6m (height).
Key Specifications
| Attribute | Value |
|---|---|
| Maximum Load-bearing Capacity (Main Arm) | 3000Kg |
| Maximum Load-bearing Capacity (Auxiliary Arm) | 1500Kg |
| Max. Operating Height | 12m |
| Max. Operating Width | 20m |
| Booms Number | 3 |
| Transportation Dimensions (L × W × H) | 14000 × 3000 × 3450mm |
| Power Options | Dual Power (Diesel & Electric) |
Product Advantages
- Articulated chassis design provides exceptional maneuverability with a small turning radius
- Compact height profile of 3.7m ensures excellent clearance for secondary lining trolleys
- Dual power system offers operational flexibility in various environments
- Specifically designed for narrow tunnel sections as small as 5m × 6m
Note: This model does not include back arch functionality - arches must be transported separately to the working face.
Application Scenarios
The KGJ312 is engineered for versatile tunnel construction applications:
- China-Kyrgyzstan-Uzbekistan Railway tunnel projects
- Inclined shafts and flat guide construction
- Cross passages and main tunnel sections
- Minimum operational clearance of 5m (width) × 5m (height)
Customization Options
Brand: POTENTIAL / POTENCY
Model Number: KGJ312
Certification: ISO9001:2015
Minimum Order Quantity: 1 Unit
Delivery Time: 45 working days
Payment Terms: T/T, L/C
Annual Production Capacity: 120 units
Support & Services
Our technical support team provides comprehensive assistance including:
- Assembly guidance and troubleshooting
- Maintenance recommendations
- Product customization consultation
- Installation support
Packaging & Shipping
The Arch Installation Trolley is securely packaged with protective materials and shipped in sturdy containers. Standard shipping includes:
- Method: Standard Ground Shipping
- Estimated Delivery: 5-7 business days
- Shipping Cost: Free
