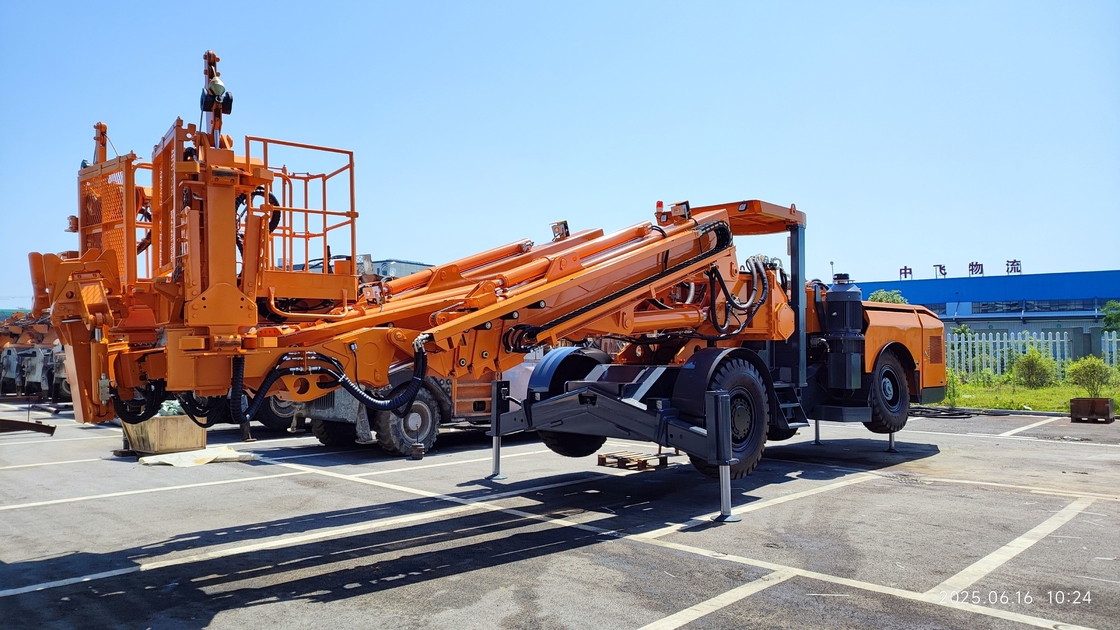

3-Boom Arch Installation Trolley KGJ312 with 3000Kg Main Arm Capacity
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | POTENTIAL / POTENCY |
| Certification: | ISO9001:2015 |
| Model Number: | KGJ312 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Unit |
|---|---|
| Price: | Negotiable |
| Packaging Details: | FR or Bulk Ship |
| Delivery Time: | 45 working days |
| Payment Terms: | T/T,L/C |
| Supply Ability: | 120 units per year |
|
Detail Information |
|||
| Booms No.: | 3 | Dual Power: | Diesel & Electric |
|---|---|---|---|
| Maximum Load-bearing Capacity Of The Auxiliary Arm: | 1500Kg | Maximum Load-bearing Capacity Of The Main Arm: | 3000Kg |
| Transportation Dimension (L X W X H): | 14000×3000×3450mm | Model: | Arch Installation Robot KGJ312 |
| Max.Operating Width: | 20m | Max.Operating Height: | 12m |
| Highlight: | 3-boom Arch Installation Trolley,3000kg Arch Installation Trolley,heavy-duty Arch Installation Trolley |
||
Product Description
Specialized arch installation trolley designed for tunnel construction with 3 booms, dual power system (Diesel & Electric), and exceptional load-bearing capacity up to 3000Kg on the main arm.
| Attribute | Value |
|---|---|
| Booms No. | 3 |
| Dual Power | Diesel & Electric |
| Maximum Load-bearing Capacity of The Auxiliary Arm | 1500Kg |
| Maximum Load-bearing Capacity of The Main Arm | 3000Kg |
| Transportation Dimension (L × W × H) | 14000×3000×3450mm |
| Model | Arch Installation Robot KGJ312 |
| Max.Operating Width | 20m |
| Max.Operating Height | 12m |
- Articulated chassis structure for small turning radius and enhanced flexibility in narrow spaces
- Compact 3.7m height for excellent passability under secondary lining trolleys
- Specially designed boom structure for China-Kyrgyzstan-Uzbekistan railway tunnel requirements
- Dual power system (Diesel & Electric) for versatile operation
- High load-bearing capacity (3000Kg main arm, 1500Kg auxiliary arm)
Model: Arch Installation Robot KGJ312
Operating Range: Up to 20m width × 12m height
Transport Dimensions: 14000×3000×3450mm (L×W×H)
Power System: Dual Diesel & Electric operation
Designed specifically for tunnel arch construction in various sections including:
- China-Kyrgyzstan-Uzbekistan railway tunnel projects
- Inclined shafts and flat guides
- Cross passages and main tunnels
- Minimum operational section of 5m (width) × 5m (height)
Note: For sections requiring 5m × 6m operation, modified version (KGM12300) is available with self-carrying arch capability.
| Option | Details |
|---|---|
| Brand | POTENTIAL / POTENCY |
| Certification | ISO9001:2015 |
| Minimum Order | 1 Unit |
| Delivery Time | 45 working days |
| Annual Capacity | 120 units/year |
Comprehensive technical support including:
- Assembly guidance and troubleshooting
- Regular maintenance programs
- Repair services and product upgrades
- Ongoing operational support
Packaging: Protective wrapping with all necessary components for assembly
Shipping: Reliable transportation with tracking information provided
Options: FR or Bulk Ship available
POTENTIAL / POTENCY
KGJ312
China
ISO9001:2015 certified
T/T (Telegraphic Transfer) and L/C (Letter of Credit)
