2000Kg Maximum Load-bearing Capacity Arch Installation Carrier with Dual Power of Diesel Electric
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | POTENTIAL / POTENCY |
| Certification: | ISO9001:2015 |
| Model Number: | KGM12200SG |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Unit |
|---|---|
| Price: | Negotiable |
| Packaging Details: | FR or Bulk Ship |
| Delivery Time: | 45 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 120 units per year |
|
Detail Information |
|||
| Dual Power: | Diesel & Electric | Model: | Arch Installation Robot KGM12200SG |
|---|---|---|---|
| Min.Operating Width: | 12m | Max.Operating Width: | 15m |
| Minimum Turning Radius: | Inner 3.0/Outer 7.5 | Maximum Load-bearing Capacity Of The Auxiliary Arm: | 2000Kg |
| Total Weight: | 29t | Transportation Dimension (L X W X H): | 11000×2800×4300mm |
| Highlight: | 2000kg load-bearing arch trolley,dual power diesel electric carrier,heavy-duty arch installation trolley |
||
Product Description
2000Kg Maximum Load-bearing Capacity Arch Installation Carrier with Dual Power of Diesel Electric
Product Description:

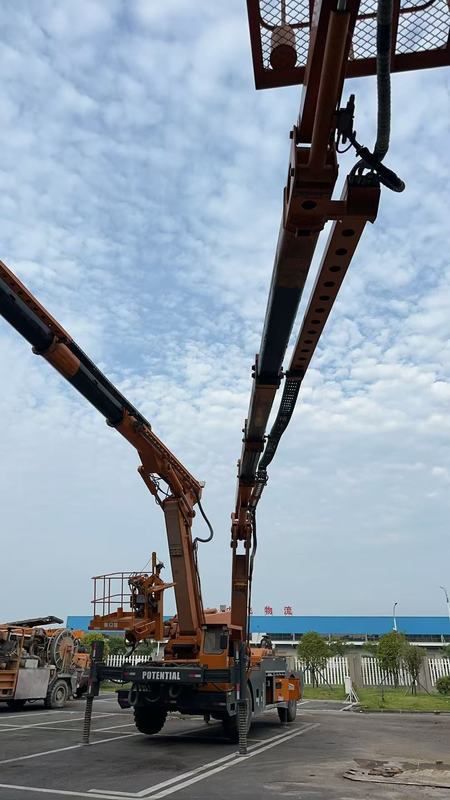

The KGM12200GS plateau type
three folding arm arch frame trolley is high-performance specialized equipment developed by Changsha Keda Intelligent Equipment Co., Ltd. for high-altitude, low oxygen environment, and complex geological tunnel construction.
Equipped with a high-altitude dedicated engine and hydraulic system, it can operate stably in low temperature and low oxygen environments above 3500 meters. The hydraulic system adopts low-temperature anticoagulant hydraulic oil and an intelligent temperature control module to ensure smooth operation in extreme environments.
Equipped with a patented protective shield descent system, it can quickly deploy the protective shield and activate the descent device in case of sudden rockfall at the top of the tunnel, ensuring the safe evacuation of personnel. Equipped with multiple safety mechanisms such as arm collision warning, overload protection, and attitude limit.
Features:
2. Precise control of arch posture
By using tilt sensors and PID control (patented technology), real-time compensation is provided for arch tilt caused by uneven excavation surfaces, ensuring that arch installation meets design parameters (horizontal error ≤± 1 °, vertical error ≤± 0.5 °).
Avoiding manual measurement errors and significantly improving the quality of initial support.
3. Reduce temporary support and manual intervention
The traditional three-step construction requires frequent installation of scaffolding or temporary platforms, while the KGM12200GS can be flexibly positioned through the boom and directly operated at high altitude, reducing auxiliary processes.
Operators only need 1-2 people (traditional methods require 6-8 people), reducing safety risks and labor costs.
4. High synergy with the three-step method
Match the equipment operation rhythm with the three step excavation cycle:
- After excavating the upper steps, quickly install the arch frame;
- When following up on the middle and lower steps, synchronize the side wall support;
- During the construction phase of the inverted arch, the arm frame is retracted to make way for space and avoid equipment occupation.
Support joint operation with self-propelled inverted arch wharf to achieve support closure lining flow construction.
Technical Parameters:
| Max. Operating Width | 15m |
| Min. Operating Width | 12m |
| Minimum Turning Radius | Inner 3.0/Outer 7.5 |
| Transportation Dimension (L X W X H) | 11000×2800×4300mm |
| Model | Arch Installation Robot KGM12200SG |
| Dual Power | Diesel & Electric |
| Maximum Load-bearing Capacity of The Auxiliary Arm | 2000Kg |
| Total Weight | 29t |
Applications:
The KGM12200GS plateau type three folding arm arch trolley is designed to cater to the needs of three-step construction with a focus on efficiency, accuracy, and safety. This is achieved through an intelligent control system, multi-level arm flexibility, and a specific design tailored for plateau environments.
It is ideally suited for use in challenging projects like western plateau tunnels and railway deep-buried tunnels. The device has been effectively utilized in various national key tunnel projects and is now recognized as a benchmark product for enhancing the mechanization level of tunnel construction.
Support and Services:
Our Product Technical Support team is dedicated to assisting you with any questions or issues you may have regarding the Arch Installation Trolley. Whether you need guidance on assembly, troubleshooting, or maintenance, our experts are here to help.
In addition to technical support, we also offer a range of services to ensure you get the most out of your Arch Installation Trolley. This includes installation assistance, training programs, and product upgrades to keep your equipment up-to-date and running smoothly.
Packing and Shipping:
Product Packaging:
The Arch Installation Trolley is carefully packaged in a sturdy cardboard box to ensure safe delivery.
Shipping:
We offer fast and reliable shipping services for the Arch Installation Trolley. Your order will be processed promptly and shipped securely to your desired location.
FAQ:
Q: What is the brand name of the Arch Installation Trolley?
A: The brand name is POTENTIAL / POTENCY.
Q: What is the model number of the Arch Installation Trolley?
A: The model number is KGM12200SG.
Q: Where is the Arch Installation Trolley manufactured?
A: The Arch Installation Trolley is manufactured in China.
Q: What certifications does the Arch Installation Trolley have?
A: The Arch Installation Trolley is certified with ISO9001:2015.
Q: What are the payment terms for purchasing the Arch Installation Trolley?
A: The payment terms are T/T and L/C.
