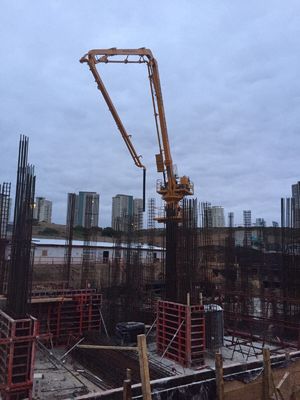

Hydraulic Driven Concrete Placing Boom
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | KEDA / POTENCY |
| Certification: | ISO9001:2015 |
| Model Number: | HG28 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Unit |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 1 Unit in 2*40'HQ |
| Delivery Time: | 45 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 120 units per year |
|
Detail Information |
|||
| Application: | Placing Concrete | Folding Type: | 3 Or 4-sections |
|---|---|---|---|
| Stationary Height: | 22.9m Or Customerized | Column Length: | 5m 0r 10m |
| Power Type: | Electric | Working Temperature: | -20℃～48℃ |
| Power: | 380V/50Hz | Max Horizontal Reach: | 27.7m |
| Highlight: | hHydraulic Driven Concrete Placing Boom,Concrete Placing Boom 27.7m |
||
Product Description

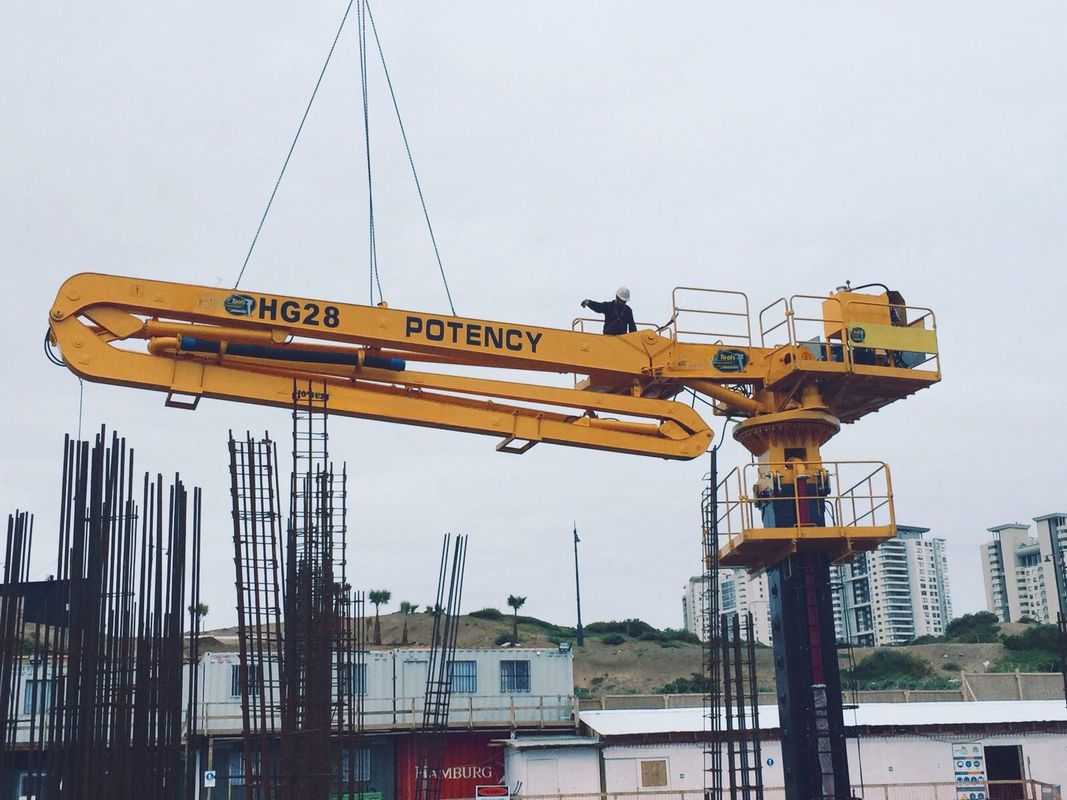

HG28 Maximize Your Work with Floor Inner Climbing Concrete Placing Boom
Product Description:
Concrete distribution poles have a wide range of applications in concrete construction. They are typically used for conveying, distributing, paving, and pouring concrete into molds. Some of the specific application areas are:
- Construction site: Fabric poles are commonly used on construction sites to spread concrete evenly into designated areas, ensuring that the concrete is of a uniform thickness and flatness.
- Bridge construction: When constructing bridges, fabric poles can transport concrete quickly and efficiently to various parts of the structure, helping to ensure the overall stability of the bridge.
- Road construction: In road construction, fabric poles can rapidly lay concrete on the road surface, improving both the efficiency and the quality of the construction work.
Features:
Technical Parameters:
| Product Attribute | Value |
| Product Name | Hydraulic Concrete Placing Boom |
| Column Length | 5m or 10m |
| Power Type | Electric |
| Folding Type | 3 or 4-sections |
| Working Temperature | -20℃～48℃ |
| Application | Placing Concrete |
| Power | 380V/50Hz |
| Stationary Height | 22.9m or Customerized |
| Max Horizontal Reach | 27.7m |
| Alternative Product Names | Concrete Distributor Boom, Concrete Boom Placer |
Applications:
One of the most significant advantages of the KEDA/POTENCY HG28 Concrete Boom Placer is its climbing feature. The Climbing Concrete Placing Boom can easily climb up the building with the help of a hydraulic system, eliminating the need for additional cranes or scaffolding. This feature makes it suitable for high-rise construction sites and saves time and cost significantly.
The Concrete Placing Boom is easy to operate and can be controlled remotely, ensuring accurate placement of concrete. Its high-power motor system of 380V/50Hz guarantees maximum efficiency, even in extreme weather conditions. The product is certified with ISO9001:2015 and offers reliable performance, making it a preferred choice for many construction companies.
The KEDA/POTENCY HG28 Concrete Boom Placer comes with a column length of 5m or 10m and can be customized according to the specific requirements of the construction project. Its stationary height of 22.9m also ensures that it can be used for projects that require concrete to be placed at great heights.
The Concrete Placing Boom is supplied in 2*40'HQ packaging and has a minimum order quantity of 1 unit. The delivery time for the product is 45 working days, and the payment terms can be either T/T or L/C. The product's supply ability is 120 units per year, ensuring that construction companies can easily acquire the product for their projects.
In conclusion, the KEDA/POTENCY HG28 Concrete Boom Placer is an excellent product for construction companies that require precise and efficient placement of concrete. Its climbing feature, high-power motor system, and customizable column length make it suitable for a wide range of construction projects. If you are looking for a reliable Concrete Placing Boom, the KEDA/POTENCY HG28 is an excellent choice.
Customization:
Looking for a customized Hydraulic Concrete Placing Boom that matches your specific needs? Look no further than KEDA/POTENCY's HG28 model. Our Concrete Distributor Boom is equipped with 3 or 4-sections folding type, 380V/50Hz power supply, and 22.9m stationary height (or customized to your requirements) for versatile concrete placement.
Our Concrete Machinery is manufactured in CHINA and certified with ISO9001:2015. With a minimum order quantity of 1 unit, our prices are negotiable, and we offer flexible payment terms of T/T or L/C. We can deliver your orders within 45 working days and supply up to 120 units per year.
Each unit is packed in 2*40'HQ packaging details and comes with either 5m or 10m column length. Our Power Type is Electric, ensuring consistent and efficient performance.
Support and Services:
Our technical support and services for the Concrete Placing Boom product include:
- Installation assistance and guidance
- Product training and education for operators and maintenance personnel
- Regular maintenance and repair services to ensure optimal product performance and longevity
- 24/7 remote technical support and troubleshooting
- On-site technical support and troubleshooting as needed
- Replacement parts and accessories for the Concrete Placing Boom product
