11Kw Power Output Concrete Placing Boom 28MPa Hydraulic System Pressure
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | KEDA / POTENCY |
| Certification: | ISO9001:2015 |
| Model Number: | HG28 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Unit |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 1 Unit in 2*40'HQ |
| Delivery Time: | 45 Working Days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 120 Units Per Year |
|
Detail Information |
|||
| Product Category: | Concrete Placing Boom | Boom Sections: | 3 Or 4 |
|---|---|---|---|
| Power Output: | 11Kw | Placing Radius: | 27.7m |
| Hydraulic System Pressure: | 28MPa | Column Length: | 5m Or 10m |
| Stationary Height: | 22.9m | Working Temperature: | -20℃～48℃ |
| Highlight: | 11Kw Concrete Placing Boom,Concrete Placing Boom 28MPa |
||
Product Description
Revolutionize Your Construction Efficiency with Our State-of-the-Art HG28 Concrete Placing Boom
Product Description:
The application of concrete distribution poles in concrete construction is very extensive, mainly used for conveying, distributing, paving, and pouring concrete into molds, including:

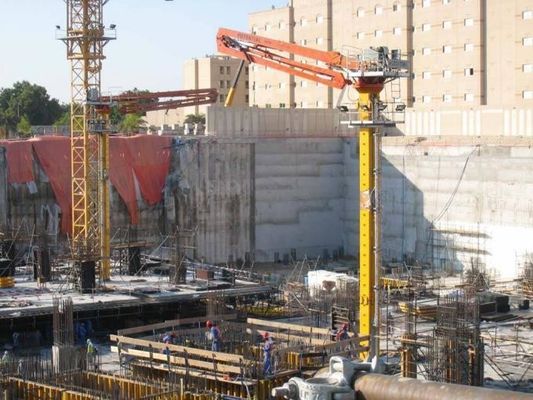

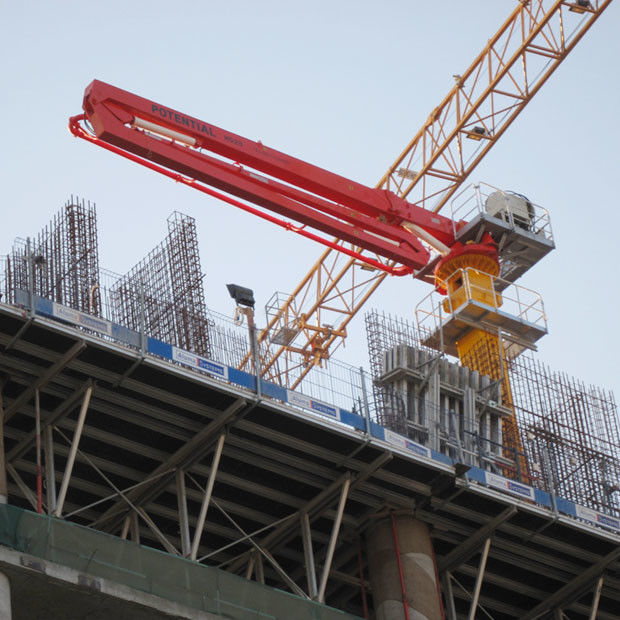

Construction site: On construction sites, fabric poles are used to evenly spread concrete into designated construction areas, ensuring the thickness and flatness of the concrete.
Bridge construction: In bridge construction, fabric poles can quickly and efficiently transport concrete to various parts of the bridge, ensuring the structural stability of the bridge.
Road construction: In road construction, fabric poles can quickly lay concrete on the road surface, improving construction efficiency and quality.
Features
■ The machine is fully hydraulic driven and can be slewed 360°.
■ The balance valve and solenoid directional valve are products of well-known brand.
■ The main electric components are from Omron or Schneider.
■ The modes of operation: Wireless remote control and cable remote control.
■ Column Design, easy to couple
Specifications
| Model | HG28 | |
| Boom Section | 3 | |
| Delivery pipe dimension (outside diameter × thickness) (mm × mm) | Φ133×4 | |
| Delivery hose dimension (inside diameter × length) (″×mm) | 5″×3000 | |
| Radius of placing boom (m) | 27.7 | |
| Stationary height (to the joint between the end of the boom and Swivel table) (m) | 22.9 | |
| Hydraulic foldable arm sections | 1st section | 10.5m |
| 2nd section | 9.2m | |
| 3rd section | 8.0m | |
| 4th section | N/A | |
| Boom articulation (°) | 1st section | －4.2～82.5 |
| 2nd section | 0°～180° | |
| 3rd section | 0°～180° | |
| 4th section | N/A | |
| Slewing range (°) | 360 | |
| Power of motor (kW) | 11 | |
| Pressure of hydraulic system (MPa) | 28 | |
| Type of hydraulic oil | ESSO NUTO H46 or H32 | |
| Mode of operation | 1. cable remote control | |
| 2. radio remote control | ||
| Power | 380V/50Hz | |
| working temperature | -20℃～48℃ |
|
Packing and Shipping:
Product Packaging:
The Concrete Placing Boom will be securely packed in a wooden crate to ensure its safety during transportation. The crate will be labeled with the product name, dimensions, weight, and handling instructions.
Product Shipping:
The Concrete Placing Boom will be shipped via a freight carrier to the customer's designated address. The shipping cost will be calculated based on the weight and dimensions of the crate, as well as the destination address. The customer will be provided with a tracking number to monitor the shipment's progress. It is important to note that the customer is responsible for unloading the product upon delivery.
