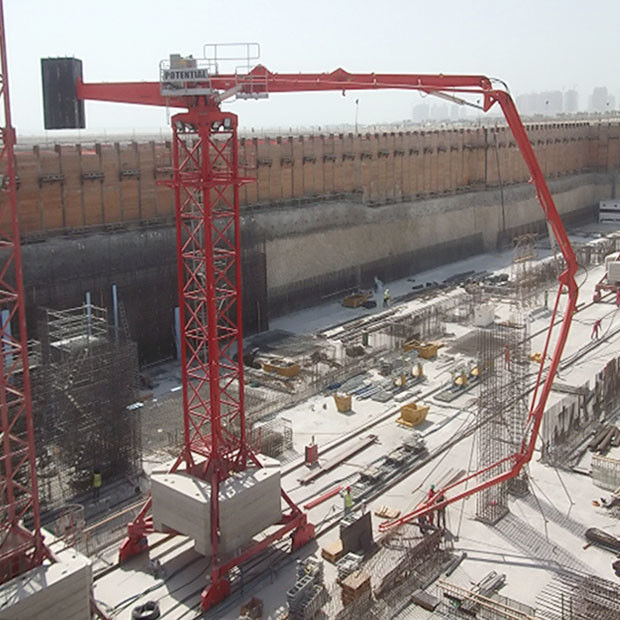

Tower Type Concrete Placing Boom Stepless Speed Control Accurate Boom Positioning
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | KEDA / POTENCY |
| Certification: | ISO9001:2015 |
| Model Number: | HG36 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Unit |
|---|---|
| Price: | Negotiable |

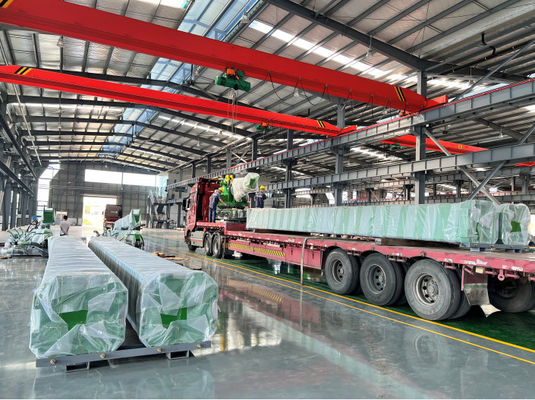

| Packaging Details: | 1 Unit in 4*40'HQ |
| Delivery Time: | 45 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 120 units per year |
|
Detail Information |
|||
| Stationary Height: | 40m Or Customerized | Folding Type: | 4-sections |
|---|---|---|---|
| Power Type: | Electric | Application: | Placing Concrete |
| Max Horizontal Reach: | 36m | Working Temperature: | -20℃～48℃ |
| Power: | 380V/50Hz | Mast Section: | 1.8*1.8*2.8m Or 2*2*3m |
| Highlight: | Tower Type Concrete Placing Boom,Accurate Concrete Placing Boom,Accurate Concrete Tower Boom |
||
Product Description
Concrete Placing Boom HG36 Tower Type Special Structure Construction Stepless Speed Control Minimized Impact Force Accurate Boom Positioning
Applications
Designed for special structure construction such as concrete / cement / aluminum silo, nuclear power plant, TV tower, etc. It can be anchored on structures and grows up with the structure like how top-kit tower crane climbs
|
Features
|
|
| 1, |
Designed for special structure construction such as concrete / cement / aluminum silo, nuclear power plant, TV tower, etc. It can be anchored on structures and grows up with the structure like how top-kit tower crane climbs.
|
| 2, |
Stepless speed control brought by proportional valve unit. Minimized impact force. Stable operation. Smooth starting and stopping. More accurate boom positioning.
|
| 3, |
Fast coupling connectors equipped at all detachable ends, automatically shut all outlets when assembling and disassembling.
|
| 4, |
Hydraulic & electric parts from Germany, Italy and Japan.
|
| 5, | The modes of operation: Wireless remote control and cable remote control |
Specifications
| Model | HG36 | |
| Boom Section | 4 | |
| Delivery pipe dimension (outside diameter × thickness) (mm × mm) | Φ133×4 | |
| Delivery hose dimension (inside diameter × length) (″×mm) | 5″×3000 | |
| Radius of placing boom (m) | 36 | |
| Stationary height (to the joint between the end of the boom and Swivel table) (m) | 40.0 (customized) | |
| Hydraulic foldable arm sections | 1st section | 11.6m |
| 2nd section | 8.2m | |
| 3rd section | 8.0m | |
| 4th section | 7.9m | |
| Boom articulation (°) | 1st section | －4.2～82.5 |
| 2nd section | 0°～180° | |
| 3rd section | 0°～180° | |
| 4th section | N/A | |
| Slewing range (°) | 360 | |
| Power of motor (kW) | 15 | |
| Pressure of hydraulic system (MPa) | 31.5 | |
| Type of hydraulic oil | ESSO NUTO H46 or H32 | |
| Interval of climbing frame (m) | Climbing | N/A |
| Placing concrete | N/A | |
| Resting | N/A | |
| Mode of operation | 1. cable remote control | |
| 2. radio remote control | ||
| Power | 380V/50Hz | |
| Wind speed | Placing concrete | ≤60 km/h |
| Climbing | ≤28 km/h | |
| Working temperature |
-20℃～48℃ |
|
