Electrical System Spider Concrete Pump Placing Boom 5.5Kw 17m Placing Radius
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | KEDA / POTENCY |
| Certification: | ISO9001:2015 |
| Model Number: | HG17 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Unit |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 2 Units in 1*40'HQ |
| Delivery Time: | 45 Working Days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 120 Units Per Year |
|
Detail Information |
|||
| Product Category: | Spider Concrete Placing Boom | Boom Sections: | 3 |
|---|---|---|---|
| Power Output: | 5.5Kw | Placing Radius: | 17m |
| Hydraulic System Pressure: | 20MPa | Column Length: | 5m Or 10m |
| Stationary Height: | 2.9m | Mode Of Operation: | Cable Remote Control |
| Highlight: | Electrical Concrete Pump Placing Boom,Spider Concrete Pump Placing Boom,Concrete Spider Boom 5.5Kw |
||
Product Description

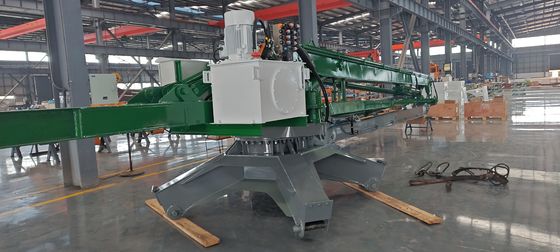

Electrical System Spider Concrete Pump Placing Boom HG17 with Easy Installation Outrigger Style
Product Description:
The application of concrete placing boom in concrete construction is very extensive, mainly used for conveying, distributing, paving, and pouring concrete into molds, including:

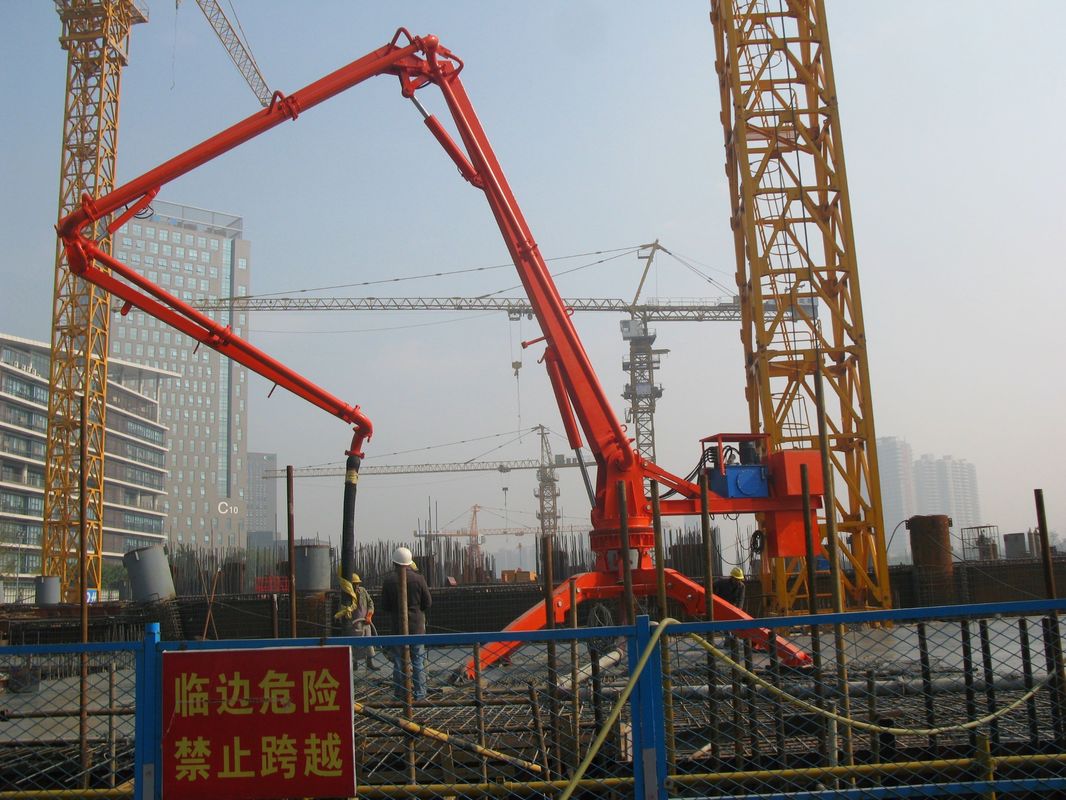

Construction site: On construction sites, concrete placing boom are used to evenly spread concrete into designated construction areas, ensuring the thickness and flatness of the concrete.
Bridge construction: In bridge construction, concrete placing boom can quickly and efficiently transport concrete to various parts of the bridge, ensuring the structural stability of the bridge.
Road construction: In road construction, concrete placing boom can quickly lay concrete on the road surface, improving construction efficiency and quality.
Features
Advanced full hydraulic drive system
The hydraulic system of HG series mobile concrete placing boom can realize 360° slewing, the balance valve and solenoid directional control valve are relatively imported from
Italian Oil control and Germany Rexroth.
Reliable electrical system
Main components of HG series concrete placing boom are imported from world famous companies such as France Schneider.
Cable & wired remote control.
Specifications
| Model | HG13 | HG15 | HG17 | |
| Structure | Outrigger Style (hydraulic foldable arm) | |||
| Boom Section | 3 | 3 | 3 | |
| Delivery pipe dimension (outside diameter × thickness) (mm × mm) | Φ133×4 | Φ133×4 | Φ133×4 | |
| Delivery hose dimension (inside diameter × length) (″×mm) | 5″×3000 | 5″×3000 | 5″×3000 | |
| Radius of placing boom (m) | 13 | 15 | 17 | |
| Stationary height (to the joint between the end of the boom and Swivel table) (m) | 2.35 | 2.7 | 2.9 | |
| Hydraulic foldable arm sections | 1st section | 3.9m | 6.0m | 6.67m |
| 2nd section | 4.5m | 5.0m | 5.73m | |
| 3rd section | 4.6m | 4.0m | 4.61m | |
| 4th section | N/A | N/A | N/A | |
| Boom articulation (°) | 1st section | －2～84.4 | －2～90 | －4～90 |
| 2nd section | 0°～176° | 0°～176° | 0°～176° | |
| 3rd section | 0°～180° | 0°～180° | 0°～180° | |
| 4th section | N/A | N/A | N/A | |
| Slewing range (°) | 360 | 360 | 360 | |
| Power of motor (Kw) | 4 | 4 | 5.5 | |
| Pressure of hydraulic system (MPa) | 20 | 20 | 20 | |
| Type of hydraulic oil | ESSO NUTO H46 | ESSO NUTO H46 | ESSO NUTO H46 | |
| Interval of climbing frame (m) | Climbing | N/A | N/A | N/A |
| Placing concrete | N/A | N/A | N/A | |
| Resting | N/A | N/A | N/A | |
| Mode of operation | 1. cable remote control | 1. cable remote control | 1. cable remote control | |
| 2. radio remote control | 2. radio remote control | 2. radio remote control | ||
| Power | 380V/50Hz | 380V/50Hz | 380V/50Hz | |
| Weight | Without counterweight | 2700kgs | 3200kgs | 4940kgs |
| Counterweight | 1500kgs | 2100kgs | 2200kgs | |
| working temperature | ﹣20～48℃ | ﹣20～48℃ | ﹣20～48℃ | |
